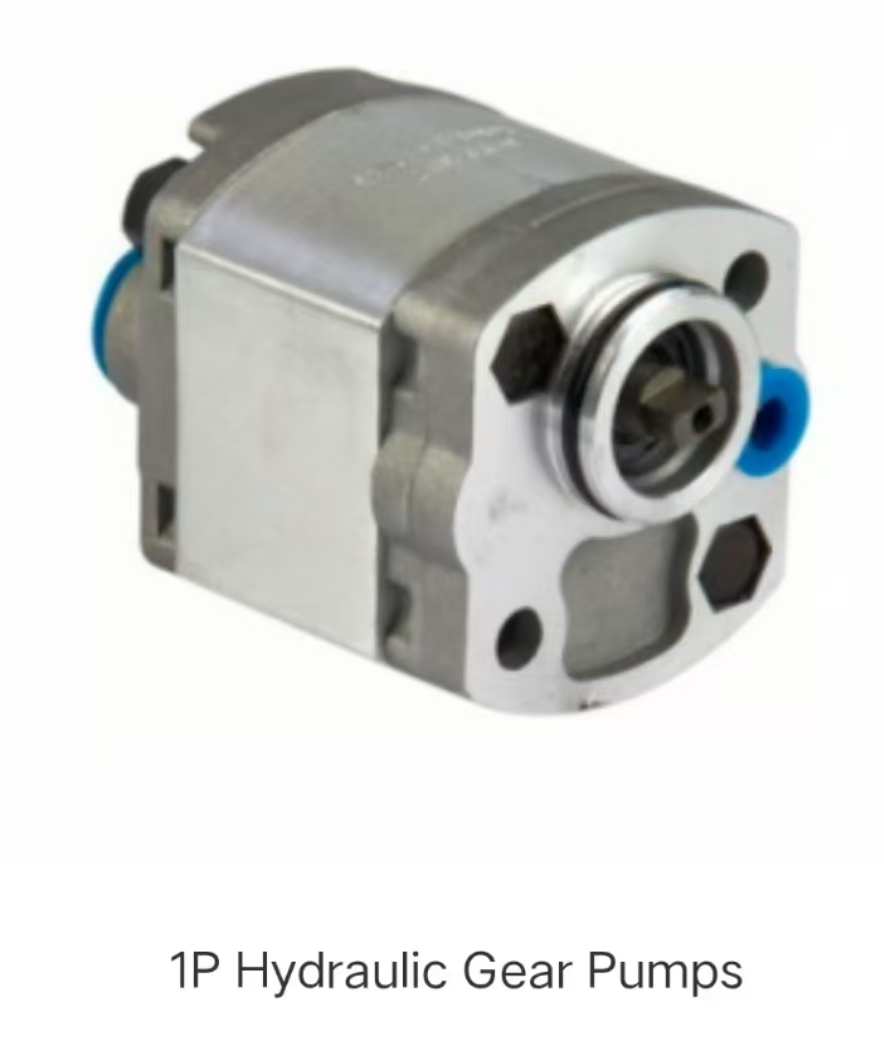

1P Hydraulic Gear Pumps
I. Definition and Basic Principle
1. Definition:
• A 1P hydraulic gear pump is a type of positive displacement pump that utilizes the meshing action of gears to transfer hydraulic fluid. The "1P" typically denotes a specific model or series designation, indicating its place within a manufacturer's product line.
2. Basic Principle:
• The pump consists of two or more intermeshing gears (usually a driving gear and a driven gear) enclosed within a housing. As the gears rotate, they create a series of sealed chambers between the gear teeth and the housing.
• Hydraulic fluid is drawn into the pump through the inlet port as the gears unmesh, creating a low-pressure area.
• As the gears continue to rotate and mesh together, the fluid is trapped in the chambers and carried around the periphery of the gears to the outlet port.
• The fluid is then discharged from the pump at a higher pressure due to the reduction in volume of the chambers as they approach the outlet.
II. Components and Structure
1. Gears:
• The gears are the primary working components of the pump. They are typically made of high-strength materials such as steel or cast iron to withstand the pressures and wear involved in hydraulic fluid transfer.
• The gears can be of different types, such as spur gears, helical gears, or herringbone gears, each with its own advantages in terms of efficiency, noise level, and load-bearing capacity.
2. Housing:
• The housing encloses the gears and provides a sealed environment for the hydraulic fluid. It is usually made of durable materials like aluminum or cast iron to ensure structural integrity and resistance to pressure and corrosion.
• The housing has inlet and outlet ports through which the hydraulic fluid enters and exits the pump.
3. Shafts:
• The gears are mounted on shafts that transmit the rotational motion from the driving source (such as an electric motor or engine) to the gears. The shafts are supported by bearings to reduce friction and ensure smooth rotation.
4. Seals and Gaskets:
• Seals and gaskets are used to prevent leakage of hydraulic fluid from the pump. They are placed at various joints and interfaces within the pump, such as between the gears and the housing, and between the housing and the shafts.
III. Performance Characteristics
1. Flow Rate:
• The flow rate of a 1P hydraulic gear pump is determined by its displacement per revolution and the rotational speed of the gears. It is typically measured in liters per minute (L/min) or gallons per minute (GPM).
• The pump can provide a relatively constant flow rate over a wide range of operating pressures, making it suitable for applications where a steady supply of hydraulic fluid is required.
2. Pressure Rating:
• The pressure rating of the pump indicates the maximum pressure it can generate. It is usually measured in bars or pounds per square inch (psi).
• 1P hydraulic gear pumps are designed to operate within a specific pressure range, and exceeding this range can lead to pump failure or damage.
3. Efficiency:
• Hydraulic gear pumps are generally less efficient than some other types of hydraulic pumps, such as vane pumps or piston pumps. However, they offer advantages in terms of simplicity, cost-effectiveness, and durability.
• The efficiency of a gear pump is affected by factors such as gear design, clearance between gears and housing, and the viscosity of the hydraulic fluid.
4. Noise Level:
• Gear pumps can generate a certain amount of noise during operation, especially at high speeds. The noise level is influenced by factors such as gear type, gear tooth profile, and the quality of the pump's construction.
IV. Advantages and Applications
1. Advantages:
• Simplicity: Gear pumps have a relatively simple design with fewer moving parts compared to some other types of hydraulic pumps, making them easier to manufacture, maintain, and repair.
• Cost-Effectiveness: They are generally less expensive than other types of hydraulic pumps, making them a popular choice for applications where cost is a significant factor.
• Durability: Gear pumps are known for their robustness and ability to withstand harsh operating conditions, including high pressures and temperatures.
• Self-Priming: Many gear pumps have the ability to self-prime, meaning they can draw hydraulic fluid into the pump without the need for an external priming mechanism.
2. Applications:
• Industrial Machinery: Used in various industrial machines such as presses, injection molding machines, and metal forming equipment to provide hydraulic power for actuation and control.
• Mobile Equipment: Found in construction machinery, agricultural equipment, and material handling vehicles to power hydraulic systems for functions like steering, lifting, and tilting.
• Automotive: Employed in automotive applications such as power steering systems, transmission pumps, and lubrication systems.
• Marine: Used in marine vessels for hydraulic systems related to steering, winches, and deck machinery.
V. Selection and Maintenance
1. Selection:
• When selecting a 1P hydraulic gear pump, consider factors such as the required flow rate, pressure rating, fluid compatibility, and operating environment.
• Ensure that the pump's specifications match the requirements of the hydraulic system it will be used in.
2. Maintenance:
• Regular maintenance is essential to ensure the longevity and reliable operation of the pump. This includes checking and replacing seals and gaskets as needed, monitoring fluid levels and quality, and inspecting the pump for signs of wear or damage.
• Follow the manufacturer's recommended maintenance schedule and procedures to keep the pump in optimal condition.
