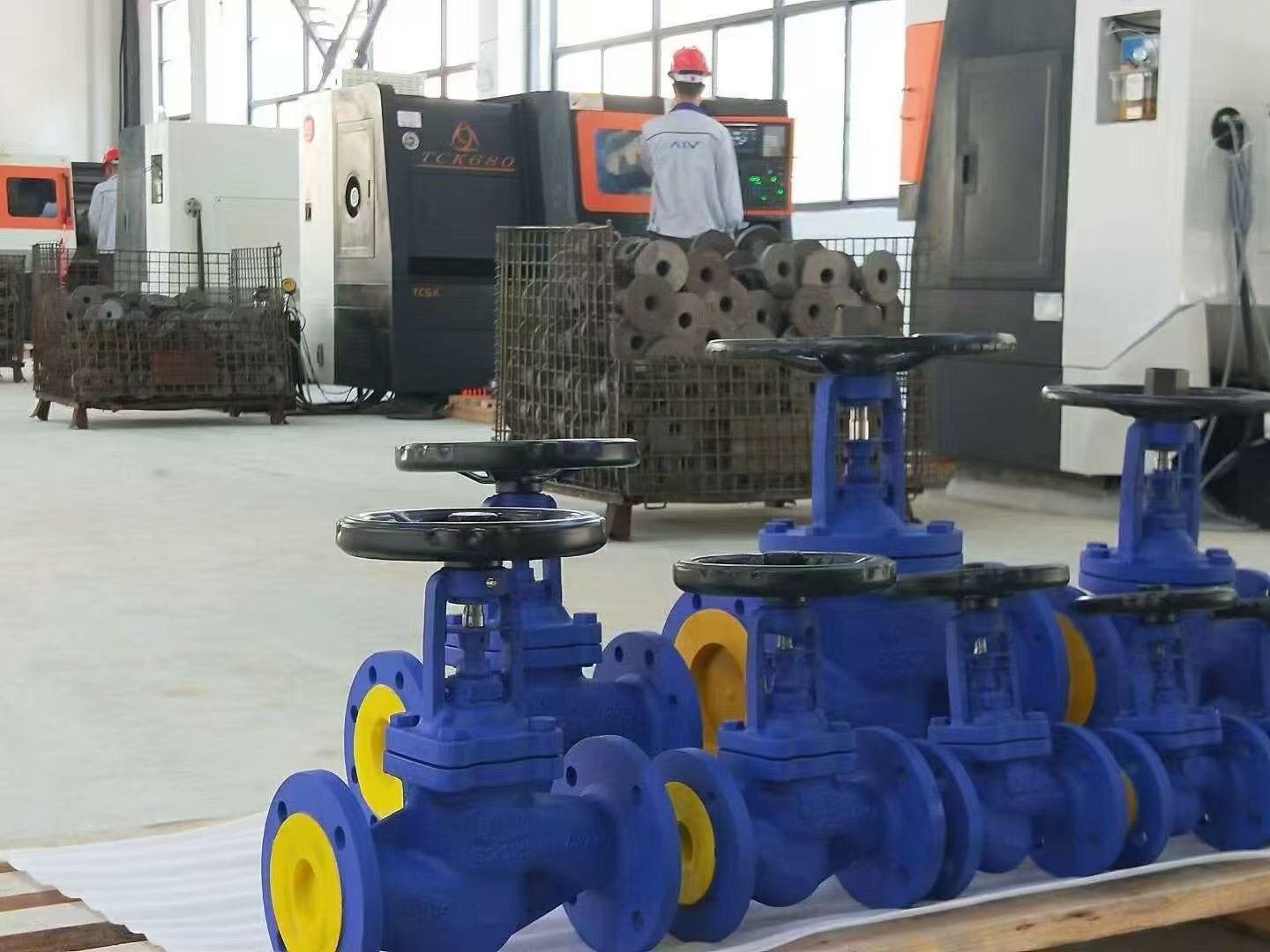

The Bellows Seal Globe Valve is a specially designed globe valve that incorporates a metal bellows sealing component on the basis of traditional globe valves. This structure offers significant advantages, making it the preferred choice for applications demanding high sealing performance, safety, and reliability. Its main advantages include:
1. Exceptional Zero-Leakage Sealing:
• Core Advantage: The metal bellows, as the primary dynamic sealing element, completely isolates the valve stem from the process media.
• Elimination of Packing Leakage: It resolves the most common leakage point (at the valve stem packing) in traditional packed-seal globe valves.
• Dual Sealing: Typically designed with the bellows serving as the primary seal (primary level), and the valve stem packing as a backup seal (secondary level). Even if the bellows fail (which is extremely rare), the packing provides a second barrier, significantly enhancing sealing reliability.
• Zero External Leakage: It effectively prevents toxic, hazardous, flammable, explosive, valuable, or high-purity media from leaking into the environment through the valve stem, meeting the strictest environmental and safety standards.
2. Enhanced Safety and Environmental Protection:
• By eliminating the risk of valve stem leakage, it significantly reduces risks to operators and the environment, especially when handling highly toxic, carcinogenic, strongly corrosive, radioactive, or environmentally polluting media.
• It complies with stringent international environmental regulations and safety norms (such as TA-Luft, ISO 15848, SHELL SPE 77/312, etc.).
3. Reduced Maintenance Requirements and Costs:
• No Frequent Adjustment or Packing Replacement: Traditional packing wears out, ages, and dries up, requiring regular tightening or replacement. Bellows seals are virtually maintenance-free.
• Extended Service Life: The bellows and valve stem are not subject to media corrosion and wear, and the valve stem experiences no packing friction, resulting in a longer service life.
• Lower Total Cost of Ownership: Although the initial investment may be slightly higher, the significantly reduced maintenance costs, leakage losses, and production downtime risks result in lower long-term operating costs.
4. Improved Operational Reliability:
• No Risk of Sticking: Valve stem movement occurs within the bellows, unaffected by external environmental factors (such as dust, crystalline substances, or freezing), avoiding the sticking issues that may arise from media crystallization or particulate matter in traditional packing.
• Suitable for Special Operating Conditions: Under harsh operating conditions such as high temperature, low temperature, vacuum, or frequent pressure cycling, the bellows sealing performance remains more stable and reliable.
5. Suitable for High-Purity and Sterile Requirements:
• The bellows seal avoids issues of particulate shedding or microbial growth that may occur with packing.
• It is widely used in industries with extremely high requirements for media purity or sterility, such as food, beverage, pharmaceutical, biotechnology, and semiconductor manufacturing.
6. Reduced Media Loss:
• It prevents the leakage of valuable media (such as rare gases, high-purity chemicals, catalysts) through the valve stem, saving costs.
7. Compact Structure (in Some Designs):
• Compared to some valves that require additional leakage protection measures (such as diaphragm valves), the bellows seal globe valve has a relatively compact structure.
In summary, the core advantage of the Bellows Seal Globe Valve lies in its revolutionary "metal bellows dynamic sealing" design, which fundamentally addresses the biggest pain point of traditional valves—valve stem leakage.It provides near-perfect external sealing (zero external leakage), significantly enhancing safety, environmental protection, reliability, and maintenance-free operation. It is particularly suitable for handling hazardous, valuable, high-purity media and in applications with stringent leakage requirements. Although the initial cost may be higher, the long-term benefits typically far outweigh the cost differential.
When selecting, it is essential to choose the appropriate bellows material (typically 316L or higher-grade stainless steel), thickness, number of layers, and number of corrugations based on specific operating conditions (pressure, temperature, media characteristics, cycle times, etc.) to ensure its service life and reliability.
