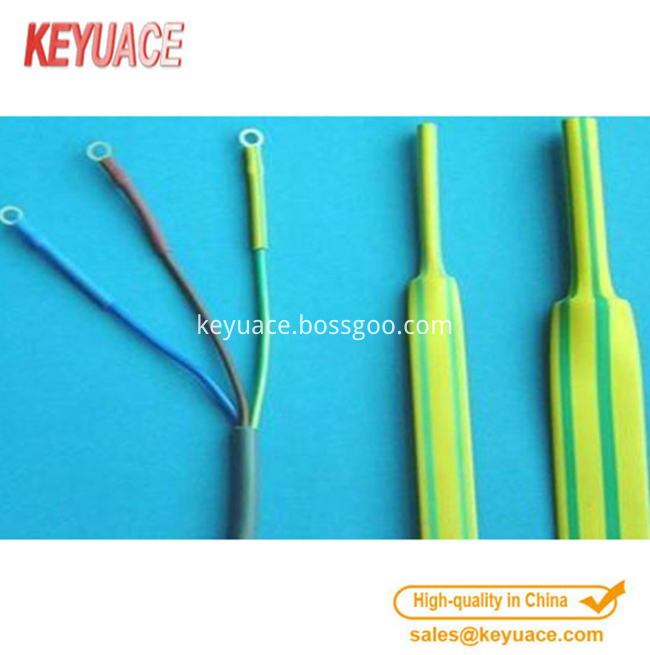

KY-YG Yellow-Green Heat-Shrinkable Sleeve

1. Product Overview

The KY-YG Heat-Shrinkable Sleeve features a two-color co-extruded yellow-green striped design. Made from eco-friendly polyolefin and modified via irradiation, it combines flexibility, high flame resistance, and vivid two-color markings for enhanced visibility. Ideal for color-coding applications, it simplifies identifying wires, special cables, busbars, or pipelines in electrical, industrial, and construction systems.

2. Core Advantages

Advantage	Details
Soft & Flexible	Made from modified polyolefin for easy installation on complex - shaped components.
High Flame Resistance	Passes UL 224 VW - 1 flame test -critical for fire - safe environments.
Vivid Color Coding	Bright yellow-green stripes enable fast visual identification (e.g., phase/voltage distinction in electrical systems).
Dual Shrink Ratios	-2:1 shrinkage: For general insulation/color - coding. -3:1 shrinkage: For enhanced sealing in harsh environments.
Wide Temperature Range	Operates from - 55℃ to 125C; starts shrinking at 70℃, fully shrinks at 125℃.

3. Operating Specifications

Parameter	Specification
Continuous Working Temp	-55℃~125℃
Minimum Start Shrink Temp	70℃
Minimum Full Shrink Temp	125℃

4. Product Sizes & Specifications

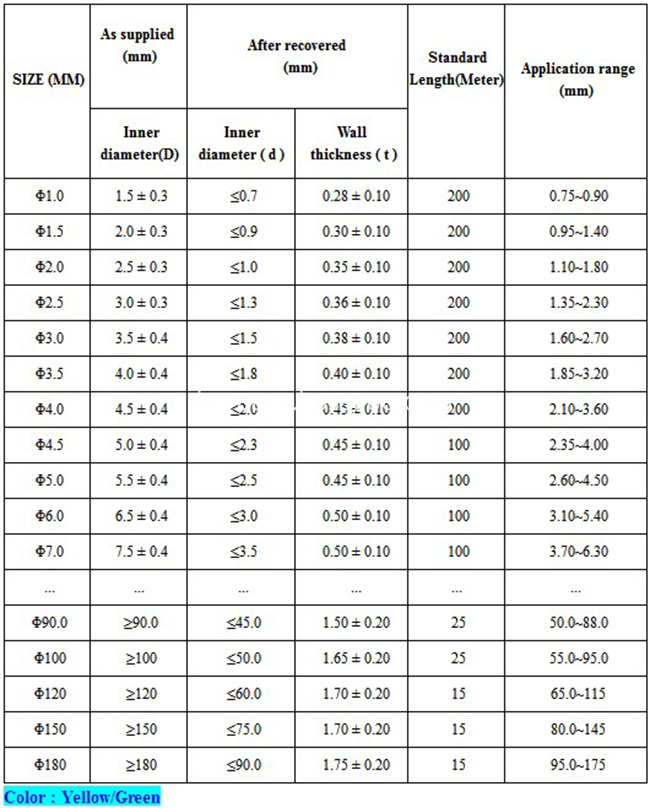

4.1 KY-YG-2X (2:1 Shrink Ratio)

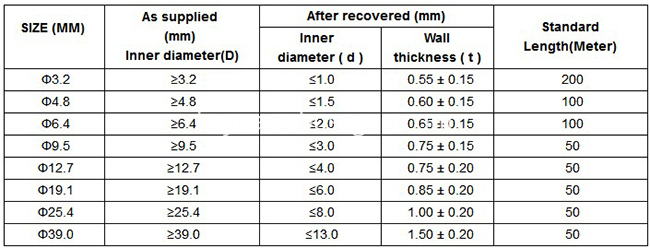

4.2 KY-YG-3X (3:1 Shrink Ratio)

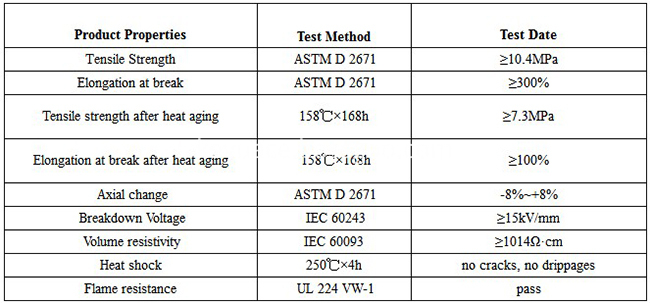

5. Technical Performance Data

6. Application Scenarios

Industry/Field	Use Case
Electrical Systems	Color-codes wires/busbars (e.g., phase/voltage distinction) for quick maintenance.
Industrial Pipelines	Marks pipes (fluid/gas) with yellow - green stripes for easy identification.
Aerospace/Automotive	Identifies critical cables in low - light areas (e.g., engine bays) with vivid colors.
Renewable Energy	Codes wiring in solar/wind systems to simplify installation/inspection.

7. Packaging & Delivery

Packing: Available in rolls, cut-to-length pieces, or custom packaging (per request).
Shipping: Supports global delivery via express (DHL/UPS/FedEx), sea, or air freight.

8. Certifications

Complies with ROHS (halogen-free, eco-friendly polyolefin).
Passes UL 224 VW-1 flame resistance test.

9. Sample Policy

In-stock samples: Shipped within 1–2 business days (common sizes: Φ2.0–Φ10.0 for KY-YG-2X; Φ3.2–Φ25.4 for KY-YG-3X).
Custom samples: Prepared in 3–7 business days (for non-standard sizes/colors).
Terms: Free for limited quantities; freight charged to the receiver.

10. Why Choose This Sleeve?

Dual-Color Visibility: Yellow-green stripes ensure instant visual recognition, minimizing errors in maintenance/installation.
Versatile Shrink Ratios: 2:1 for general use, 3:1 for harsh environments—adapts to diverse needs.
Rigorous Compliance: Meets ASTM/IEC/UL standards for reliability and safety.
Eco-Friendly & Flexible: Sustainable materials + ease of use = long-term durability.

11. Factory Capabilities & About Us

We specialize in heat-shrinkable materials with advanced two-color co-extrusion and irradiation technologies. Our factory ensures consistent quality for industries like electrical, aerospace, and renewable energy. We deliver custom solutions and reliable products globally.
