HUS-GR MIL-SPEC High FR Adhesive-Lined Dual-Wall Tube

5 month ago
10 0
Product details

Military Standard High Flame Heat Shrink Tubing

Product Description

Polyolefin Heavy Wall Heat Shrink Tubing, Heavy Duty Tubing high flame resistant polyolefin PE tube which is extruded with flame-resistant EVA hot melt adhesive, Construction Heavy Duty Tubing is made in accordance with military standard. High Flame Black Heat Shrink Tubing, Heavy Wall Heat Shrink Tubing it can suffer against mechanical strain,also has superior sealing capacity against water, corrosion, damp, etc. So High Temp Wire Insulation Sleeve, Flexible Heavy Duty Tubing it`s widely used in all kinds off wire harnesses, ship equipment wires, cables and metal pipe.

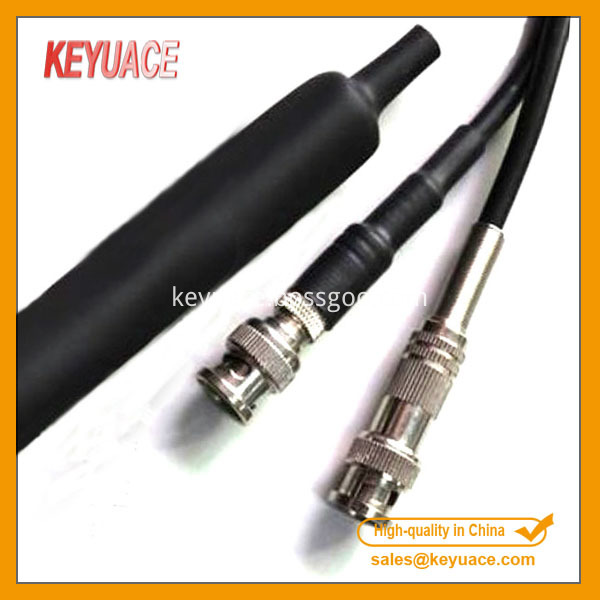

heavy duty heat shrink tubing

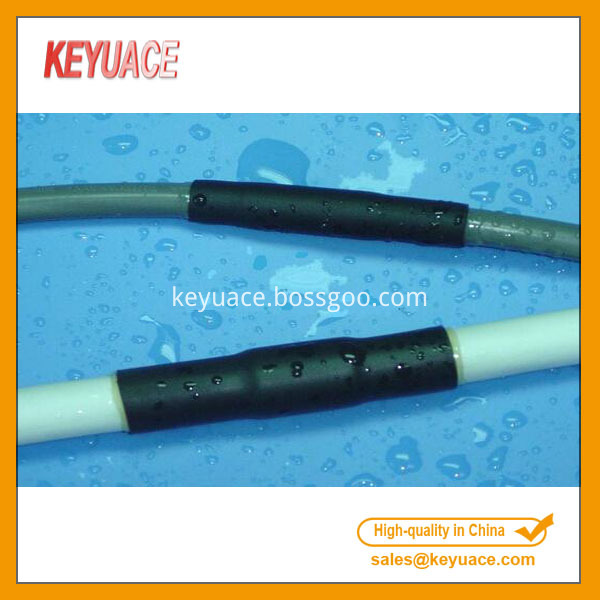

Military Standard Heat Shrink Tube

Features & Benefits:
1, Meet the military standard ASM-DTL-23053/4
2, Flame-resistant inner layer, anti-UV
3, Heat shrink ratio: 3:1, 4:1
4, Waterproof, Damp-proof, anti-corrosion, prevent gas leakage

Operating Indexes:
1, First shrink temp.: 70 degrees C
2, Final shrink temp.: 125 degrees C
3, Working temp.:-45 degrees C~135 degrees C
Up to standard: Approvals
 Meet military standard ASM-DTL-23053/4, UL224, 600V

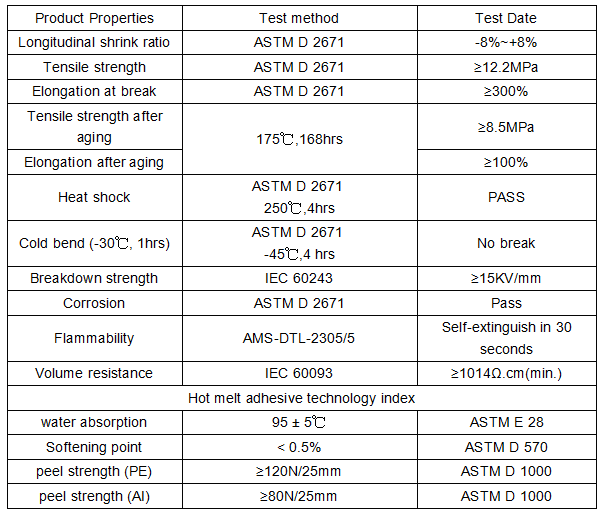

Product Description

HUS-GR

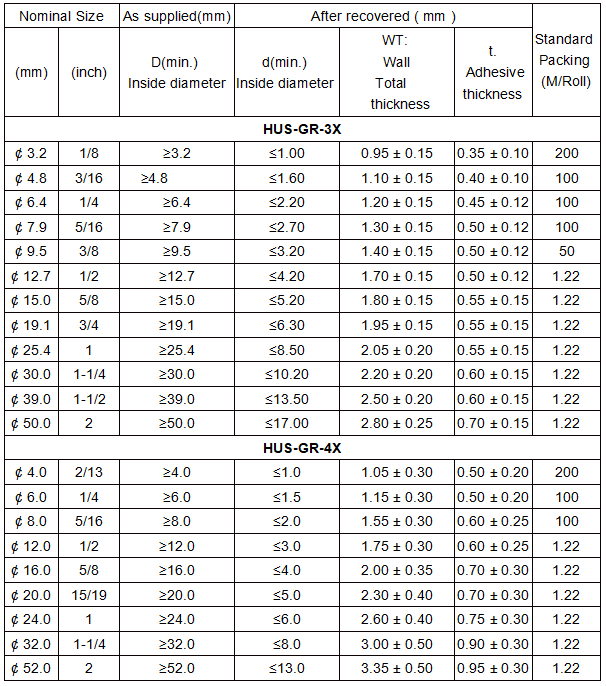

Product Dimensions

HUS-GR

Product View

Factory Show

Certification

Company Logistics
