KY-PVC Heat Shrink Tube

1. Product Introduction

KY - PVC Heat Shrink Tube is crafted from PVC material. Endowed with excellent electrical insulation properties, it serves as an ideal solution for electronic components and packaging materials. Whether it's aluminum electrolytic capacitors, batteries, or inductors, this heat - shrink tube offers reliable protection and insulation.

2. Product Features

Low - temperature shrinkage: Enables smooth and efficient shrinking operations even at relatively low temperatures, facilitating easy handling during installation.
Excellent electrical insulation: Provides a secure barrier against electrical leakage, ensuring the safety and stability of electronic devices.
Flame retardant: Minimizes the risk of fire hazards, adding an extra layer of safety in various application scenarios.
Temperature resistance: Can withstand temperatures up to 105°C, maintaining its performance in moderately high - temperature environments.

3. Product Specifications

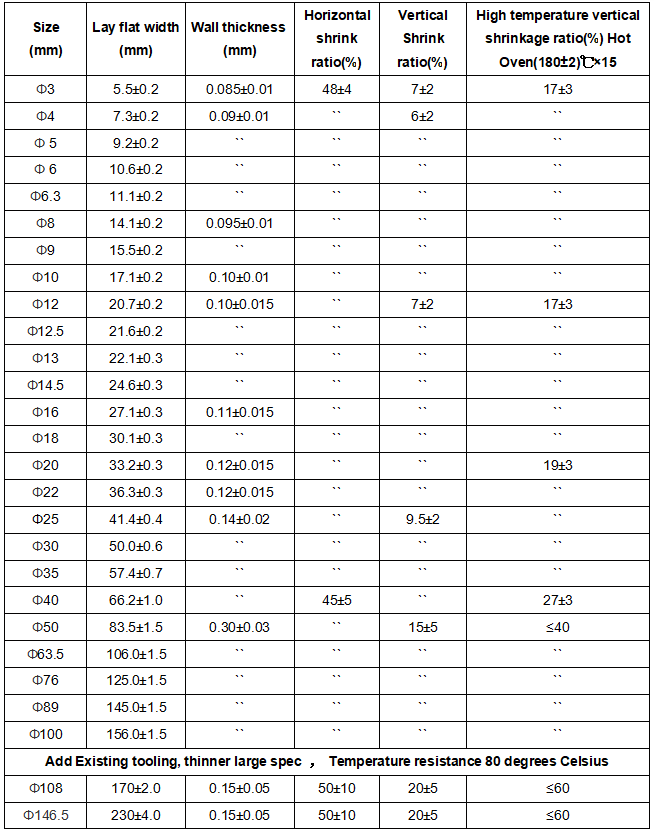

Size and Associated Parameters

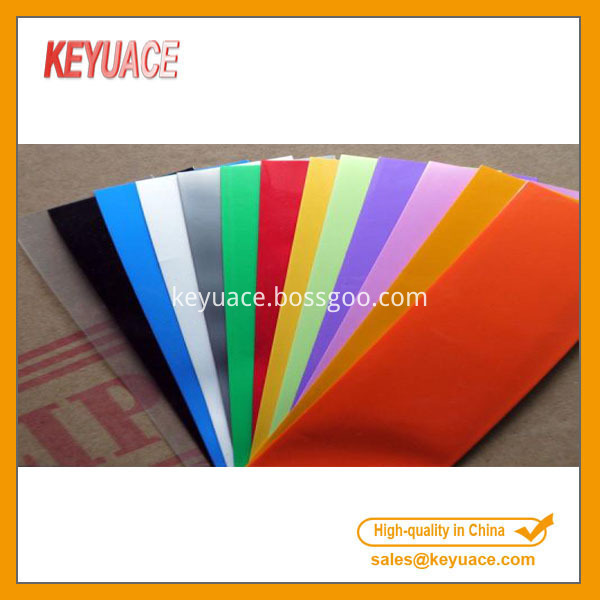

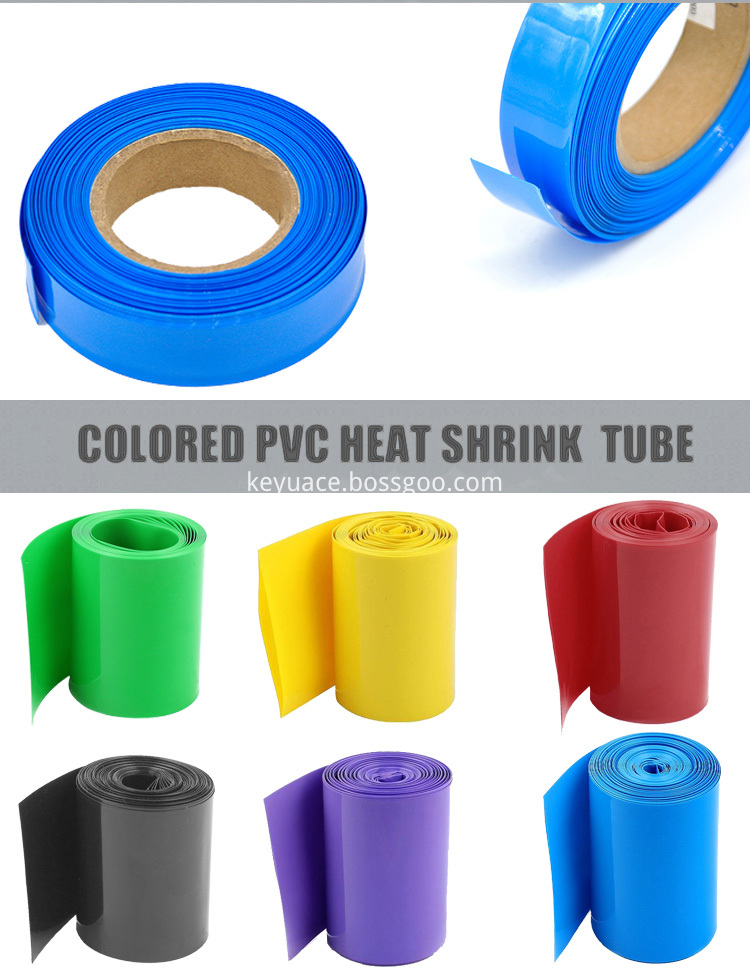

Available in colors: Black, White, Red, Blue, Yellow, Green, Transparent. Custom - sized cutting services are provided based on customer requirements.

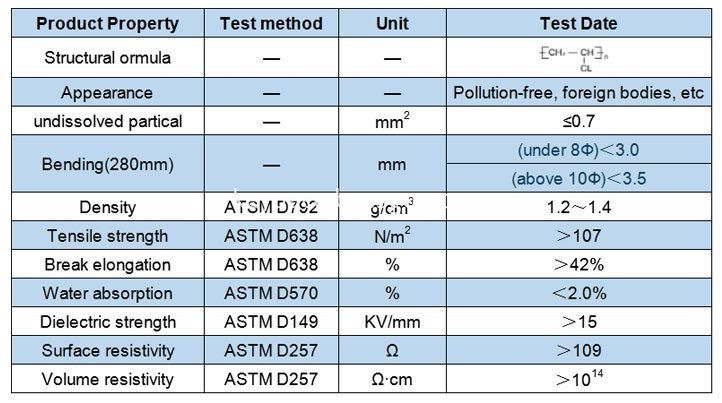

4. Technical Performance

KY - PVC Heat Shrink Tube has undergone rigorous testing to meet high - quality standards:

5. Product Application and Features

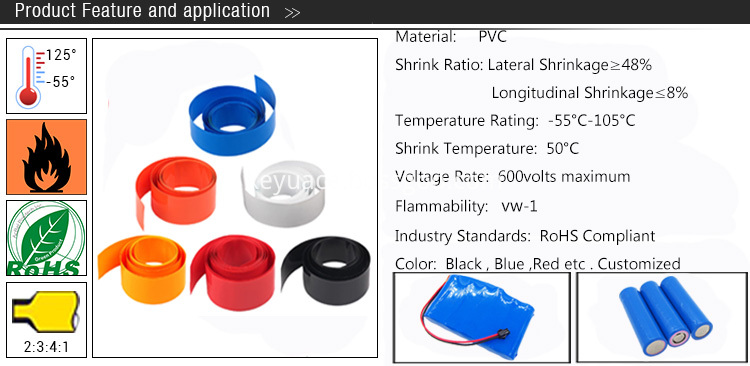

Material and General Characteristics

Material: Constructed from PVC.
Shrink Ratio: Lateral Shrinkage: ≤48%; Longitudinal Shrinkage: ≤8%
Temperature Rating: - 55°C - 105°C
Shrink Temperature: 50°C
Voltage Rating: 5000volts maximum
Flammability: VW - 1
Industry Standards: Compliant with RoHS

Application Scenarios

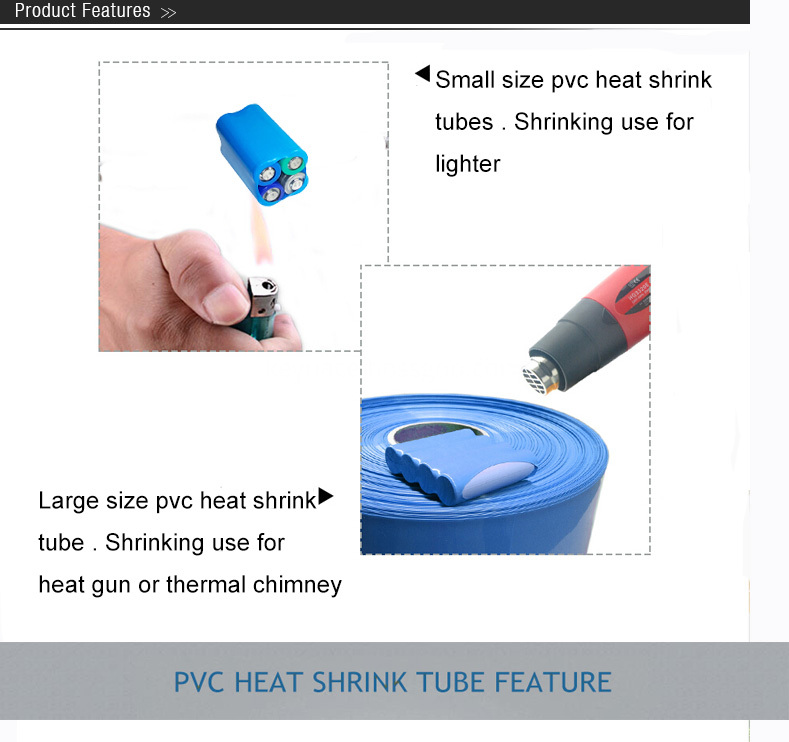

Small - size PVC heat shrink tubes are perfect for shrinking operations related to lighters.
Large - size PVC heat shrink tubes can be used with heat guns or thermal chimneys for various industrial applications.

6. Company Strength

Factory and Production

We are a manufacturer specializing in heat - shrinkable materials. Our factory is equipped with advanced production facilities such as extrusion lines, expansion lines, irradiation plants, expanding machines, and cutting pipe areas. We implement strict quality control throughout the production process, from the selection of raw materials to the delivery of finished products, ensuring the high quality and consistency of our products.

Certifications

Our products adhere to international standards such as ROHS, REACH, CSA, HALOGEN FREE, UL, and DIN5510, and we have obtained relevant certification documents. These certifications are a testament to our product quality and compliance, providing customers with additional assurance.

7. Packing, Delivery, and Sample Policy

Packing & Delivery

Packing: Available in paper rolls, plastic bags, carton boxes, or customized packing according to customer requirements.
Shipping: We support transportation by express (such as DHL, UPS, FedEx), sea, or air.

Sample Policy

If samples are available in stock, we will arrange sample delivery immediately within approximately 1 - 2 days.
If samples are not available in stock, the sample preparation usually takes 5 - 7 days.
(1) Samples are normally provided free of charge, but the quantity is subject to our confirmation. (2) Please let us know in advance your commonly used international express courier (e.g., TNT, UPS, DHL, etc.). (3) Freight payable at destination.

8. Special Note

To ensure the best performance of the product, please store it in an environment below 30°C, avoiding direct sunlight or proximity to heat sources.
