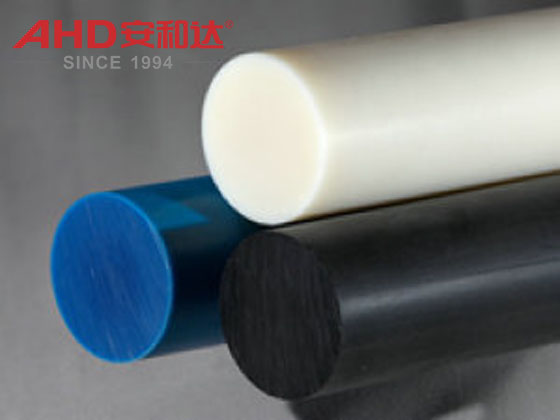

Extruded PA6 Nylon Plastic Rod Round Rod
Nylon 6: This material has the most superior comprehensive properties, including mechanical strength, stiffness, toughness, mechanical shock absorption and wear resistance.
These characteristics, coupled with good electrical insulation and chemical resistance, make nylon 6 a "universal grade" material for the manufacture of mechanical structural parts and maintainable parts.
Main Properties of PA6 Rod:
Size:
DIA: 8--400mm
Standard Length: 1M or 2M (other length can be customized)
Brand Name: AHD
Remarks: We provide both pa6 rod and machining service and cutting service
Nylon Rod
Physical Datasheet:
| Item | Nylon PA6 Polyamide rod |
| Type | extruded |
| Diameter | 15--200mm |
| Length | 1000mm or 2000mm |
| Color | White,black, blue |
| Proportion | 1.15g/cm³ |
| Heat resistance (continuous) | 85℃ |
| Heat resistance (short-term) | 160℃ |
| Melting point | 220℃ |
| Glass transition temperature | _ |
| Linear thermal expansion coefficient (average 23~100℃) |
90×10-6m/(m.k) |
| Average 23--150℃ | 105×10-6m/(m.k) |
| Flammability(UI94) | HB |
| Tensile modulus of elasticity | 3250MPa |
| Dipping into water at 23℃ for 24h | 0.86 |
| Dipping into water at 23℃ | 0.09 |
| Bending tensile stress/ Tensile stress off shock | 76/- Mpa |
| Breaking tensile strain | >50% |
| Compressive stress of normal strain-1%/2% | 24/46 MPa |
| Pendulum gap impact test | 5.5 KJ/m2 |
| Friction coefficient | _ |
| Rockwell hardness | M85 |
| Dielectric strength | 25 kv/mm |
| Volume resistance | ≥10 14Ω×cm |
| Surface resistance | ≥10 13Ω |
| Relative dielectric constant-100HZ/1MHz | 3.9/3.3 |
| Critical tracking index(CTI) | 600 |
| Bonding capacity | + |
| Food contact | + |
| Acid resistance | - |
| Alkali resistance | + |
| Carbonated water resistance | +/0 |
| Aromatic compound resistance | +/0 |
| Ketone resistance | + |
PA6 Nylon Rod
