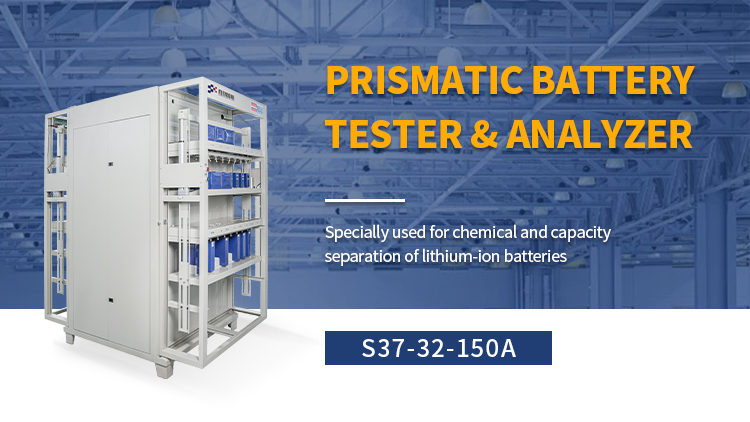

S37-32-150A Power Battery Formation Cabinet
Description of Equipment Function
Named as a Power Battery Formation Cabinet. It is a high-performance tester used for the formation and grading tests of lithium-ion batteries. The cabinet has profound testing functions for parameters of voltage, capacity, and can accurately classify batteries into different grades for analysis, based on the test results, while uploading and sharing data of the battery in real time. The equipment employs advanced 4 channel programmable constant current and constant voltage control modules. Each battery comprises independent constant current and constant voltage sources, guaranteeing that stability and shock-free testing process take place. The Battery Formation Equipment embodies strong functions, performs supporting computer connection and control of the battery, and it can save every test data and curves while also providing operators manual operation functions, in consideration of varied scenario criteria. The equipment has real time detection and display functions concerning battery status; if any fault and abnormality occurs, the channel will automatically stop working, and the indicator light will be turned on in simple guarantee measure. The graphical interface is intuitive and easy to operate; it is capable of real time display each battery’s voltage, current, time and capacity data. The graphical user interface utilizes different colors to quickly indicate to the operator the working status of the battery and abnormal conditions (in the case of a fault), significantly increasing operational convenience while ensuring overall efficiency.
Core Advantages of Product
Accuracy and Stability: Voltage and current accuracy reaches ±(0.5‰ of reading + 0.5‰ full scale), ensuring high accuracy of test data.
Intelligent Operation and Data Management: Supporting computer connection and control, while saving all test data and curves, the equipment also provides manual operation functions - in consideration of varied scenario criteria.
Energy Efficient Energy Feedback: During the discharge process of the battery the bidirectional power supply converts DC into AC and feeds AC directly into the factory AC distribution network, with a significant energy saving effect from energy fed back into the factory.

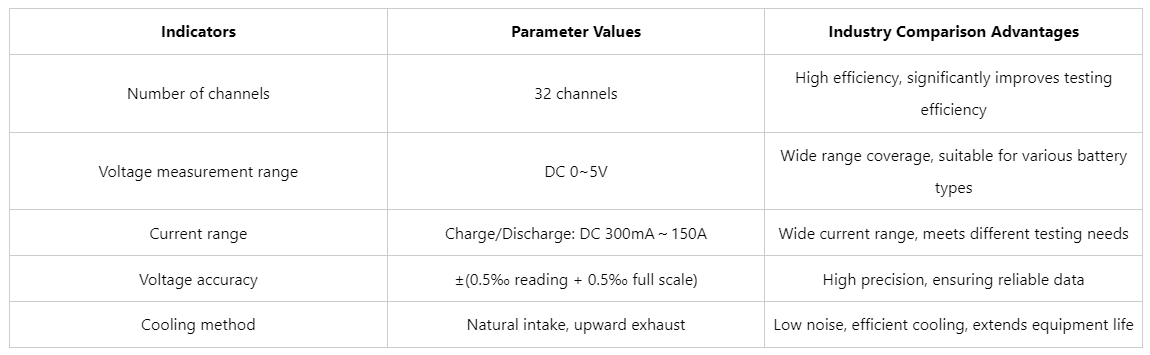

Technical Parameters Comparison Table
Advantages in the Application Scenario of the Equipment
Advantages in the Battery Research & Development Field: The Battery Charge Discharge Tester can provide high precision voltage, current, and capacity test data. It supports a variety of charge and discharge modes and has complex step settings. Furthermore, it possesses powerful data analysis functions that allow various research and development staff to evaluate battery performance and optimize battery formulations and production processes, which can expedite a battery, new product development and market phase times.

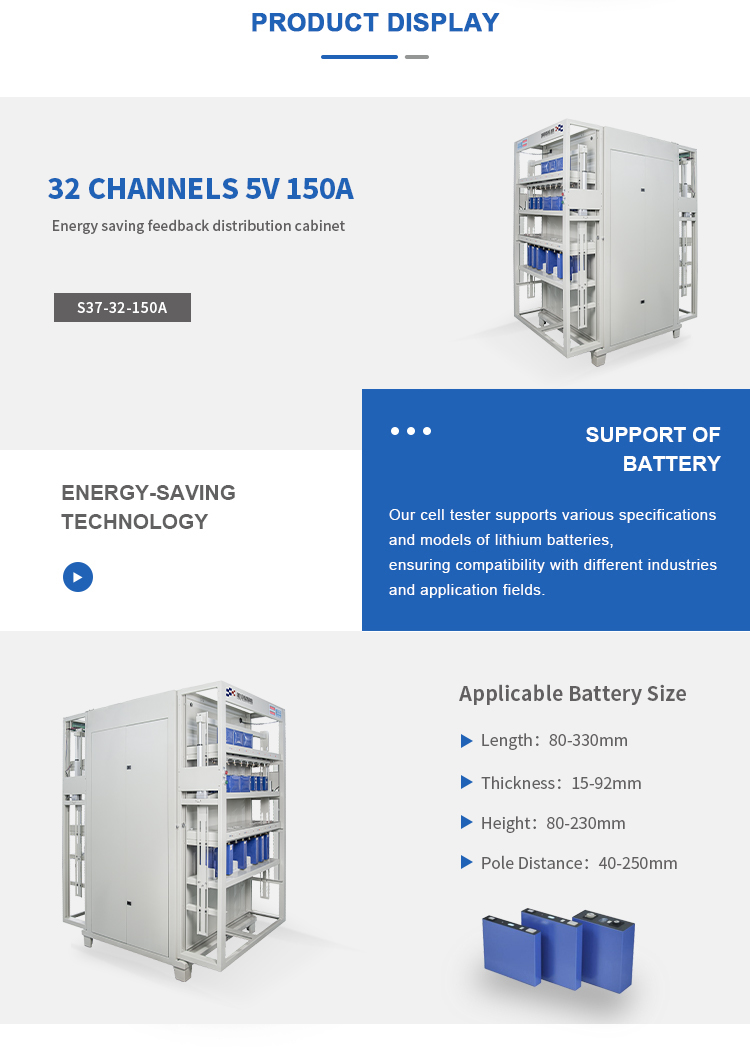

Advantages in Industrial Stage - Battery Production: The equipment provides independent control functions on a 32-channel basis, which provides formation and grading tests for battery testing at the same time. The high precision and stability will clearly improve production efficiency while reducing production cost: respectively and potentially significant. In consideration of high precision, stability, real time monitoring, and protection functions, the potential or effective elimination of failure factors in the process is relevant to the overall continuity and effective risk mitigation in the case of faulty products being sold.
Advantages for Quality Inspections and After Sale Support: The Lithium-ion battery Load Tester provides data break button continuation and ability for remote monitoring, and recording data over time as well as analysis of battery charge discharge data (in real time). Providing complete data for the quality inspection data support. The battery load tester displays further significant levels of testing error function and data storage capabilities, improvements for the analysis of faults, warranty and after sale support in consideration of the product's improved (data) monitoring functions to provide after sale services, to locate problems and solutions; for the overall warranty or putting customer trust in the product.
