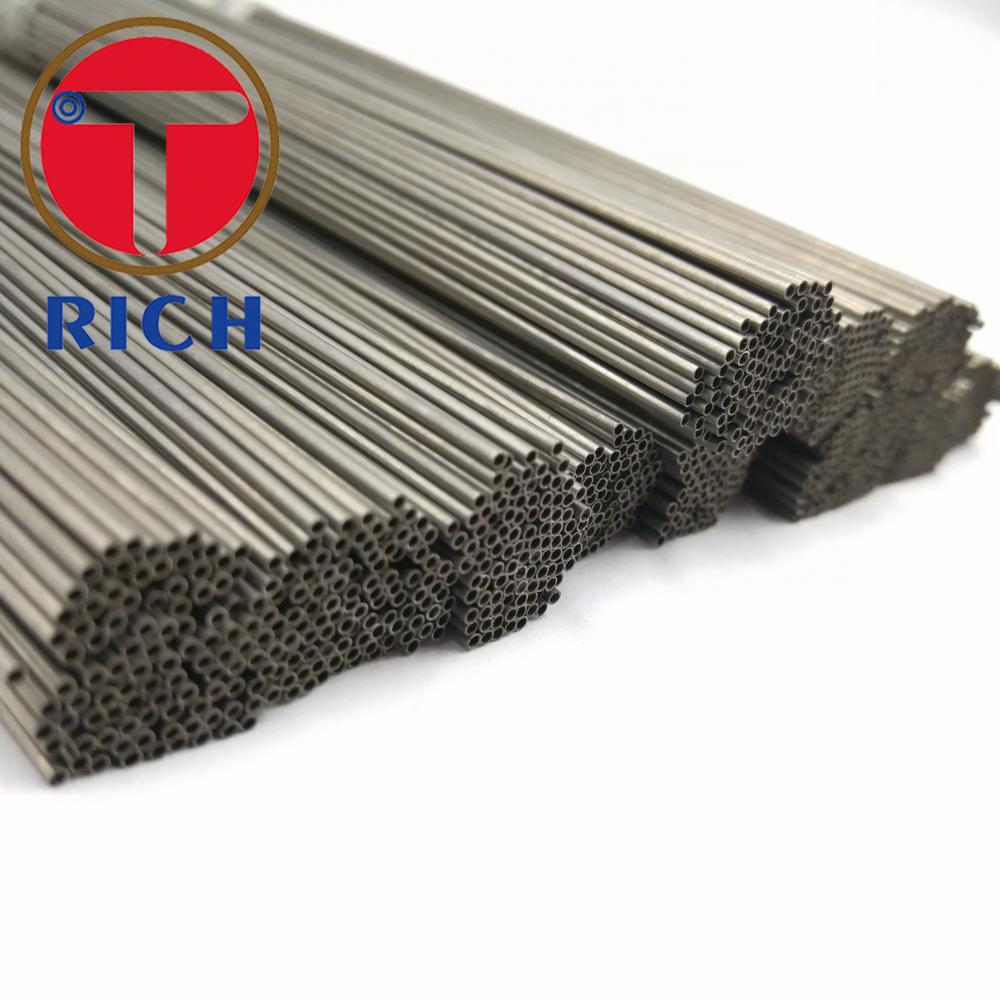

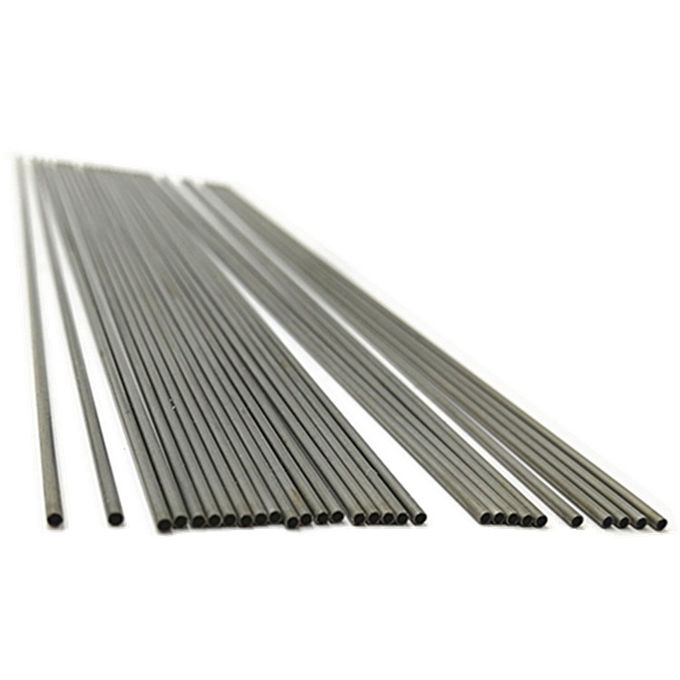

TORICH ASTM A554 A249 Small Diameter Stainless Steel Capillary Pipe
304 Capillary Pipe，Small Diameter Steel Pipe，Stainless Steel Capillary Pipe
Capillary Stainless Steel Tube
|
Standard
|
ASTM A554, A249, A269 and A270, A312
|
|
Matrial
|
201 ( Ni 1.2%), 202 (Ni 3.5%~4.5%), 301(Ni 5%), 304 (Ni 8%, Cr 18%),
316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), 430 |
|
Size
|
OD: 0.4mm--8.0mm WT: 0.05mm - 0.9mm Length: According to Customer's Requirement
|
|
Common size
|
0.4*0.11, 0.5*0.1, 0.5*0.15, 0.6*0.1, 0.6*0.125, 0.63*0.15, 0.7*0.1, 0.7*0.15, 0.8*0.1, 0 .8*0.125, 0.8*0.15, 0.9*0.1, 0.9*0.15 etc |
|
Surface Finish
|
180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish |
|
Test and Inspection
|
Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
|
|
Application
|
Decoration construction, upholstery, industry instrument
|
Tolerance
a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
|
Applications 1: Medical equipment industry, injection needle tube, puncture needle tube, medical industrial tube. 2: industrial electric heating tube, industrial oil tube 3: temperature sensor tube, sensor tube, barbecue tube, thermometer tube, thermometer tube, instrument tube, thermometer stainless steel tube. 4): pen making pen, core tube, pen tube. 5: All kinds of electronic micro-tubes, optical fiber accessories, light mixer, small diameter stainless steel capillary 6: clock and watch industry, mother-to-child, raw ear pole, watch strap accessories, jewelry punch needle 7: all kinds of antenna tube, automobile tail antenna tube, tie rod antenna tube, stretch pointer, mobile phone stretch antenna tube, micro-antenna tube, portable computer antenna Stainless steel antenna. 8: stainless steel pipes for laser engraving equipment. 9: pipes for fishing utensils, pipes for dropping fishing rods 10: pipes for various dietary industries, pipes for transporting materials |
