Product details

Product introduction：

Insulated pipes transport glue to maintain consistent temperature at all times; The hot melt glue gun is specially customized and has the function of quickly breaking the glue, without dripping or drawing. The whole machine is equipped with a three-stage chain heating system to ensure the minimum insulation difference; Using microcontroller technology, A/D chips from AD Corporation in the United States, and thermocouple temperature sensing components imported from Taiwan to ensure stable control temperature within ± 1 ℃ of the set temperature

Thickened insulation cotton wraps around the sol barrel, completely separating the temperature inside the barrel, better solving the problem of temperature loss and temperature difference, while also protecting operators from burns.

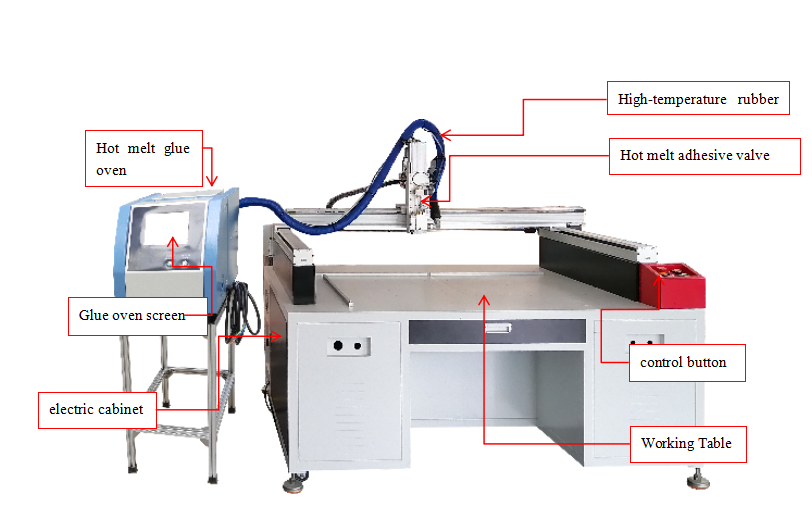

The automatic glue drawing machine is composed of X/Y/Z/R axes, driven by motion software to achieve four axis linkage, and completes various point gluing actions on the plane, such as marking dots, lines, circles, and irregular 3D graphics.

Adopting simulated teaching and CAD import programming, it has good universality and strong flexibility, and can be matched with different adhesive supply systems according to different adhesives.

Environmental protection and hygiene are widely used to solve the pollution of the environment and products caused by traditional glue application processes, resulting in serious consequences such as poisoning and employee discomfort.

Replacing labor, improving quality, increasing efficiency, saving glue, and reducing costs, equipment will become the best helper in the face of increasing labor costs and fierce market competition.

In addition, the machine can be equipped with a two-component pumping system to form a dual liquid fully automatic dispensing machine; Can be equipped with dispensing controllers, dispensing valves, and other accessories to form a floor standing dispensing equipment; Can be equipped with a screw locking mechanism and configured as an automatic screw locking machine; Can be equipped with a hot melt device to form a fully automatic hot melt adhesive dispensing machine; Upgraded to online robots as needed for various automated assemblies; Strong load-bearing capacity and large processing space

Application scope and industries：

The application fields of hot melt adhesive machines are very wide, such as:

1. Furniture industry (mattresses, sofas, chairs, door and window edging).

2. Home appliances (refrigerators, air conditioners, washing machines, electric water heaters, induction cookers, glue coating, etc.).

3. The automotive industry (car lights, car tires, car interiors, car edging and gluing).

4. Packaging industry (cardboard packaging, cigarette boxes, wine boxes, gift boxes, eyeglass boxes, craft boxes, jewelry boxes, medicine boxes, food bags, express bags, colored box packaging with glue).

5. Health industry (diapers for adults and children, hygiene products, wet wipes, etc. coated with glue).

6. Air filter cartridge (useful for any filter cartridge), coating composite industry (leather, fabric, medical tape, labels, double-sided tape, etc.).

7. Product assembly (furniture assembly, home appliance assembly, etc.), shoe material industry, sports equipment, clothing industry, cosmetics industry, printing industry, electronic appliances.

8. 3C digital industry (mobile phones, tablets, computers, cameras).

9. Hot melt adhesive machines are used in industries such as daily necessities, construction, ceramics, etc., as long as they require bonding.

Machine characteristic：

1. Easy to operate, clear and intuitive graphics, ready to learn.

2. The size, thickness, coating speed, dispensing time, and stopping time of the adhesive can all be set as parameters. The adhesive output is stable and does not leak or drip.

3. Elastic auxiliary device design can be provided according to product requirements.

4. Replace manual specific dispensing operations to achieve mechanized production.

5. It can achieve high-speed and accurate point gluing operations for points, lines, arcs, irregular curves, and 3D spatial trajectories.

6. After completing the program editing of the teaching box, the data can be imported into the machine memory to work independently without the teaching box, making the operation simple.

7. The programming software that comes with the machine can convert CAD documents into adhesive paths and download them to the machine's memory through a USB interface, thereby simplifying programming.

8. Program files can be uploaded/downloaded through a USB flash drive for easy data management and storage.

9. Can work quickly, accurately, and reliably 24 hours a day, saving manpower.

10. When the hot melt adhesive is not melted, the motor is prohibited from starting the protection function (when the temperature of the heating pressure plate does not reach the set temperature, the motor cannot operate, solving the problem of operator misoperation).

11. One hot melt glue furnace can supply glue to multiple motion platforms.

Technical parameters：

Model	ZX-1200R
Size X/Y/Z	1200 x 800 x 150mm
Max XY/Z	10 kg/ 5kg
Move speed XY/Z	0.1-500/300 mm/Axis
Temperature	MAX 200℃
accuracy	±1℃
Path storage capacity	100组/每组4000个点
Language	Chinese/English
Driving system	Micro-stepping precision motor
driving method	Synchronous belt / Precision linear guide rail
Programming mode	Instruction box / Editing software
Panel control	Program selection/run switch
machine function	Dot/Line/Arc
Glue valve	Precision hot melt adhesive valve
voltage	AC220V/50-60Hz/2.5KW
Work environment temperature/humidity	0～40 °C 20～90%（无结露）
OVERALL DIMENSIONS	约1550 x1050 x 1670mm
Weight	Around 350Kg
