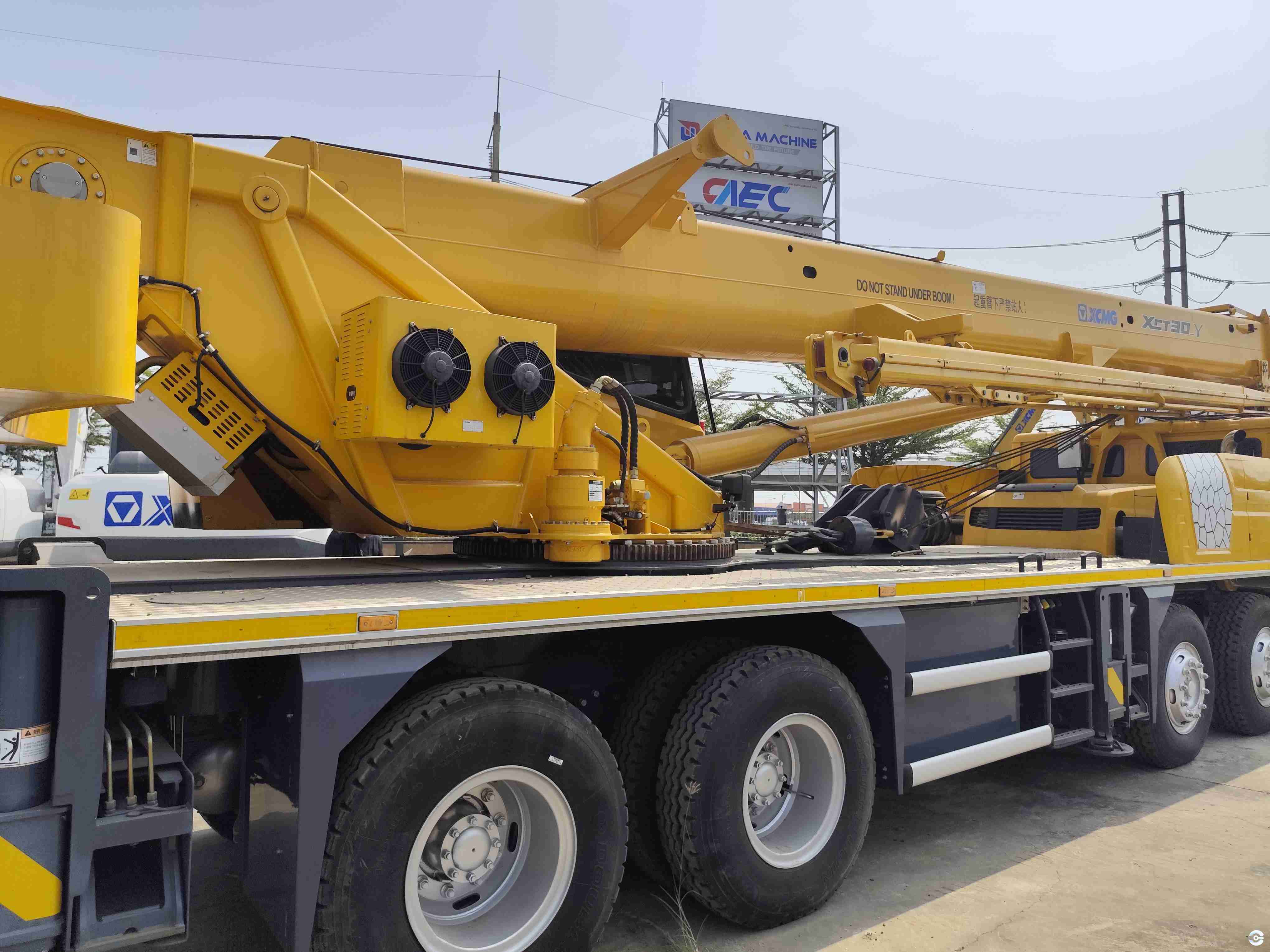

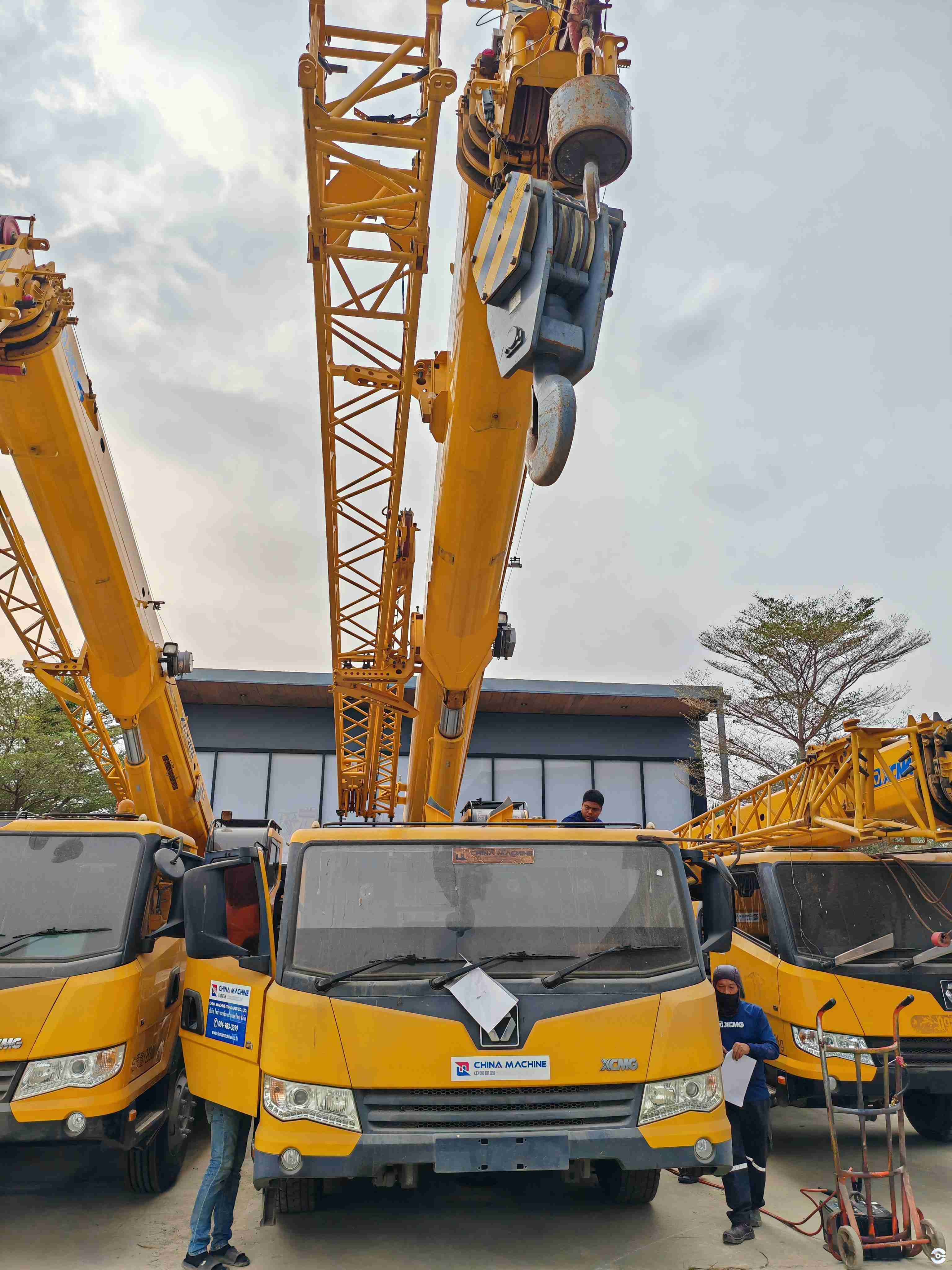

XCMG Brand 60 Ton Pickup Truck Lifting Crane Xct60_Y Hydraulic Cranes for Sale
XCT60_Y Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
5-section boom of 44m with U-type profile is adopted; the max. lifting load is 60 t; the max. lifting height is 59.8 m; The performance takes the lead comprehensively. The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60ºC. Abundant configurations suitable for various working conditions, meet the requirements of applications such as all oil fields and government projects.
Advantages and highlights:
| Item | Unit | Parameter |
|---|---|---|
| Dimensions (length x width x height) | mm | 14090×2790×3630 |
| Total vehicle mass in travel configuration | kg | 42200 |
| Axle load - 1st and 2nd axle | kg | 16200 |
| Axle load - 3rd and 4th axle | kg | 26000 |
| Engine rated power/rpm | kW/(r/min) | 247/2200 |
| Max. output torque/rpm | N.m/(r/min) | 1350/1100-1600 |
| Max. travel speed | km/h | 90 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 250 |
| Approach angle | ° | 18/10 (front protective device included) |
| Departure angle | ° | 13 |
| Max. grade ability | % | 36 |
| Fuel consumption per 100 km | L | 36 |
| Max. total rated lifting capacity | t | 60 |
| Min rated working radius | m | 3 |
| Max. load moment - Base boom | kN.m | 2009 |
| Max. load moment - Fully-extended boom | kN.m | 1113 |
| Outrigger span - Longitudinal | m | 6.1 |
| Outrigger span - Lateral | m | 7.1 |
| Hoist height - Base boom | m | 11.3 |
| Hoist height - Fully-extended boom | m | 43.6 |
| Boom length - Base boom | m | 11.5 |
| Boom length - Fully-extended boom | m | 44 |
| Jib offset angle | ° | 0,15, 30 |
| Boom raising time | s | ≤40 |
| Boom fully extending time | s | ≤90 |
