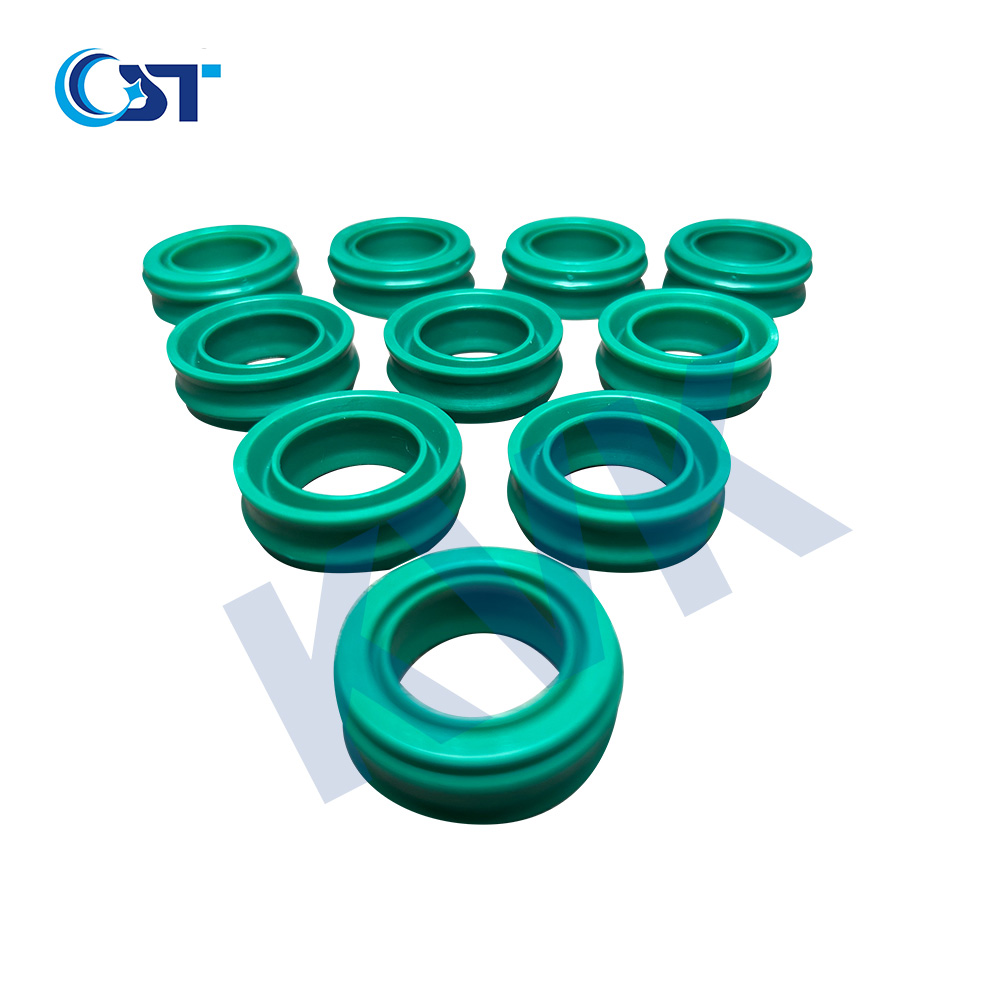

WEU Series Triple-Function Rod Seals | Sealing, Dustproof & Retention Solutions for Pneumatic Cylinders
Engineered for precision pneumatic systems, the WEU Series Piston Rod Seal uniquely integrates sealing, dust exclusion, and axial retention in a single compact unit. Crafted from 90 Shore TPU, this specialized seal excels in low-pressure applications (≤1.6 MPa) while withstanding -35°C to +80°C temperature extremes—ideal for automated machinery and pneumatic actuators.
| Parameter | Specification |
|---|---|
| Primary Functions | Fluid sealing • Dust protection • Axial fixation |
| Working Pressure | ≤1.6 MPa (232 psi) |
| Temperature Range | -35°C to +80°C |
| Reciprocating Speed | ≤1 m/s (236 ft/min) |
| Media Compatibility | • Oil-lubricated air • Dry/oil-free air (requires initial lubrication) |
| Material | 90 Shore A TPU (hydrolysis-resistant) |
| Critical Feature | Integrated anti-walk rib for shaft retention |
1. Triple-Function Design
Dynamic Sealing: Zero leakage at 1.6 MPa
ISO 8573-1 Dustproofing: Blocks 99% of 5μm particles
Axial Fixation: Prevents rod float in high-vibration environments
2. Extreme Environment Reliability
Arctic Performance: Maintains elasticity at -35°C (automated warehouse robots validated)
Dry-Air Optimization: Pre-lubricated grooves prevent startup wear
Energy Efficiency: 30% lower friction vs. NBR seals (tested per ISO 6432)
3. Industry-Specific Applications
Packaging Machinery: Prevents grease contamination in food conveyors
Semiconductor: USP Class VI-certified for cleanroom pneumatics
Material Handling: Resists abrasive dust in palletizer cylinders
