Product Features
Intelligent Human-Machine Interface: The intelligent human-machine interface is configurable in multiple languages, and the operation is intuitive and easy to understand.
High-Precision Positioning: High-precision fiber optic positioning automatically positions the transfer paper, achieving a positioning accuracy of within 0.04mm. Product transport features secondary positioning, meeting the precision requirements of all brands.
Transfer Paper Management: Transfer paper is stored in roll-to-roll format for convenient management and easy disposal after use, maintaining a clean environment.
Efficient Transfer: The machine features a material storage rack that allows simultaneous loading of material during operation without stopping. This significantly improves transfer efficiency, reaching up to 1,100 sheets per hour, and one person can operate two to three machines simultaneously.
Customizable Settings: Temperature, pressure, and transfer time can be adjusted to meet customer requirements. Corrective action can be taken for temperature deviations. Alarms can be set for abnormal temperature and air pressure to ensure product quality.
Multiple Uses: In addition to trademark heat transfer, the machine can also perform hot stamping by replacing the hot stamping die. It is also suitable for the luggage and packaging industries.
Wide Applications: Widely used for transfer printing of flat/rounded insoles/tongue pads, hot stamping, and leather branding.
Product Parameters

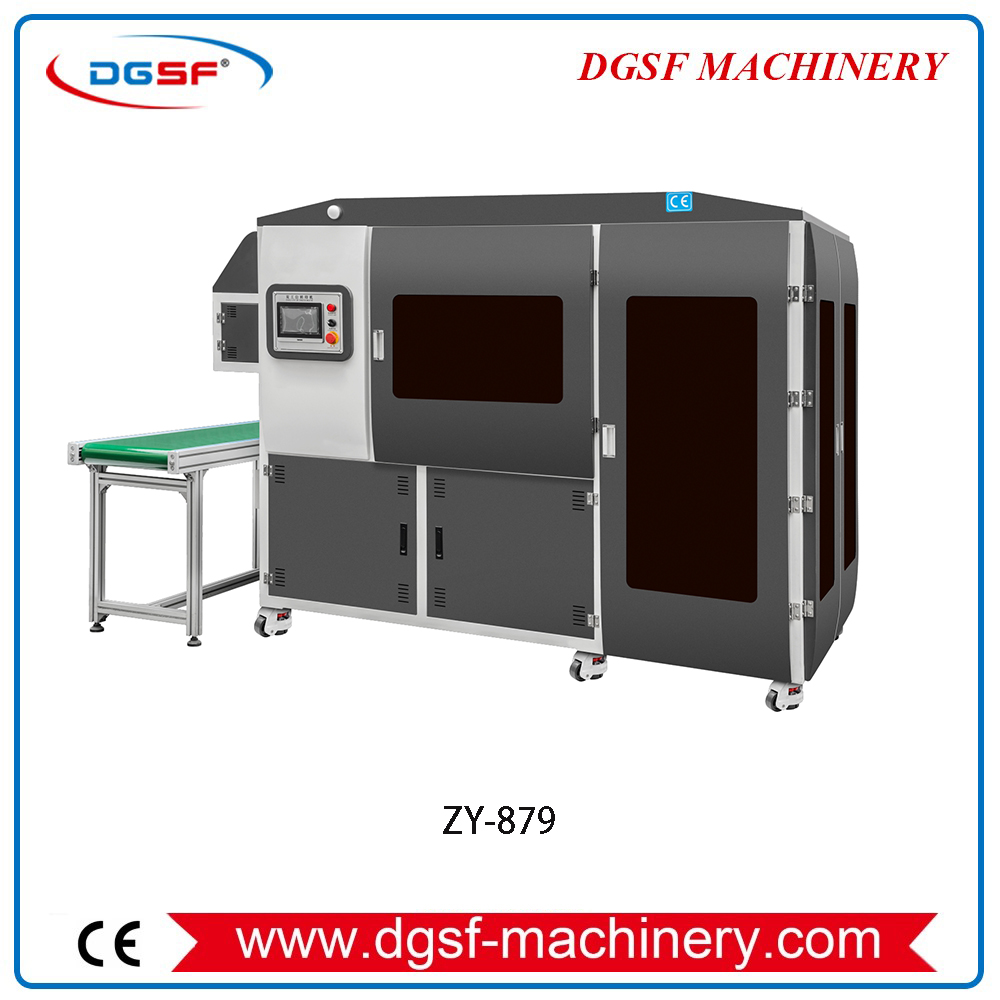

Model: ZY-879
Machine Dimensions: 2700*1400*1700mm
Packaging Dimensions: 2800*1500*1870mm
Output: 1100 pairs/hour
Power: 25kW
Voltage:380V
Net Weight/Gross Weight: 670/750kg
