1.ANSI/IEEE C57.12.00 IEEE Standard for General Requirements for Liquid-Immersed Distribution, Power, and Regulating Tç
2.ANSI/IEEE C57.12.90 IEEE Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers
2.IEC 60076 Power Transformers
3.AS NZS 60076 Power Transformers
4.CSA C227.4 Three Phase Pad Mounted Distribution Transformers
6.GOST R 52719 Power Transformers Liquid-Immersed Distribution, Power, and Regulating Transformers– General Specifications
Product Specifications
| Capacity(KVA) | Primary voltage KV | Secondary voltage V | Efficiency（%） | Impedance（%） |
| 15 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
98.65 | 1.0-4.5 |
| 30 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
98.83 | 1.0-4.5 |
| 45 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
98.92 | 1.0-4.5 |
| 75 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.03 | 1.0-4.5 |
| 112.5 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.11 | 1.2-6.0 |
| 150 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.16 | 1.2-6.0 |
| 225 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.23 | 1.2-6.0 |
| 300 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.27 | 1.2-6.0 |
| 500 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.35 | 1.5-7.0 |
| 750 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.40 | 5.0-7.5 |
| 1000 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.43 | 5.0-7.5 |
| 1500 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.48 | 5.0-7.5 |
| 2000 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.51 | 5.0-7.5 |
| 2500 |
34.5/19.92
13.8/7.957
13.2/7.62
12.47 or others
|
240
480
480/277
415
600/347 or others
|
99.53 | 5.0-7.5 |

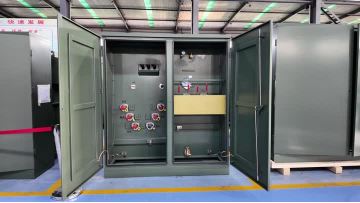

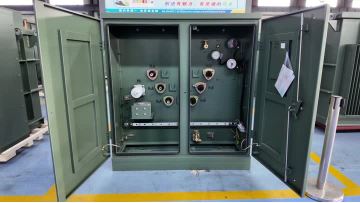

Pad Mounted Transformer, Power Transformer, Distribution Transformer, Pole Mounted Transformer
