1. Multi-Layer Co-Extrusion Capability
The core feature of this line is its ability to simultaneously extrude and combine multiple, distinct polymer layers onto the steel pipe. This typically includes:
An Adhesive Layer: A specialized bonding agent (often a maleic anhydride grafted polymer) applied directly to the steel substrate to ensure exceptional adhesion between the metal and the outer plastic layers.
A Primary Outer Layer: The main, thick layer providing the pipe's mechanical properties, corrosion resistance, and environmental protection (e.g., HDPE, PP).
A Functional Outer Layer: An optional third layer for specific properties like UV resistance, different color coding, or enhanced abrasion resistance.
2. Precise and Flexible Material Application
The use of three different-sized extruders (SJ35, SJ45, SJ65) allows for precise and independent control over the volume and thickness of each polymer layer. The larger SJ65 extruder is ideally suited for applying the main, thick structural layer. The medium SJ45 extruder can handle the adhesive layer or a secondary functional layer. The smaller SJ35 extruder is perfect for applying a thin, precise functional or tie layer.
3. Optimized Production Efficiency
This configuration separates the melting and pumping duties for each material, leading to higher output rates compared to a single-extruder system. It also allows for the use of recycled material in the main structural layer while maintaining a 100% virgin, high-quality material for the critical inner adhesive or outer weatherable layer.
4. Superior Coating Quality and Adhesion
Co-extrusion ensures that the layers are applied hot and bonded together molecularly in a single, continuous process within the crosshead. This eliminates the risk of inter-layer contamination and creates a monolithic, delamination-resistant coating with superior bond strength compared to multiple-pass coating methods.

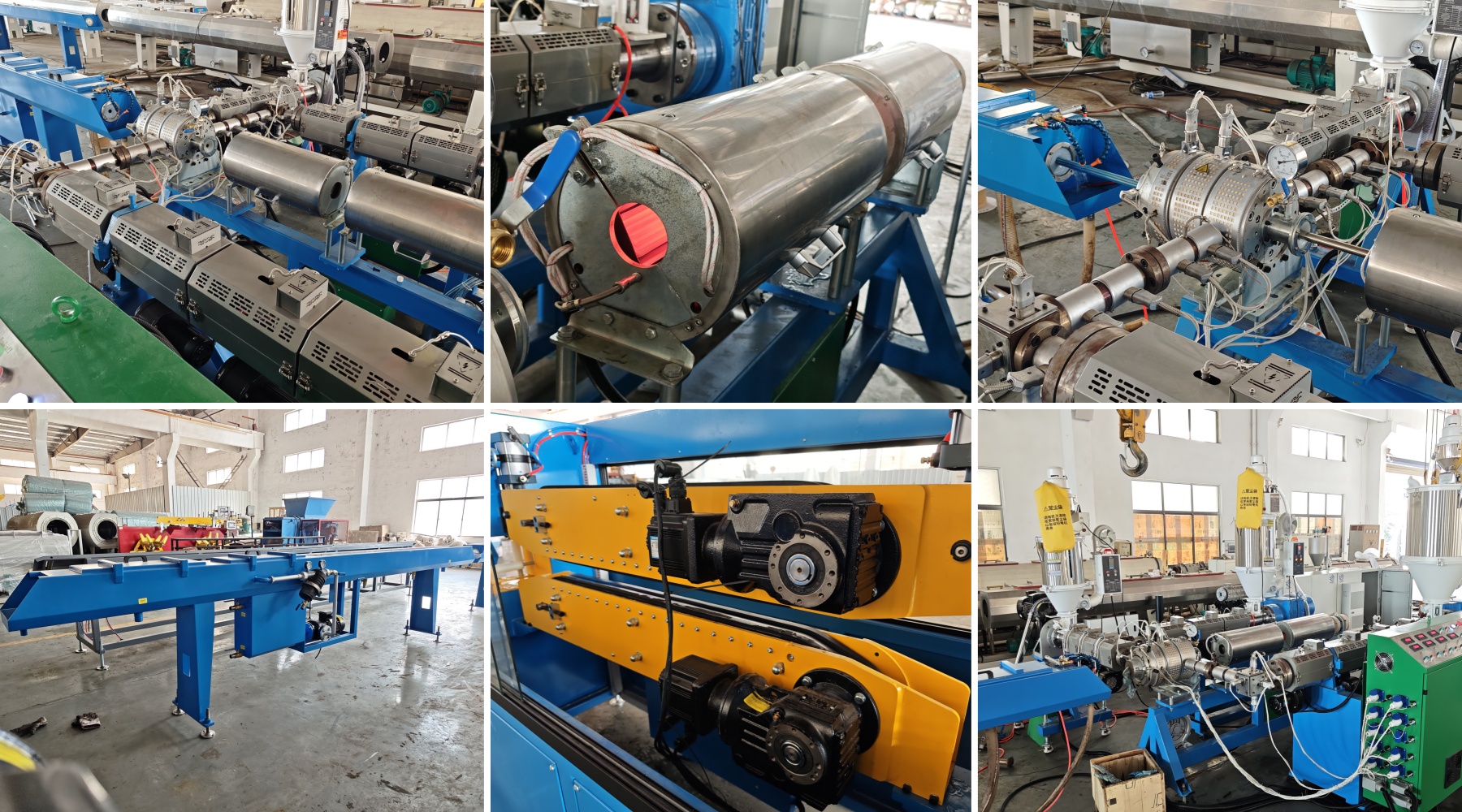

5. The steel pipe passes through two heating ovens for thorough heating, which can better allow the coating layer and adhesive layer to adhere to the steel pipe

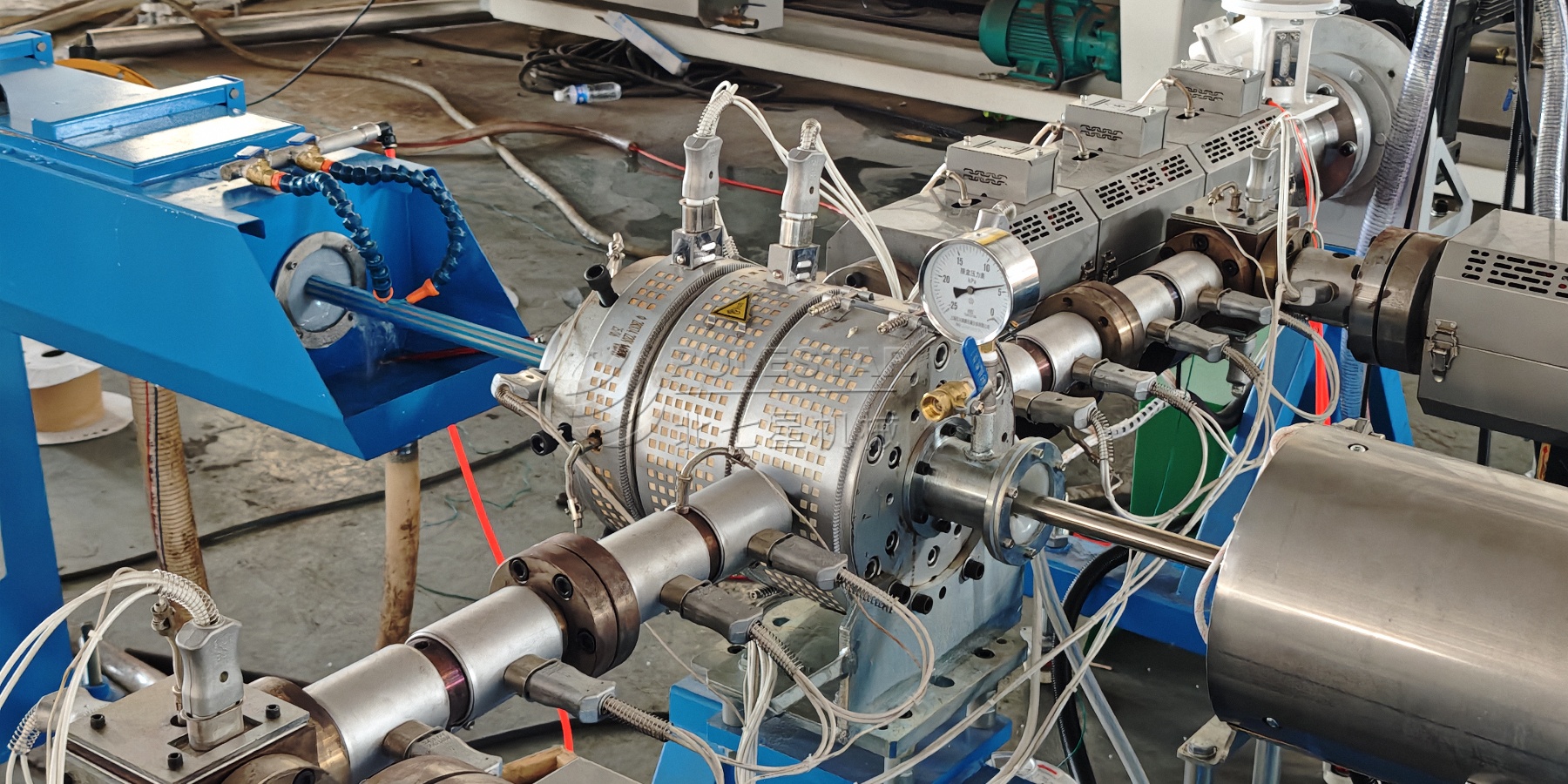

6. The heated steel pipe passs through multiple layers of extrusion mold to complete the coating, and then directly enter the spray soaking cooling tank for rapid cooling and shaping
If you are interested in the product, contact 2bvideo.com for more information for more information
