High Temperature Polyimide Tubing

3 week ago
2 0
Product details

High Temperature Polyimide Tubing

(Also known as PI Tubing or Kapton Tubing)

1. Product Overview

It is a specialized tubing with precise dimensions and excellent electrical, mechanical, and weather-resistant properties. It serves as insulation casing or gas and liquid transfer casing, and is suitable for extreme environments such as space, nuclear power, biotechnology, and industrial settings. It can resist extreme high and low temperatures as well as strong radiation.

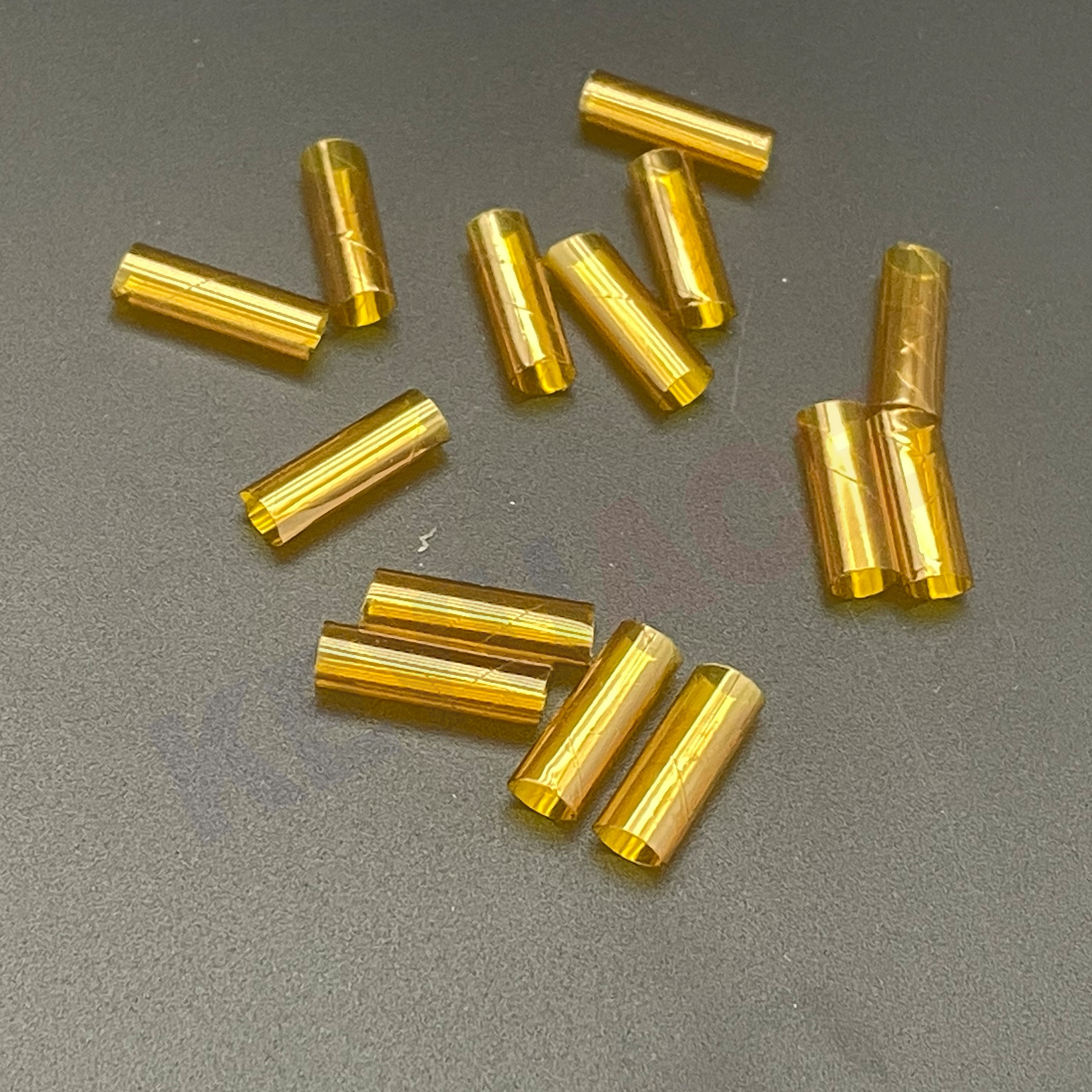

polyimide micro tubing

2. Core Technical Specifications

Performance Category Key Specifications
Temperature Resistance Usable at 240C for long-term operation; no softening at400°℃ for short-term use; no melting at low temperatures
Electrical Insulation Dielectric constant approximately 3.4; dielectric strength not less than 120KV/mm
Mechanical Property Tensile strength not less than150MPa; elongation not less than 10%
Chemical and Special Property Resistant to most organic solvents (not alkali-resistant); excellent radiation resistance; low outgassing under thermal vacuum; friction coefficient approximately 0.5, easy to bond

3. Product Specifications

  • Customization is available.
  • Standard inner diameter range: 0.1mm to 63.5mm, which meets both precision and industrial application needs.

4. Typical Applications

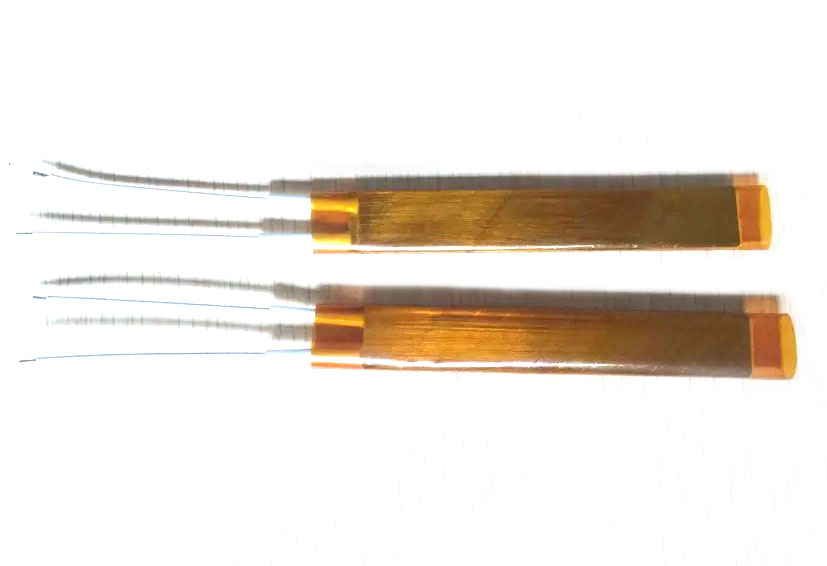

  • Insulation tubing for thermistors and electronic probes
  • Casing for temperature sensors and electric heating elements
  • Precision tubing for high-temperature corrosive gases and liquids
KPT
