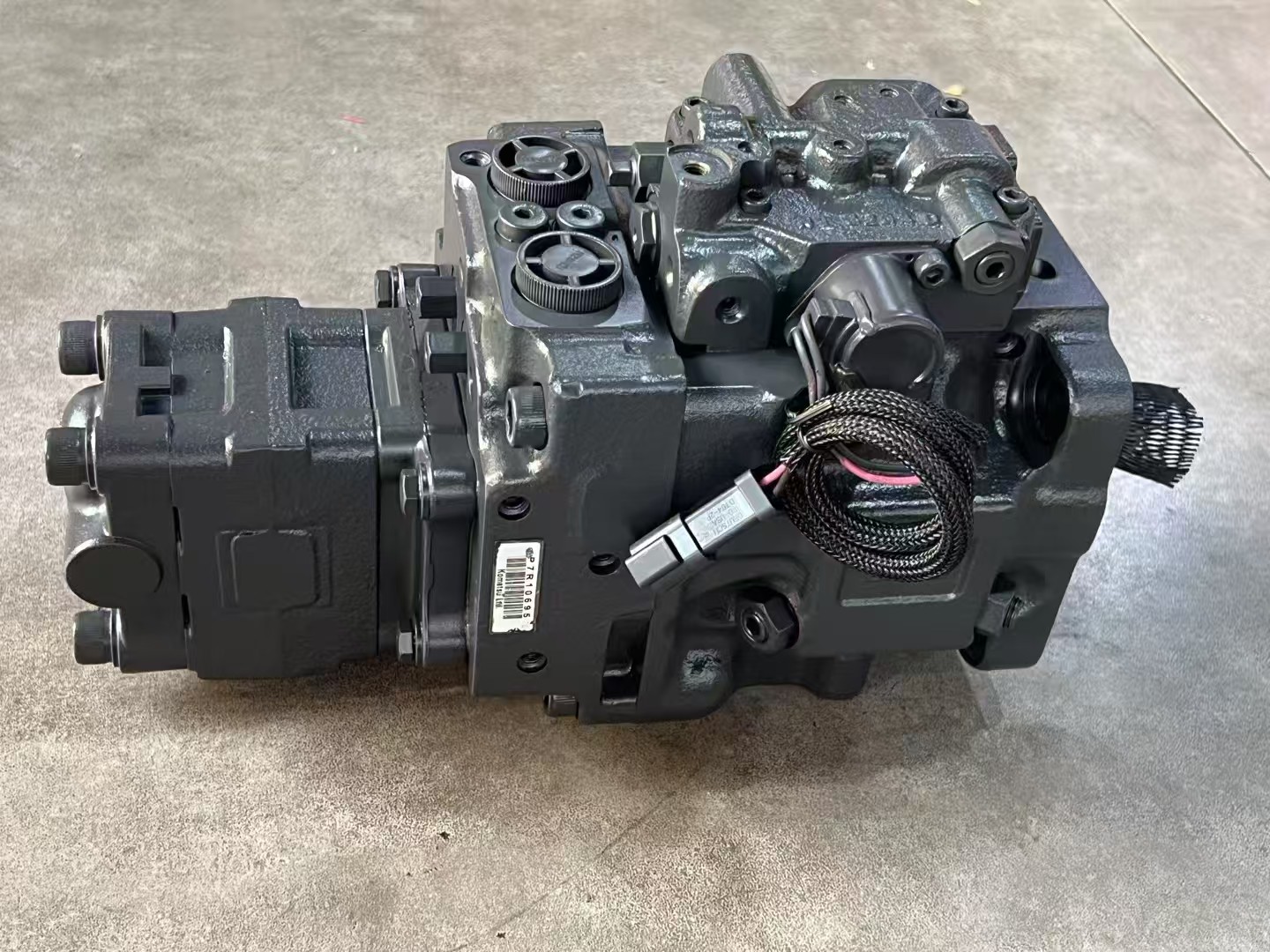

The Komatsu PC50 / 55 / 56 hydraulic pump is a core hydraulic component designed by Komatsu for its PC50, PC55, and PC56 series of small excavators. It is responsible for converting the mechanical energy output from the engine into hydraulic energy, providing power to various actuators (such as the boom, arm, bucket, swing device, and travel device) of the excavator, ensuring that the excavator can efficiently and stably perform various operational tasks.
Structural Composition
• Drive Section: Usually directly driven by the engine through a coupling or gearbox, which transmits the rotational motion of the engine to the main shaft of the hydraulic pump.
• Pump Body Section: Comprises multiple hydraulic pump units, typically adopting a plunger-type structure. The plungers make reciprocating motions within the cylinders. By changing the size of the sealed volume formed between the plungers and the cylinders, the processes of oil suction and oil discharge are achieved. Different pump models may vary in terms of the number of plungers and displacement.
• Control Section: Includes pressure control valves and flow control valves. The pressure control valve is used to regulate the working pressure of the system, preventing excessive pressure from damaging hydraulic components. The flow control valve can adjust the flow rate of hydraulic oil entering each actuator according to operational commands, thereby controlling the movement speed of the actuators.
• Sealing Section: Utilizes high-quality seals, such as O-rings and V-rings, to ensure that the hydraulic pump does not leak under high-pressure operating conditions, maintaining the normal pressure and flow rate of the system.
Working Principle
Taking a plunger-type hydraulic pump as an example, when the main shaft drives the cylinder block to rotate, the plungers are pressed against the swashplate by spring force and centrifugal force. As the cylinder block rotates, the plungers make reciprocating motions within the cylinders. When the plungers extend outward, the sealed volume formed between the plungers and the cylinders increases, creating a vacuum, and hydraulic oil is sucked in from the oil suction port. When the plungers retract inward, the sealed volume decreases, the hydraulic oil is compressed, and the pressure rises, being discharged from the oil discharge port. By controlling the frequency and stroke of the plunger motions, the output flow rate and pressure of the hydraulic pump can be adjusted.
Performance Characteristics
• High Efficiency and Energy Conservation: Adopts advanced hydraulic design and manufacturing processes, enabling efficient conversion of the engine's mechanical energy into hydraulic energy, reducing energy losses, improving the overall working efficiency of the excavator, and lowering fuel consumption.
• High Reliability: As a well-known construction machinery manufacturer, Komatsu subjects its hydraulic pumps to strict quality control and reliability testing. They can operate stably for a long time in harsh working environments, reducing the probability of failures and lowering maintenance costs.
• Rapid Response: Has a fast response capability, able to promptly adjust the output flow rate and pressure according to operational commands, allowing the actuators of the excavator to complete movements quickly and accurately, improving work efficiency.
• Easy Maintenance: The hydraulic pump has a reasonable structural design, facilitating disassembly and maintenance. When it is necessary to replace wearing parts or perform maintenance, operators can relatively easily complete the relevant work, reducing downtime.
Application Scenarios
It is mainly used in the hydraulic systems of Komatsu PC50, PC55, and PC56 series of small excavators, providing power support for various operational movements of the excavator. For example, it is used for earth excavation and site leveling on construction sites; for pipeline laying and road maintenance in municipal engineering; and for land consolidation and agricultural irrigation facility construction in the agricultural field.
Maintenance and Upkeep
• Regular Inspection: Regularly inspect the appearance of the hydraulic pump for any abnormalities such as leakage and looseness. At the same time, check the oil level and quality of the hydraulic oil to ensure that it is within the specified range and free from contamination.
• Replacement of Hydraulic Oil and Filter Elements: Replace the hydraulic oil and filter elements according to the specified maintenance intervals. The hydraulic oil gradually deteriorates and becomes contaminated during use, affecting the performance and lifespan of the hydraulic pump. The filter elements can filter out impurities in the hydraulic oil, protecting the hydraulic pump and other hydraulic components.
• Inspection of Seals: Regularly inspect the seals of the hydraulic pump. If seals are found to be aged, damaged, or leaking, they should be replaced promptly to prevent hydraulic oil leakage, which can lead to a drop in system pressure and environmental pollution.
• Avoid Overloading: When using the excavator, avoid long-term overloading of the hydraulic pump to prevent damage caused by excessive pressure or flow rate. At the same time, pay attention to operational specifications and avoid sudden impact loads.
