2.0mm Pitch Box header Connector Right Angle H:5.6mm 2*25P Box Packaging

3 month ago

15 0

Shenzhen Yangzhan Electronics Co., Ltd.

 7 month year

Product details

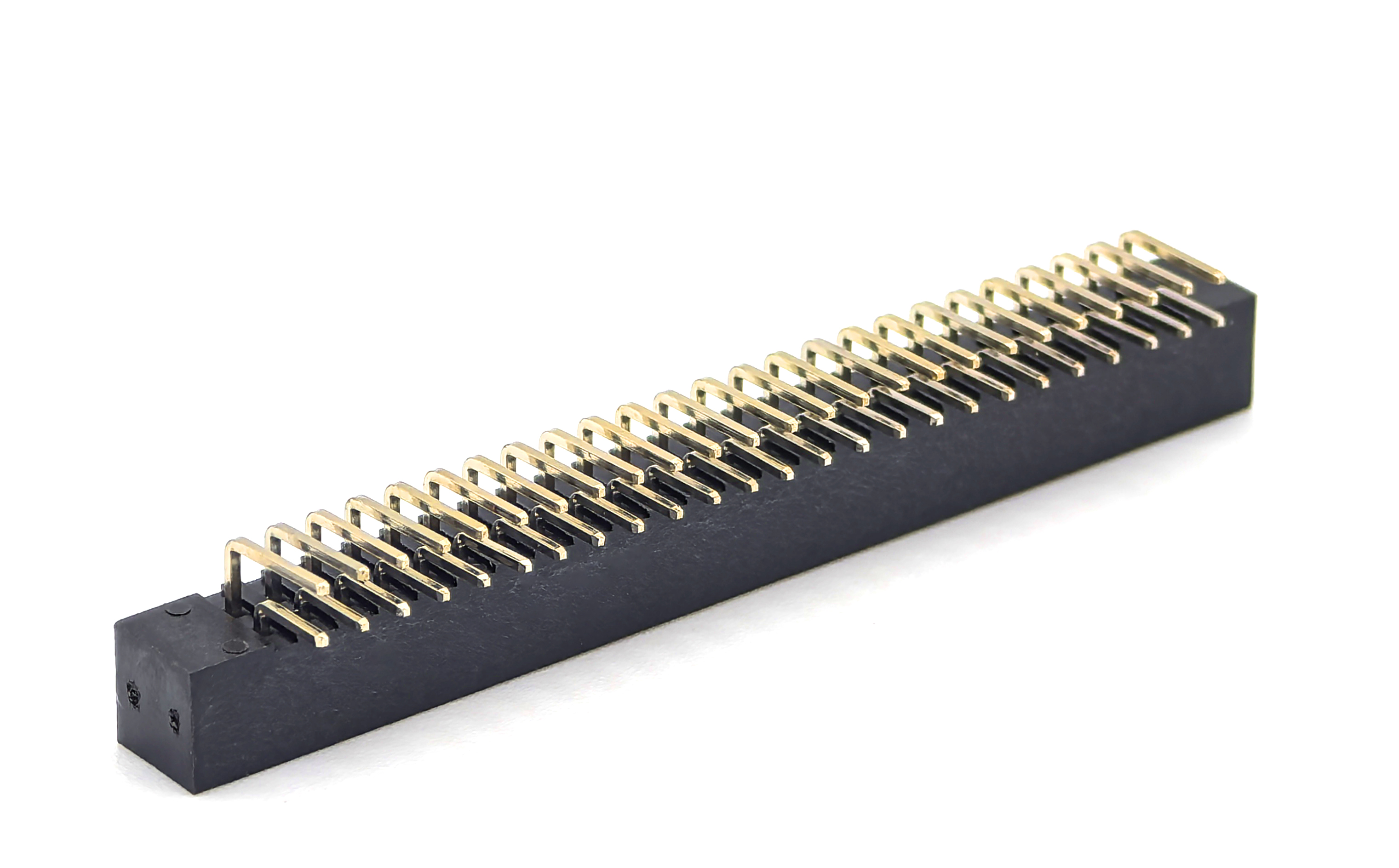

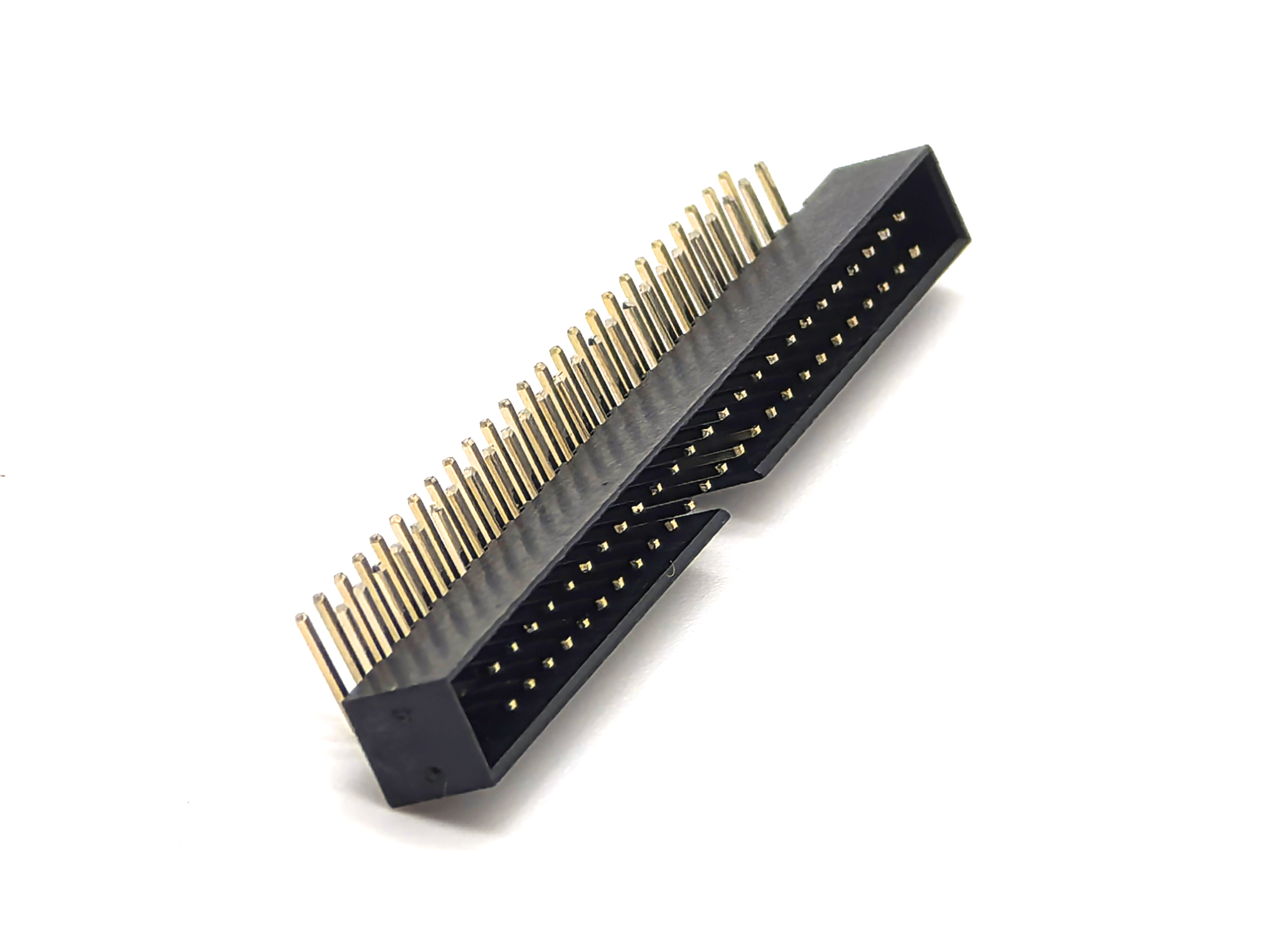

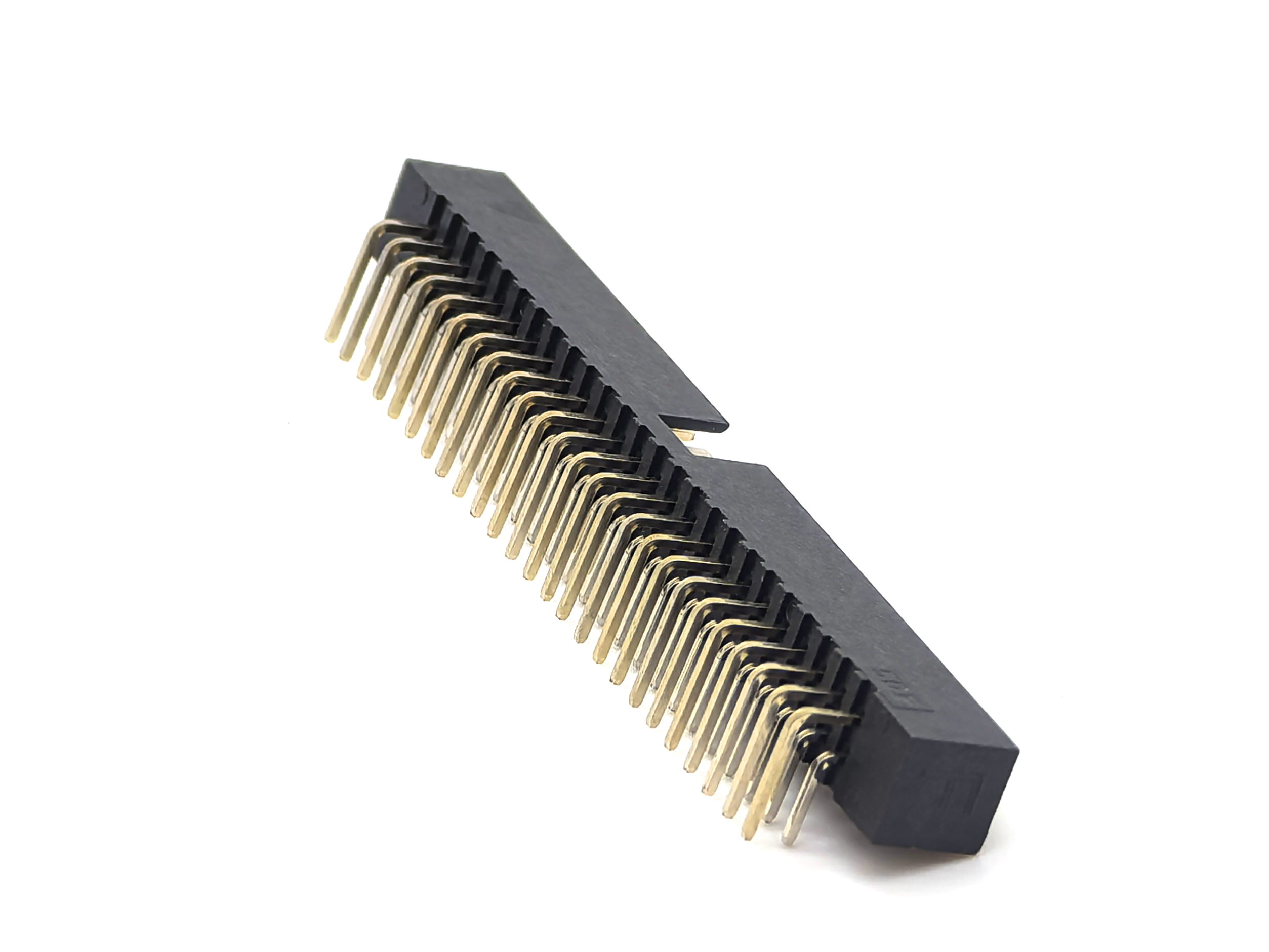

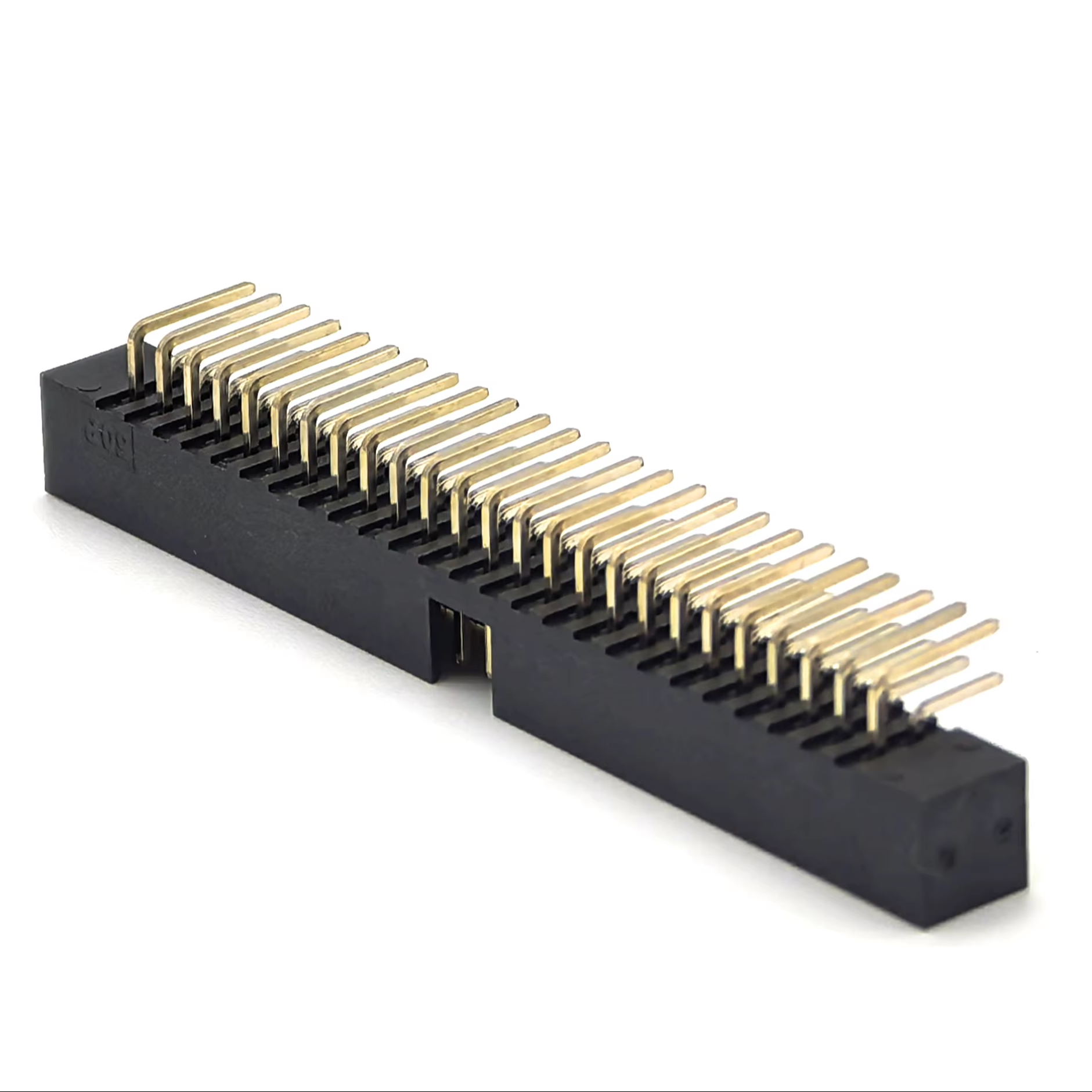

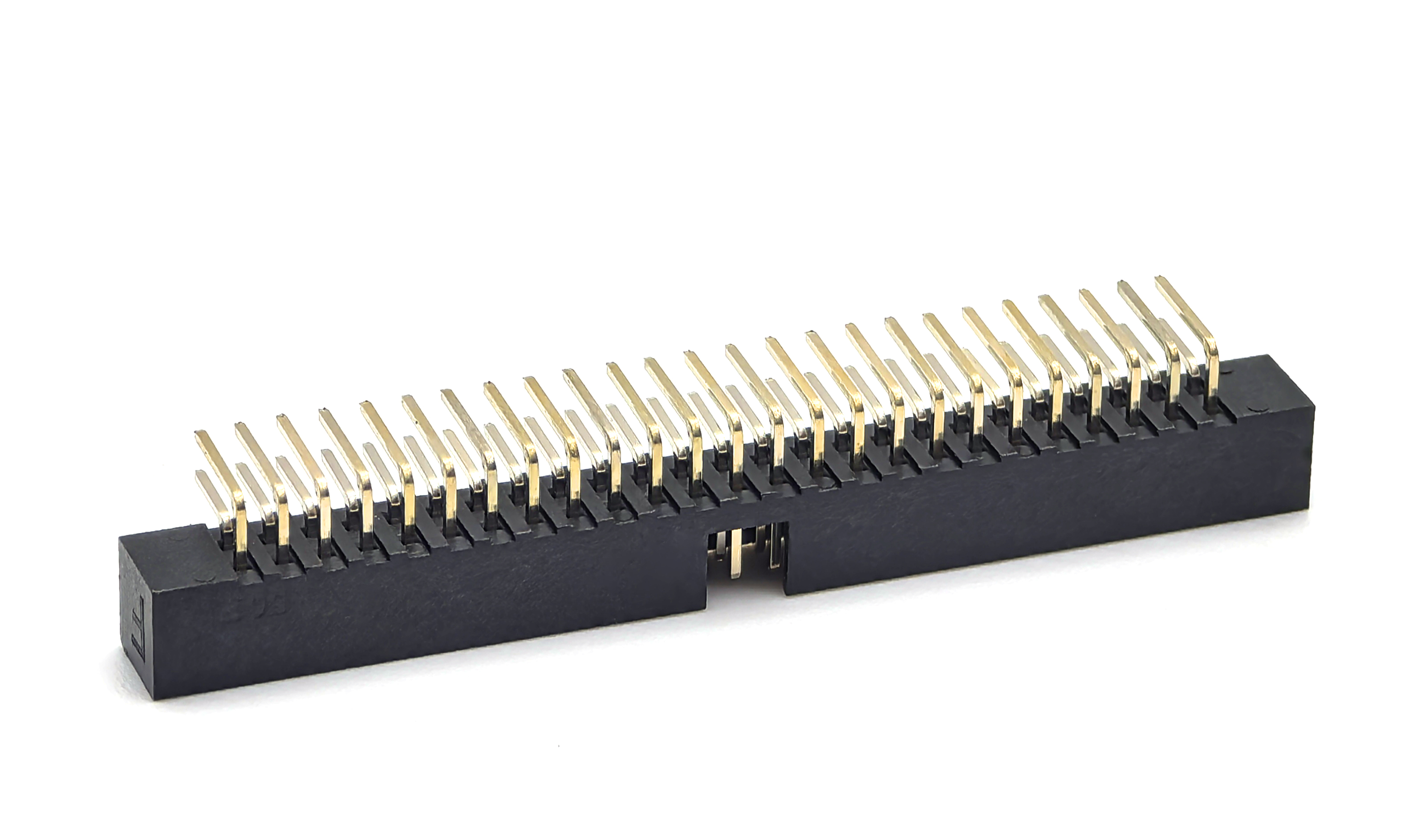

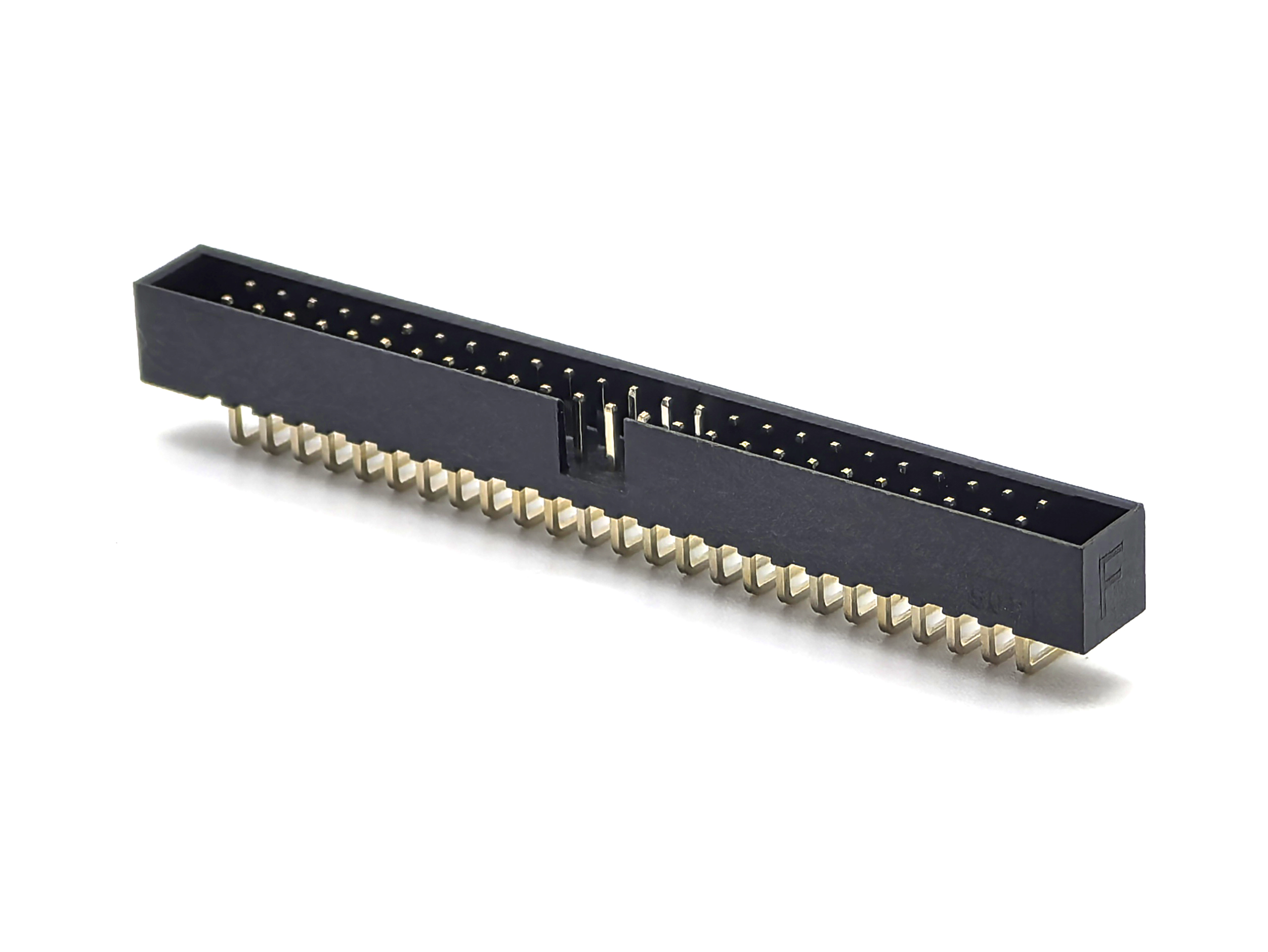

YZTECH 2.0mm Pitch Box Header Connector is engineered for robust connectivity in compact PCB designs. Featuring a dual-row layout with 25 positions per row, this right-angle male header connector offers space-saving integration and reliable signal transmission. Its bending plug installation type ensures secure mounting and mechanical stability, making it ideal for high-density electronic assemblies. Compliant with DIN standards, the 2.0mm box header supports a rated current of 2A and voltage up to 1000V, meeting diverse requirements across industrial control systems, communication devices, and automotive electronics.

Crafted for durability and performance, the header connector employs brass contacts with gold plating to optimize conductivity and corrosion resistance. The housing made of high-temperature PA6T material provides exceptional insulation and maintains structural integrity under thermal stress. With an operating temperature range from -40°C to +105°C, this component performs reliably in harsh environments. It is UL certified and compatible with reflow soldering processes, sustaining peak welding temperatures of up to 220°C.

Designed for streamlined manufacturing and logistics, the product comes in protective box packaging, ensuring damage-free delivery and simplified inventory handling. Its rectangular form factor and right-angle orientation facilitate efficient PCB layout and space optimization. YZTECH’s 2.0mm box header connector combines precision engineering with global compliance, serving as a versatile solution for next-generation electrical and electronic applications worldwide.
