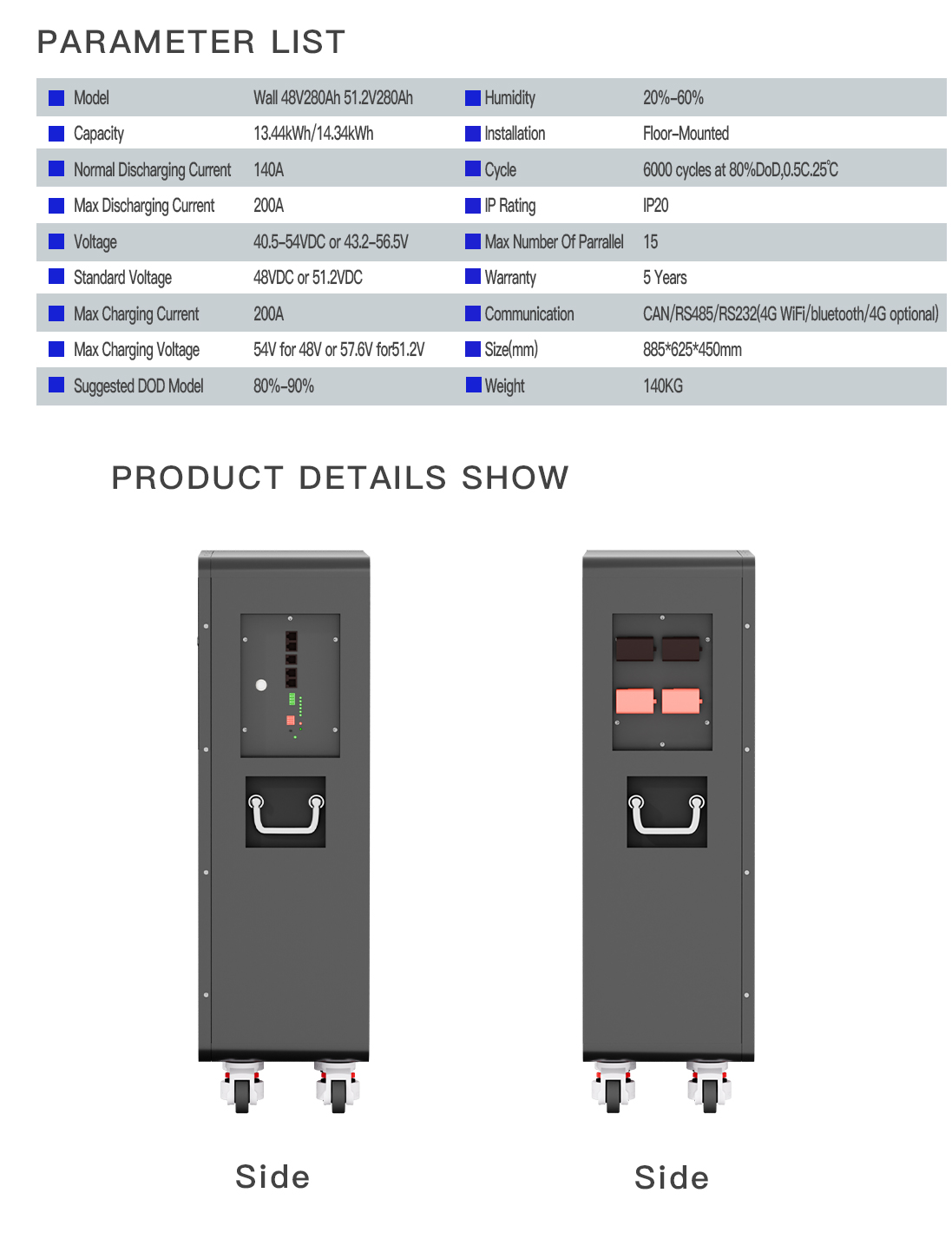

Model
|
Wall 25.6V 100Ah 25.6V 200Ah
|
Wall 48V100Ah 51.2V 100Ah
|
Wall 48V 200Ah 51.2V 200Ah
|
Wall 48V280Ah 51.2V 280Ah
|
|||
|
Capacity
|
2.56kWh /5.12kWh
|
4.8kWh/5.12kWh
|
9.6kWh/10.24kWh
|
13.44kWh/14.34kWh
|
|||
|
Normal Discharging Current
|
50A/100A
|
50A
|
100A
|
140A
|
|||
|
Max Discharging Current
|
100A/200A
|
100A
|
200A
|
200A
|
|||
|
Voltage
|
21.6-29.2VCD
|
40.5-54VDC or 43.2-56.5V
|
|
|
|||
|
Standard Voltage
|
25.6VDC
|
48VDCor 51.2VDC
|
|
|
|||
|
Max Charging Current
|
100A/200A
|
100A
|
200A
|
|
|||
|
Max Charging Voltage
|
28.8V
|
54V for 48V or 57.6V for 51.2V
|
|
|
|||
|
Suggested DOD Model
|
80%-90%
|
|
|
|
|||
|
Humidity
|
20-60%
|
|
|
|
|||
|
nstallation
|
Wall mounted installation
|
|
|
Floor-Mounted
|
|||
|
Cycle
|
6000 cycles at 80%DoD,0.5C.25℃
|
|
|
|
|||
|
IP Rating
|
IP20
|
|
|
|
|||
|
Max Number Of Parrallel
|
15
|
|
|
|
|||
|
Warranty
|
5 Years
|
|
|
|
|||
|
Communication
|
CAN/RS485/RS232(4G WiFi/bluetooth/4G optional)
|
|
|
|
|||
|

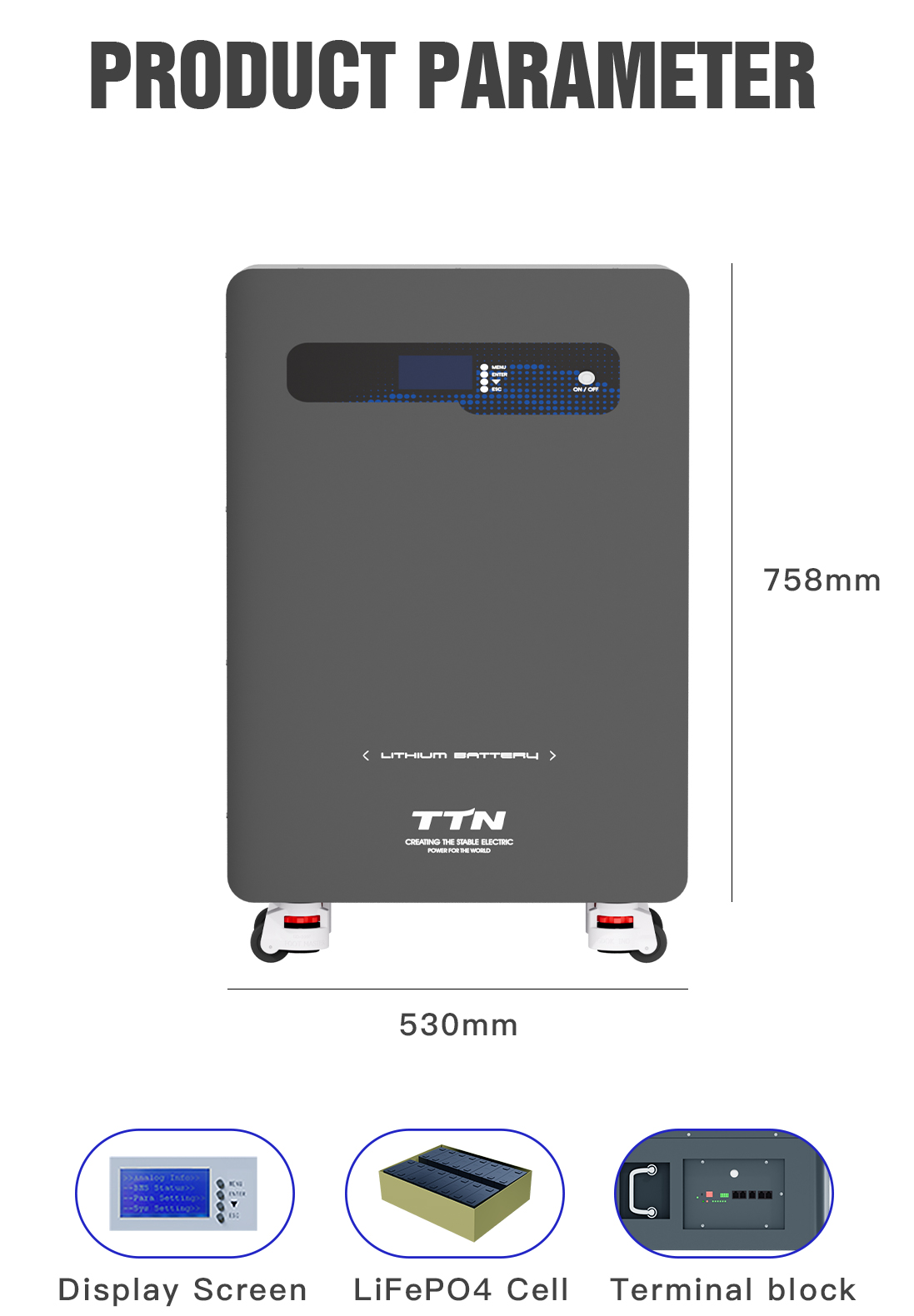

Size(mm)
|
555*435*300mm/730*550*310mm
|
730*550*310mm
|
795*640*465mm
|
885*625*450mm
|
|||
|
Weight
|
35KG/58.5KG
|
58.5KG
|
111KG
|
140KG
|
|||
If you are interested in the product, contact 2bvideo.com for more information for more information
