Oyster Sorting Tumbler Display

Oyster Sorting Tumbler Display

2 month ago

2 0

Tianjin Haojiang Global Technology Co., Ltd.

 3 month year

Product details

Common Faults & Solutions for Oyster Sorting Machines

1. Reduced Sorting Accuracy (Mixed Sizes, Missorts)

Key Causes

Roller mesh clogging (oyster shell fragments, sediment, common with HDPE Oyster Mesh Bags-raised spat)
Abnormal roller speed
Uneven feeding (overloading, e.g., unregulated dumping from Oyster Sorting Tumbler)

Solutions

Rinse mesh with 200-300psi water; use our anti-clog HDPE mesh brush every 500kg sorted
Adjust speed: 15-18rpm for 2-5mm spat (from 3mm HDPE bags); 12-15rpm for ≥8cm adults (from tumblers)
Add our 316 stainless steel guide chute to control feed ≤200kg/hour

2. Roller Jam/Noise (Rough Operation, Grinding Sounds)

Key Causes

Worn/rusted roller bearings (seawater corrosion, salinity 28-32‰)
Foreign objects in roller (e.g., Hexagonal Oyster Basket plastic shards, sharp shells)
Loose/aged motor belt

Solutions

Replace with our 316 stainless steel waterproof bearings (1000h salt spray resistance); use FDA-grade grease quarterly
Clean debris; check/replace HDPE anti-scratch liner (matches our oyster mesh bags)
Tighten belt (1-2cm sag when pressed) or replace with heat-resistant polyurethane belt

3. Discharge Port Blockage (Oyster Pile-Up)

Key Causes

Poor discharge angle (too small, risky for shelled adults)
Burrs on SS304 port inner wall (catching shells)
Unsynchronized downstream gear (e.g., full Hexagonal Oyster Baskets not replaced)

Solutions

Set angle to 30-45° with our stainless steel angle-adjust bracket
Sand burrs with 800-grit sandpaper or add our HDPE anti-scratch strip
Assign 2 operators (1 monitor, 1 change baskets) or add auto-alarm for 80% full baskets

4. Control Panel Malfunction (Unresponsive Buttons, Wrong Displays)

Key Causes

Moisture in circuits (seawater/cleaning water leakage, high-humidity workshops)
Faulty sensors (loose wiring for weight/speed sensors)
Program glitch (parameter loss after power outage)

Solutions

Power off, blow dry with compressed air; replace with our food-grade silicone seal; use waterproof cover when cleaning
Reconnect sensor terminals; replace with our corrosion-resistant pressure sensor (±0.1% accuracy)
Restore factory settings or import backup program via USB (contact tech support)

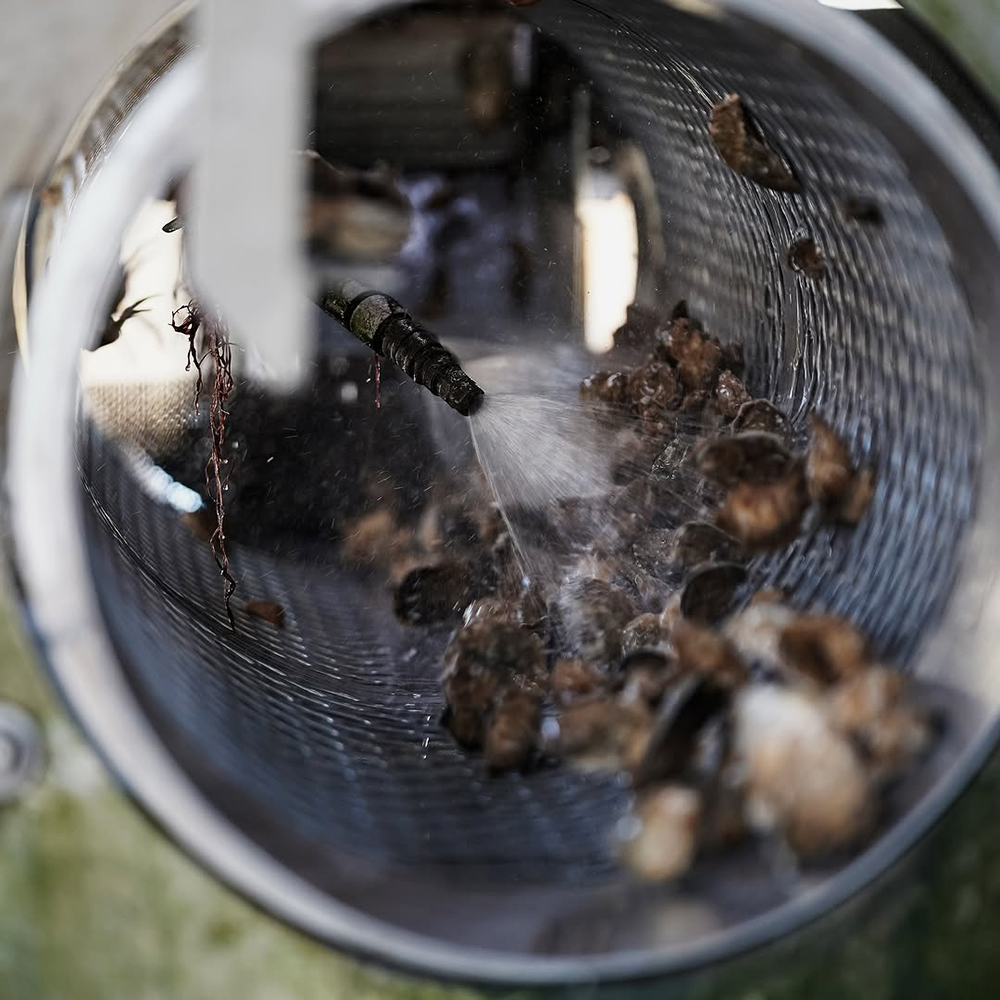

5. Incomplete Impurity Removal (Residual Sediment/Algae)

Key Causes

Failed roller cleaning (clogged nozzles, wrong angle)
Insufficient tumbling (poor water contact, common with Cylinder Oyster Tumbler-harvested adults)
Low cleaning water temp (<5℃ in winter, high sediment adhesion)

Solutions

Unclog nozzles with wire, set angle to 45°; use our stainless steel high-pressure nozzle (2x longer life)
Increase speed by 2-3rpm; add 2-3 HDPE mixing protrusions (no shell scratches)
Heat water to 10-15℃ with our stainless steel heater in winter

6. Excessive Vibration (Shaking Body, Loose Feet)

Key Causes

Loose anchor bolts (high-frequency operation, uneven floors)
Unbalanced roller (uneven mesh wear, internal debris)
Aged motor shock pads (lost cushioning)

Solutions

Tighten bolts with torque wrench; use our 316 stainless steel anti-slip bolts; add stainless steel leveling feet for uneven floors
Clean debris; replace worn mesh sections with our replaceable HDPE roller mesh
Replace with our oil/seawater-resistant rubber shock pads (≤5mm compression); check elasticity every 6 months

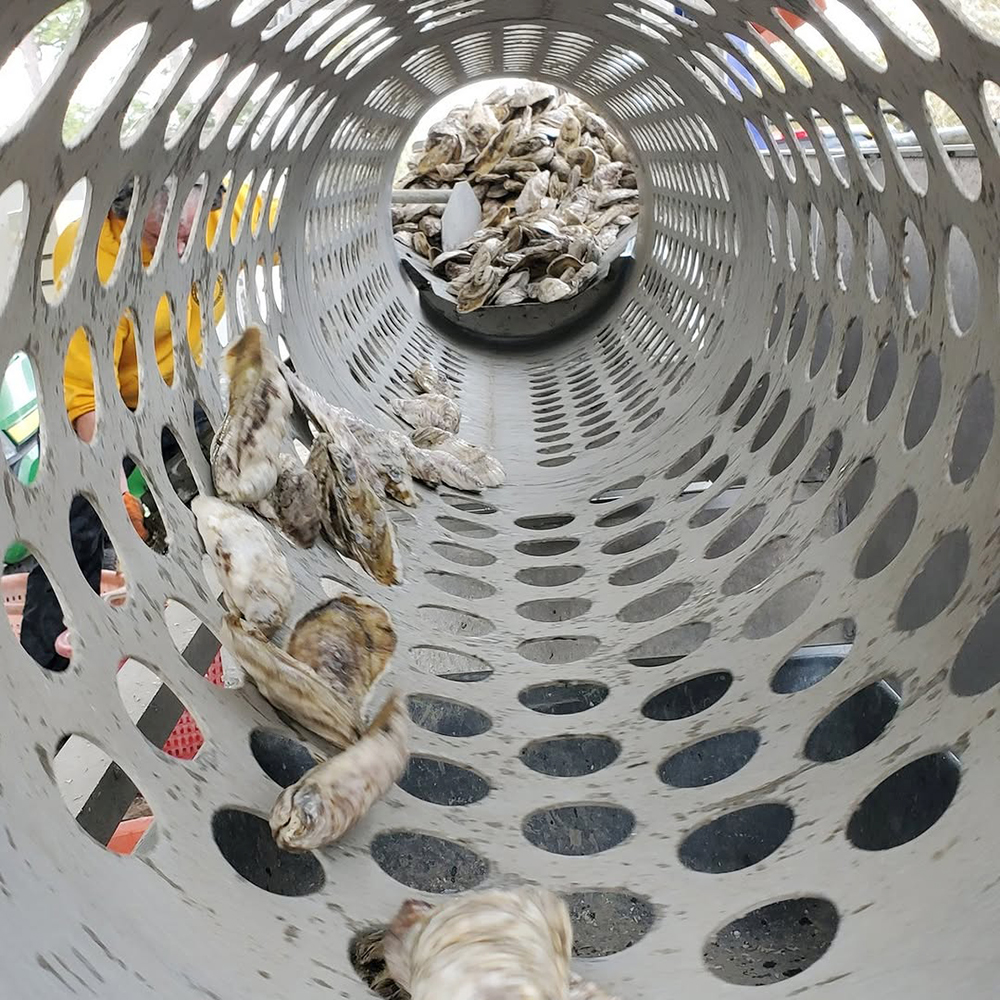

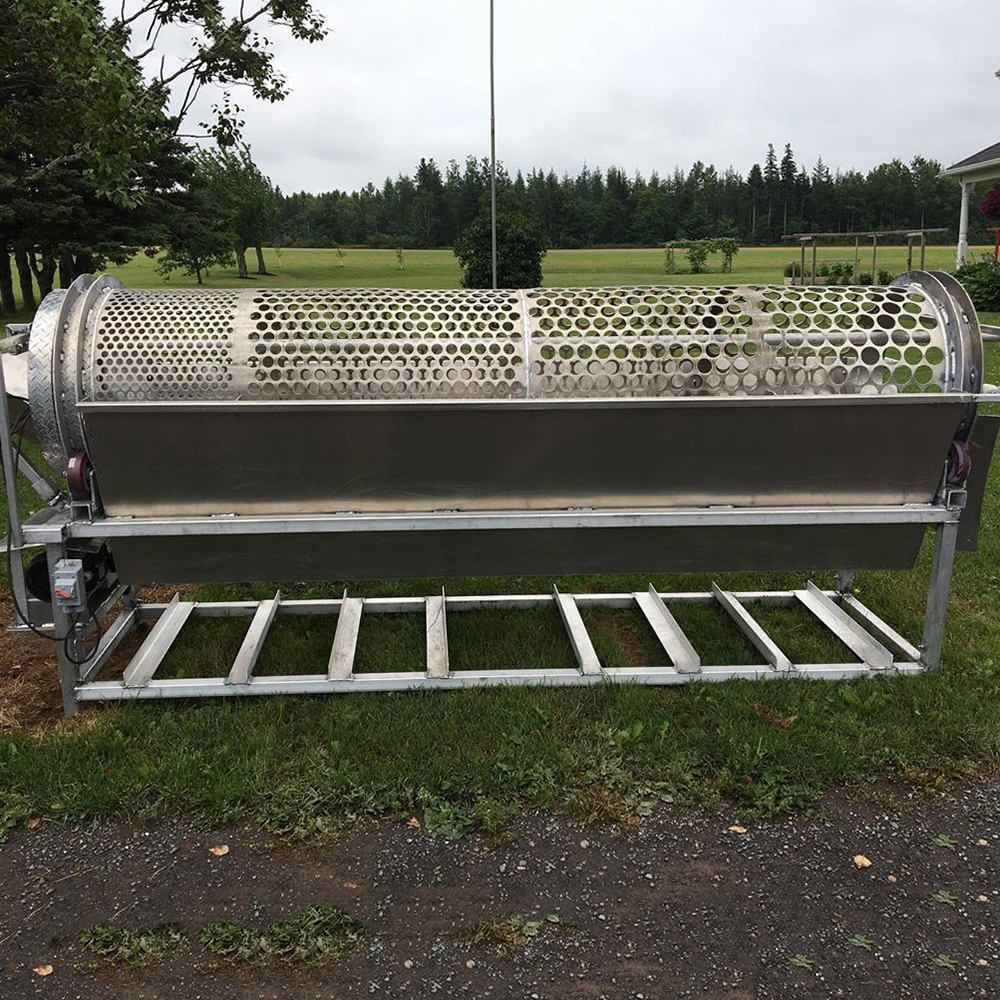

rolling design of oyster sorting machine (1)

rolling design of oyster sorting machine (2)

Production and Shiping of Oyster Tumbler Sorter (1)

Production and Shiping of Oyster Tumbler Sorter (8)
