Product details

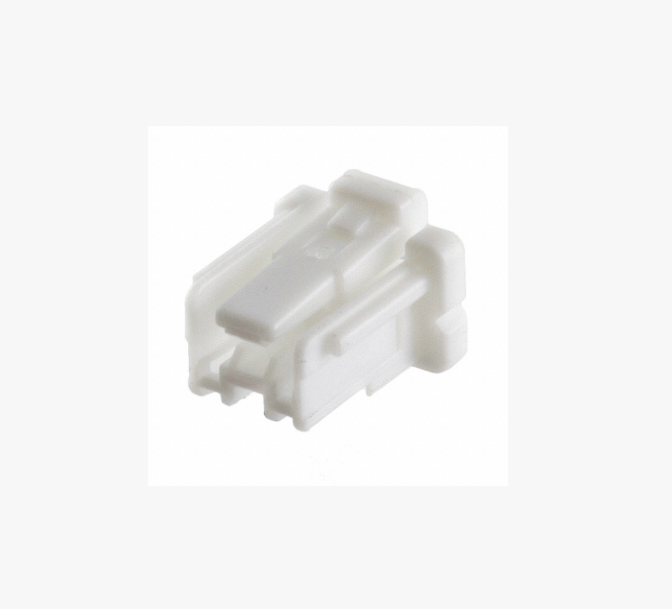

JST NSHR-02V-S is a 1.0 mm pitch secure lock type connector. This low insertion force type connector realizes easier mating operation. The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector.

Product Profile

Series: NSH connector

Category: Crimp Style Connectors (Wire-to-Board type)

PC Board mounting : SMT

Mating Direction: Side entry, Top entry

Array(Insertion part) : Single-row

Lock: Secure lock (Outer), Secure lock (Center)

Standard: UL

Specification

Pitch:1 mm

Circuit:2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15

Current Rating:1 A AC/DC (AWG #28)

Voltage Rating:50 V AC/DC

Temperature Range:-25℃ to +85℃

Insulation Resistance:100 MΩ min.

Withstanding Voltage:There shall be no breakdown or flashover while applying 500 VAC for one minute.

Conductor Size:AWG #32, #30, #28

0.032 mm² to 0.08 mm²

Insulation O.D.:φ0.4 mm² to φ0.8 mm²

Remarks:Potting Type Header:Available

Wire-to-Wire Adapter available
