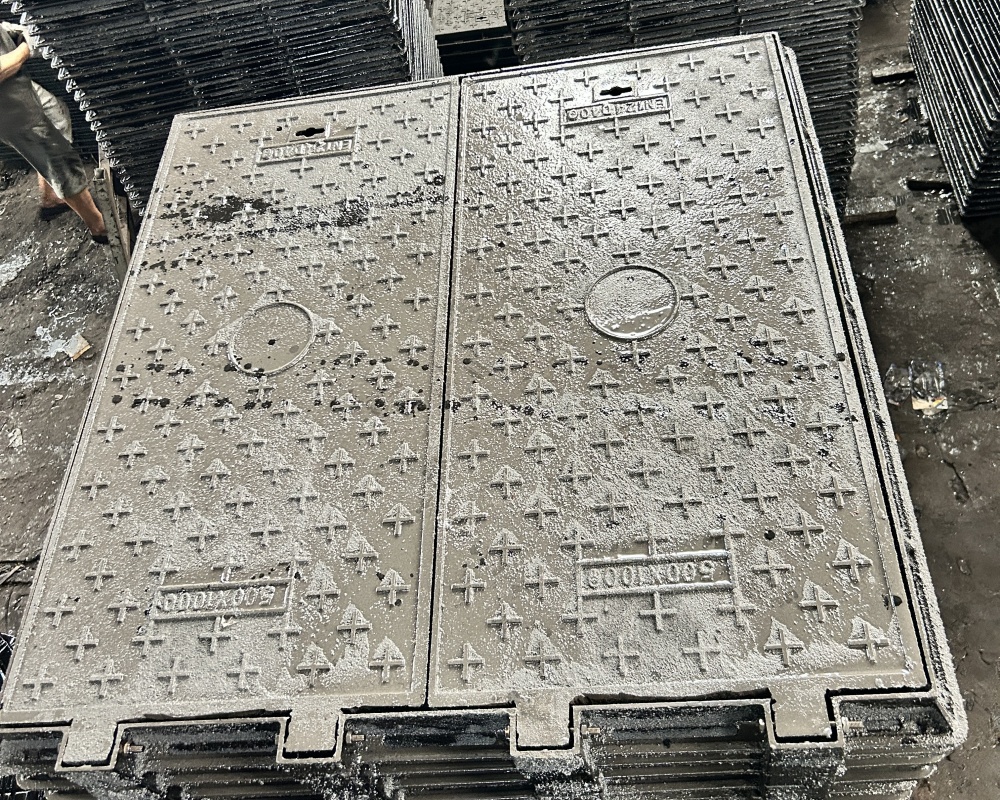

D400 Rectangular Ductile Iron Manhole Cover (600×1200 mm)

Overview

This D400-class rectangular manhole cover, sized 600×1200 mm, is crafted from high-strength ductile iron and designed for heavy-duty infrastructure. Its robust structure and non-slip surface make it ideal for main roads, freight areas, loading bays, and high-traffic utility zones.

Key Features:



  • Load Class D400: Designed to withstand loads up to 40 tons, suitable for roads, highways, and industrial zones.

  • 600×1200mm Size: Ideal for wide cable trenches, utility vaults, and custom access openings.

  • High-Strength Ductile Iron: Excellent resistance to impact, corrosion, and wear for long service life.

  • Anti-Slip Surface Design: Enhances safety for vehicles and pedestrians.

  • Precision Casting: Ensures tight fit, minimal noise, and stable performance under traffic.

  • Custom Options Available: Logos, locking mechanisms, frame styles, and surface patterns can be tailored to project requirements.

Key Specifications

Load Rating D400 (EN 124 compliant)
Dimensions 600 mm × 1200 mm
Material Ductile cast iron (nodular graphite)
Shape Rectangular

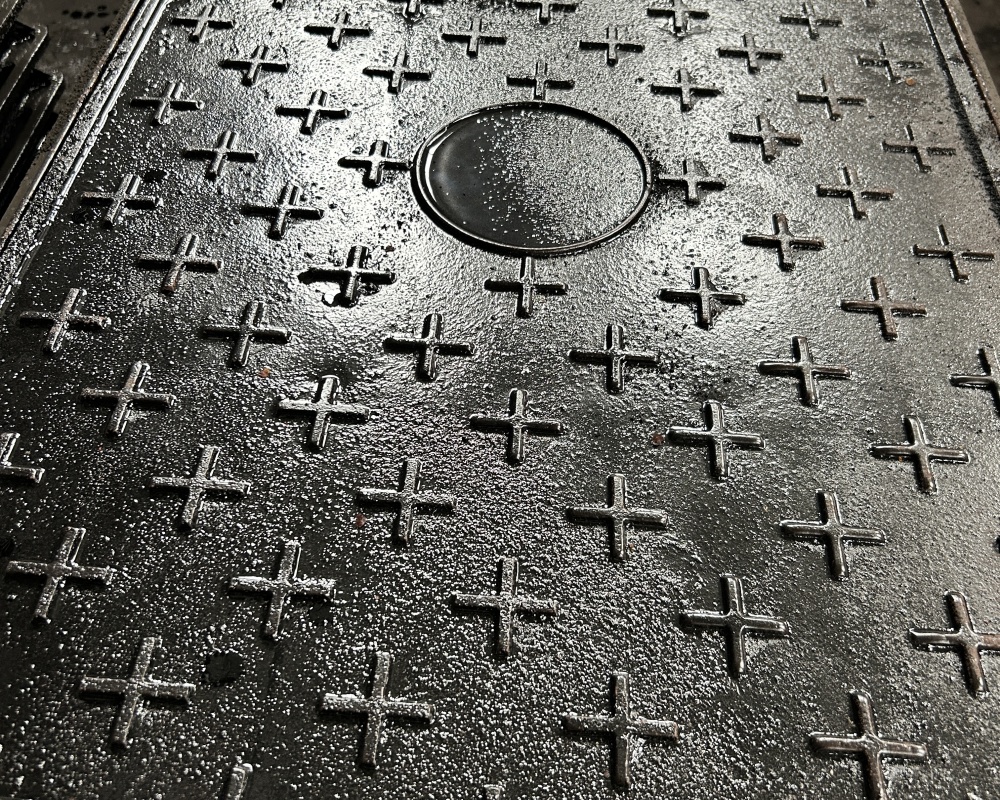

Surface Pattern Anti-slip grid texture
Load Capacity Up to 400 kN (≈ 40 tons)
Locking System Optional bolt or tamper-proof locking
Application Scenario Mall, Sports Venues, Other, Park, School, Hospital, Office Building, Hotel, Outdoor
Design Style Contemporary, Traditional, Modern, Chinese
Place of Origin China

classification
IMG_0535500x1000 c250rectangle details
500x1000 two-sides

If you need a version with technical specifications, installation instructions, or multi-language support, feel free to ask!
