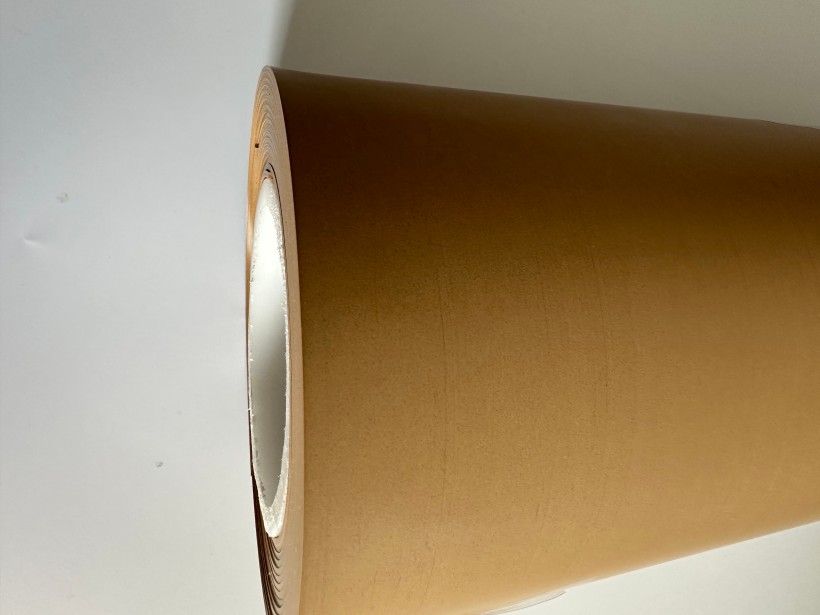

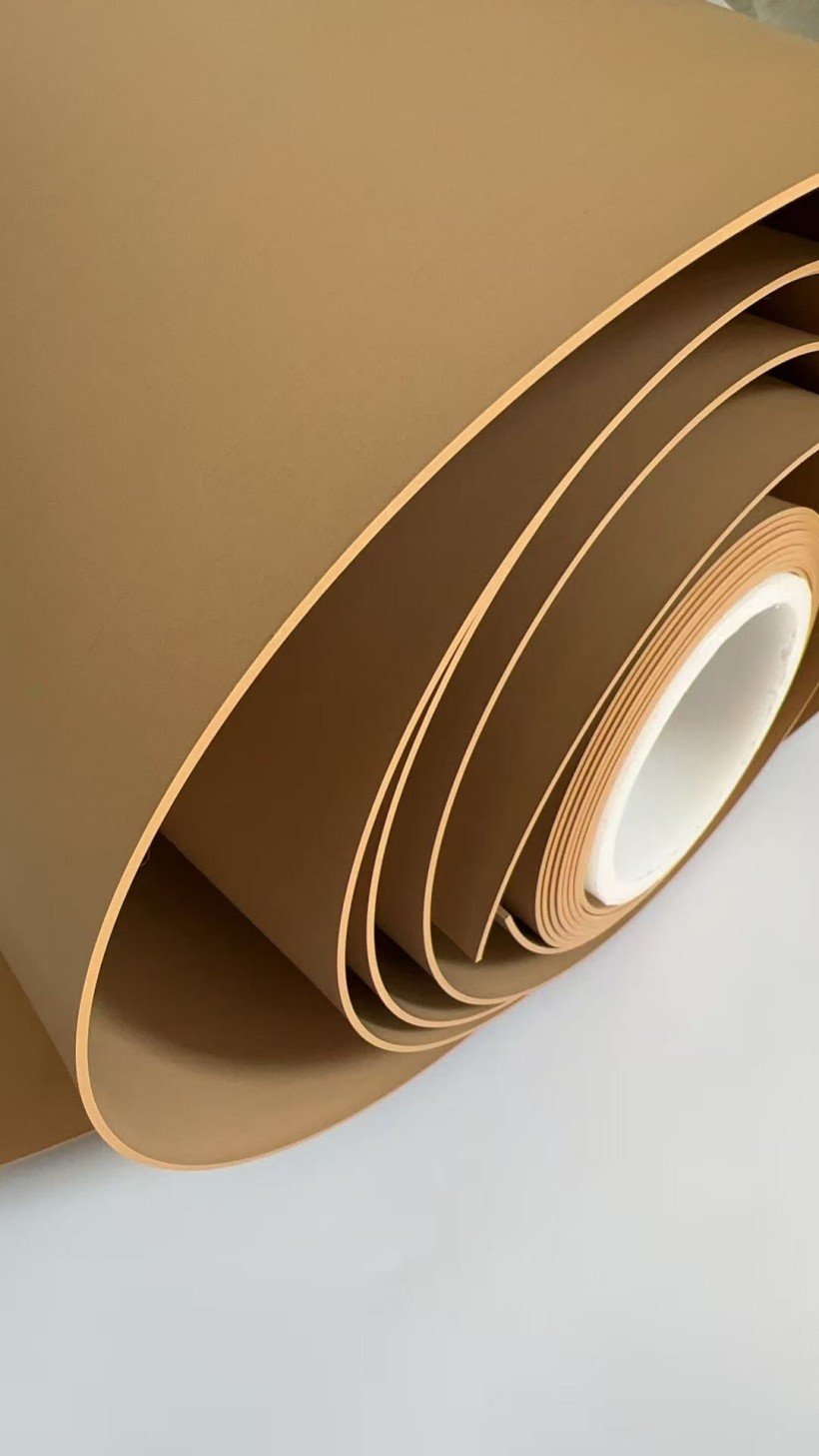

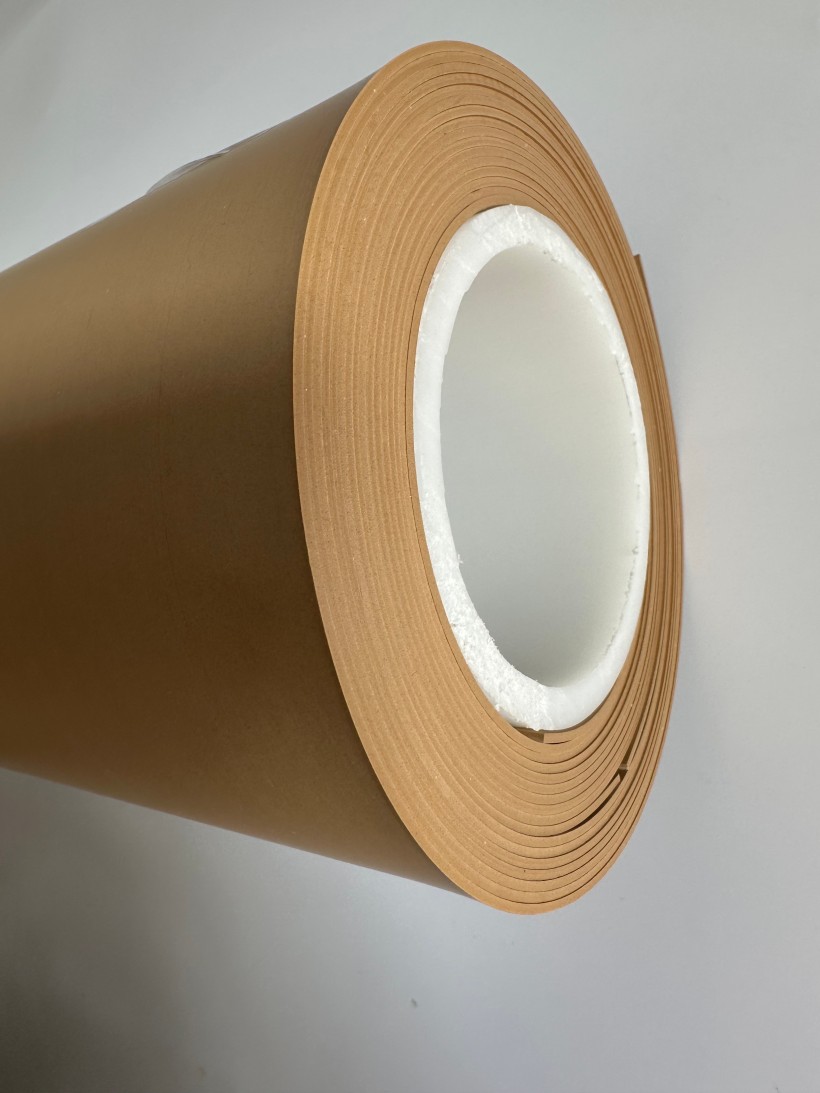

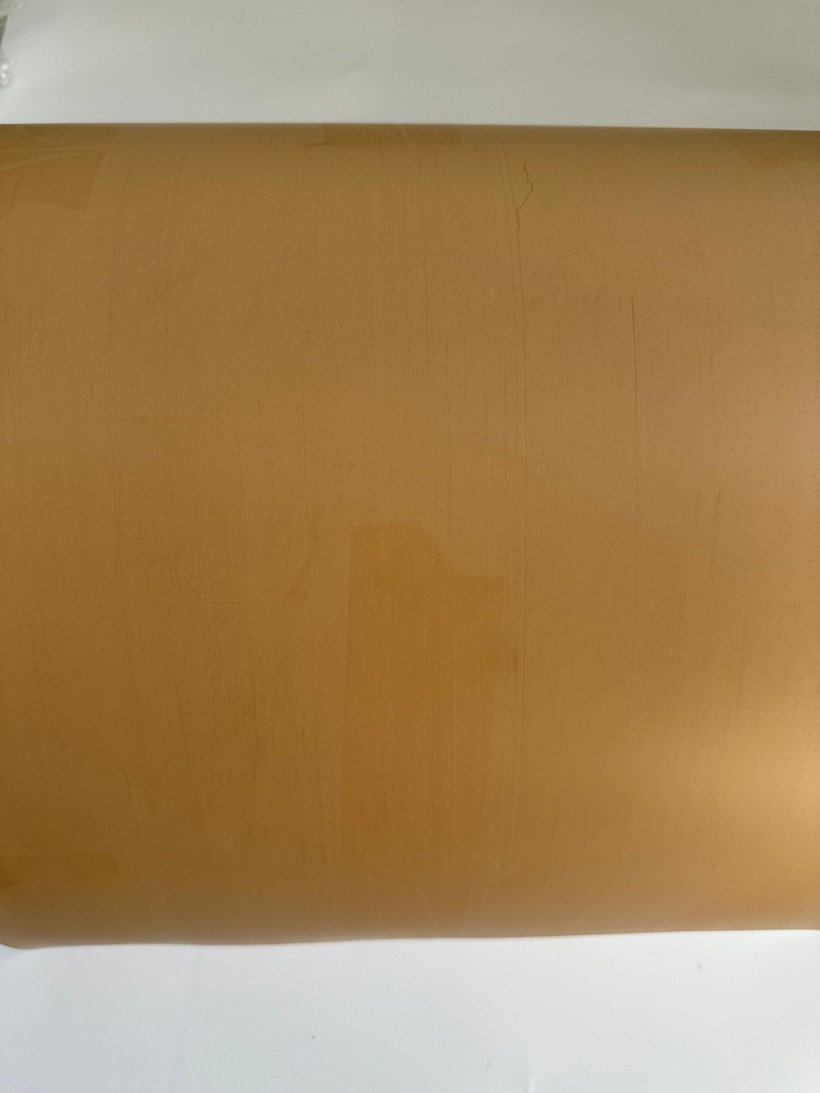

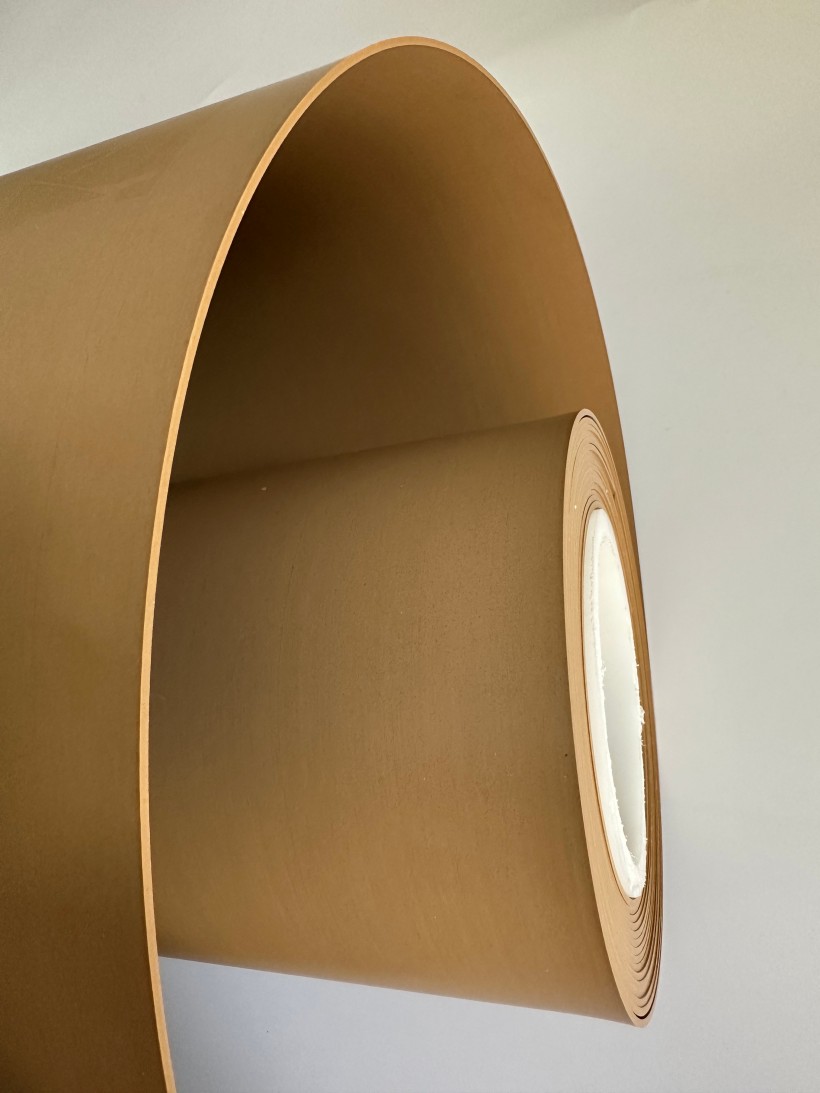

Rulon J sheets films Gold tint color

Rulon J sheets films Gold tint color

2 month ago

2 0

Hony Engineering Plastics Limited

 5 year year

Product details

One of the original Rulon compounds, Rulon J is a reinforced material that combines the best in wear and friction properties with superior value.

Gold colored, Rulon J uses a unique filler that adds temperature stability for enhanced wear. It is considered a “shaft-friendly” compound and operates well against soft mating surfaces such as 316 stainless steel, aluminum, mild steel, brass and other plastics.

Rulon J has a PV rating of 7500; which is one of the lowest of all PTFE-reinforced materials. It is ideally suited for start/stop applications where stick/slip must be eliminated. It is not recommended in steam or otherwise wet environments.

When you want low maintenance, self-lubrication, and the lowest coefficient of friction of any PTFE blend, consider Rulon J.

Rulon® J is a specific type of Rulon®, a PTFE (polytetrafluoroethylene)-based composite material, known for its gold color, exceptionally low coefficient of friction, and ability to perform well against soft mating surfaces like stainless steel, aluminum, and brass. It features a unique filler that enhances temperature stability and provides superior wear and friction properties, making it ideal for high-speed, low-load applications where low friction and self-lubrication are crucial.

Color

Dull Gold

Performance

Max Load "P" (psi) Mpa: 750/5.2

Max Speed "V" (fpm) m/s: 400/2.0

Max "PV" (psi-fpm) (Mpa × m/s): 7,500/0.26

Mating Surface Steel and Stainless Steel

Rb25 and higher

Aluminum

Environment

Dry, vacuum

Relative Rating (1=Low, 5=High)

Coefficient of friction: 1

Creep resistance: 3

Insulative property: Yes

Key Characteristics

Material:

An all-polymeric, reinforced PTFE composite, often described as a gold-colored fluoropolymer.

Low Friction & Wear:

It boasts one of the lowest coefficients of friction among commercially available Rulon materials.

Soft Mating Surfaces:

It is "shaft-friendly" and performs exceptionally well against softer materials such as 316 stainless steel, aluminum, and mild steel without causing damage.

Temperature Stability:

A unique filler is added to provide improved temperature stability, which is beneficial for long-lasting performance.

Self-Lubricating:

The material is naturally self-lubricating, reducing maintenance requirements.

Common Applications

Rulon J is used in various demanding applications, including:

Bearings and Wear Components:

For tasks requiring wear resistance and low friction, such as in industrial compressors.

High-Speed Applications:

Its low friction makes it suitable for high-speed, low-load scenarios.

Agriculture:

Used in bearings for conveyor belts and suspension cylinders to withstand caustic environments and extreme weather.

Machinery:

Found in parts like wear pads, wear strips, and other components where elimination of stick-slip is important.
