Product details

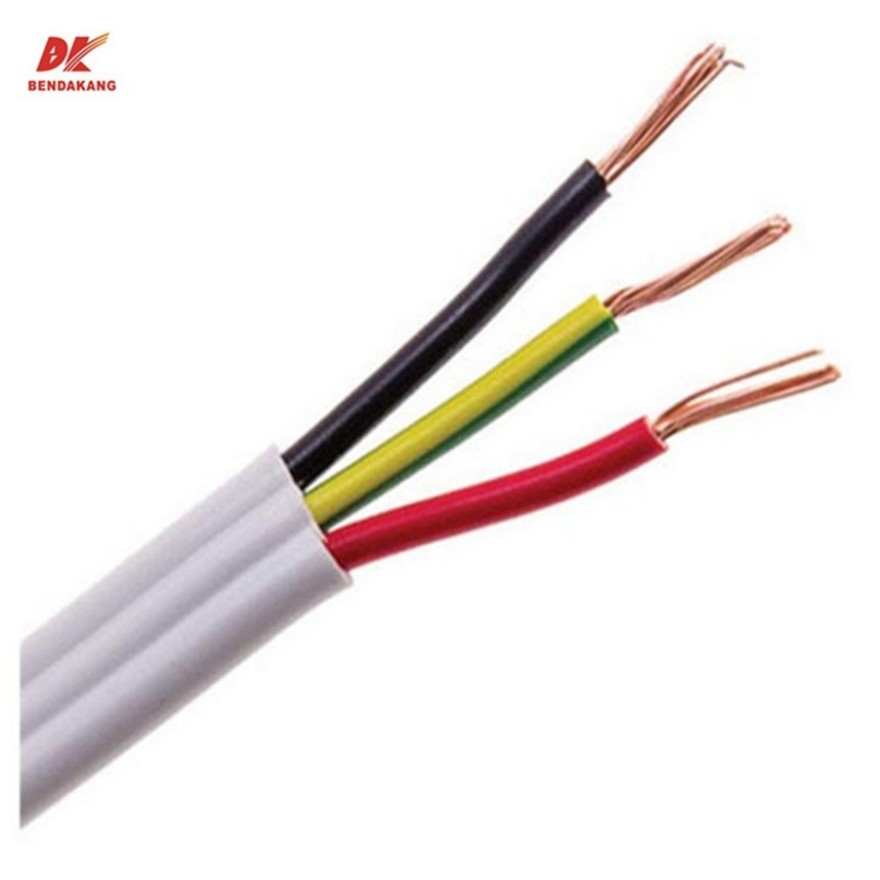

SAA 1.5mm²/2.5mm² Flat TPS Cable

This Flat Tps cable,a high-quality PVC Cable and specialized type of Electrical Wires,is a flat-type thermoplastic sheathed cable, which has obtained SAA certification and complies with relevant Australian standards. Its core structure is composed of stranded copper conductors, PVC insulation layer and thermoplastic sheath,making it a certified flat cable ideal for the Austrarlian and New Zealand markets.

SAA Certification: This is a mandatory safety certification for electrical products in Australia, which verifies that the cable meets standards like AS/NZS 5000.2.It is a core qualification for flat TPS cables to enter the Australian and New Zealand markets,ensuring this certified flat cable complies with local market access regulations.

TPS Definition: Short for ThermoPlastic Sheathed, this designation signifies that the cable’s sheath material boasts excellent high-temperature resistance and anti-aging performance.As a high-performance PVC cable,essential Electrical Wires and durable Building Wire,this Certified Flat Cable relies on this core material advantage to adapt to various electrical application scenarios.

1.Product Specifications

• Conductor Cross-sectional Area: Available in two options – 1.5mm² for low-power electrical appliances and 2.5mm² for medium-power equipment.

• Voltage Rating: Rated at 450/750V, it can fully satisfy the power supply requirements of both household and industrial scenarios.

• Temperature Range: Suitable for fixed installations in environments ranging from -40℃ to +90℃, and for mobile installations in conditions from -5℃ to +90℃, enabling it to adapt to various extreme working environments.

2. Production and appearance characteristics

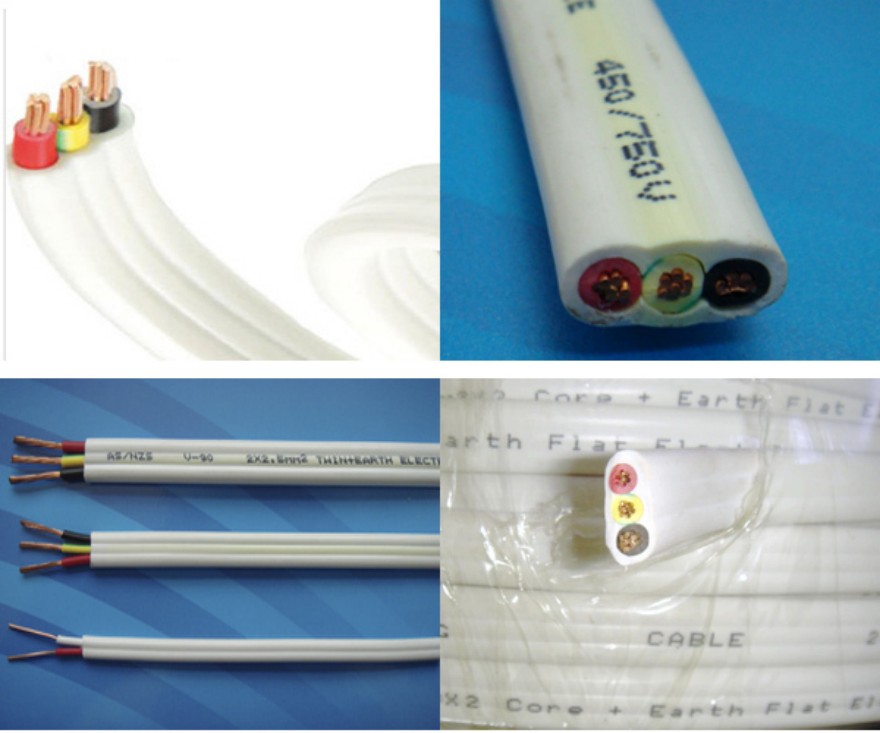

Structural design of Tps Flat Cable:

Flat shape: thin thickness and large width, convenient for wiring in narrow spaces, such as mobile homes and RVs.

Grooved surface: increases friction to prevent cable sliding and improves heat dissipation efficiency.

Multi-core configuration: 2-core, 3-core, and 4-core options are available, supporting single-phase or three-phase circuit connection.

Material selection:

Conductor: Class 1, 2, or 5 copper wires are used, with stable conductivity and strong oxidation resistance.

Insulation layer: PVC V90 material, temperature resistance up to 90°C, flame retardancy meets IEC 60332.1 standard.

Sheath: PVC 3V-90 thermoplastic material, UV resistance, chemical corrosion resistance, and extended service life.

Environmental protection characteristics:

Complies with RoHS or REACH directives, lead-free, halogen-free, low smoke and non-toxic when burning, reducing fire hazards.

3. Advantages of use

High safety:

The flame-retardant sheath effectively prevents the spread of flames and reduces the risk of fire.

Rated voltage 450/750V adapts to industrial high-voltage environment and avoids overload damage.

Easy installation:

Flat design reduces wiring space, small bending radius (fixed installation only requires 4 times the outer diameter of the cable), suitable for complex line layout.

Specifications, voltage and other logos are printed on the surface of the cable for easy construction identification.

Strong durability:

Wide temperature range, can be used for a long time in an environment of -40℃ to +90℃, adapting to the Australian climate.

Anti-mechanical stress design, resistant to vibration and stretching, reducing maintenance costs.

Cost-effectiveness:

Compared with round cables, the flat structure saves material costs and reduces transportation and storage space requirements.

4. Application scenarios

Residential and commercial buildings:

Used for concealed wiring in walls, under floors or ceilings to connect lighting, sockets and air-conditioning systems.

Example: In Australian home decoration, the 2.5mm² specification is often used in kitchen high-power electrical circuits.
