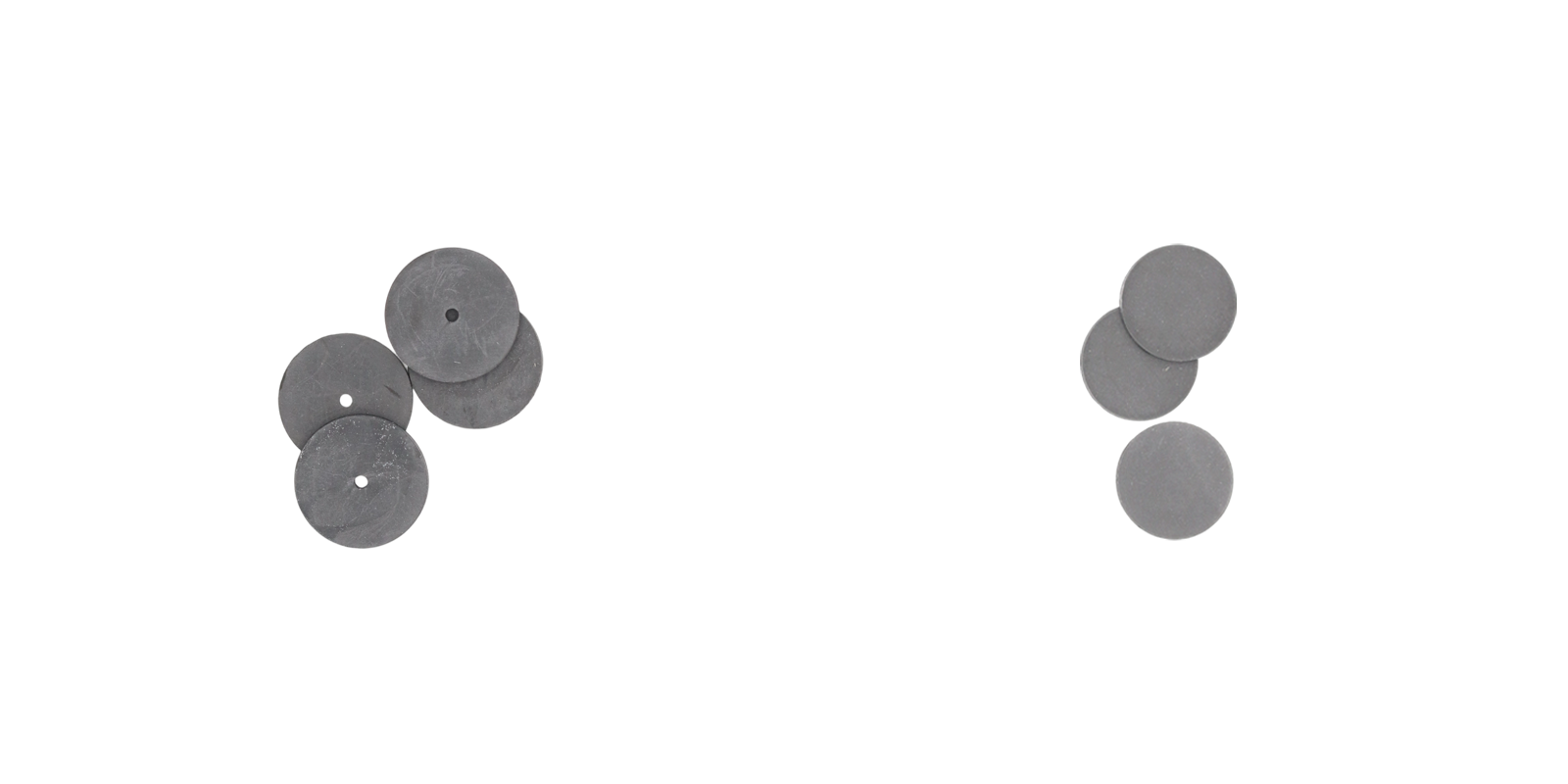

This is a diaphragm. It’s used for diaphragm pumps and metering pumps in pump-valve systems. It’s a core part of Diaphragms & Sealing Gaskets and Fluid-Tight Diaphragms in fluid transfer systems.It’s made specifically to work with Sealed Diaphragm Pumps and Sealed Fluid Transfer Pumps. It has a regular circular thin sheet shape. This shape makes it easy to fit the circular cavity structure inside diaphragm pumps and metering pumps. The shape also makes sure force is spread evenly. This lets the diaphragm work stably in the pump cavity.There are small holes in the middle of the diaphragm. These holes are for meeting specific functional needs. For example, in metering pumps, these holes can balance the pressure on both sides of the diaphragm. This makes sure the diaphragm moves back and forth smoothly. In some special pump-valve systems, the holes work as channels for tiny amounts of media to pass through. Its structural design meets the precision requirements of Pressure Seal Components and Gasket & Membrane Assemblies in high-efficiency fluid transfer equipment.
Product Features
1. Functions
1)Media Transfer and Isolation:In diaphragm pumps and metering pumps, the diaphragm is a key part for moving media. It moves back and forth. This changes the volume of the pump cavity. The change in volume lets the pump suck in and push out media. At the same time, it separates the media being moved from the pump’s driving parts very well. This stops the media from corroding, wearing, or damaging the driving parts. It makes the pump last longer. For instance, when moving highly corrosive chemical raw materials, the diaphragm makes sure the pump’s mechanical parts don’t touch the raw materials directly. This isolation function is the same as the protective role of Sealing Elements for Valves in harsh media environments.
2)Precise Metering:In metering pumps, you can control the number of back-and-forth movements the diaphragm makes. You can also control how far it moves each time. This lets you adjust the flow rate of the media being moved very accurately. The volume of media the diaphragm moves each time is fairly fixed. By adjusting how often the diaphragm moves or how far it goes, you can move media with precise measurement. This is very important in industries like chemical production, pharmaceutical manufacturing, and food processing. These industries need to add materials in exact amounts. This metering accuracy helps Micro Sealed Hydraulic Pumps and Sealed Fluid Direction Control Valves control things more precisely.
3)Sealing and Leakage Prevention:The diaphragm fits tightly against the inner wall of the pump cavity. This forms a well-sealed space. It stops media from leaking out into the outside environment. It also stops outside air from getting into the pump cavity. If air got in, it would affect how the media is moved and the quality of the media. This is especially important when moving toxic, harmful, flammable, explosive, or high-purity media. It makes sure production is safe and product quality is good. Its sealing performance meets the strict leak-proof standards of Pressure Seal Components and Fluid-Tight Diaphragms.
2. Required Characteristics
1)Excellent Flexibility and Elasticity:The diaphragm has to change shape by moving back and forth very often. Good flexibility and elasticity make sure it doesn’t get damaged easily during long-term, high-frequency movement. It also lets the diaphragm bounce back to its original shape quickly after changing shape. This keeps the pump’s normal working cycle going. For example, in diaphragm pumps that move back and forth hundreds of times every minute, the diaphragm must always keep great elastic performance. This mechanical property is like the elastic requirements of Diaphragms & Sealing Gaskets in dynamic fluid systems.
2)High Chemical Stability:Pump-valve systems move many different kinds of media. These media have different properties. So the material of the diaphragm must be able to resist corrosion from all these media. It must not have chemical reactions with the media. It also must not release harmful substances that could contaminate the media. For instance, when moving strong acidic media, you need diaphragms made of materials that resist acid well—like polytetrafluoroethylene. This stability meets the material standards of Sealing Elements for Valves in complex chemical environments.
3)Good Mechanical Strength:When the diaphragm is working, it not only bears changes in pressure inside the pump cavity. It also takes forces like friction and impact during movement. So it needs to have high tensile strength, tear resistance, and wear resistance. This stops problems like breaking or wearing down too much. It makes sure the pump-valve system works stably. This structural strength meets the durability requirements of Gasket & Membrane Assemblies in high-pressure working conditions.
4)Precise Dimensional Accuracy:How well the diaphragm fits with the pump cavity directly affects the pump’s sealing performance and work efficiency. So the diaphragm must have precise dimensions. This makes sure it fits tightly with the pump cavity. It reduces the chance of leakage. It also makes the pump work more stably. This precision meets the assembly standards of Sealed Diaphragm Pumps and Sealed Fluid Transfer Pumps.
5)Wide-Range Temperature Resistance:Pump-valve systems work in different environments and process flows. Their operating temperature can be very different. The diaphragm needs to keep stable physical and chemical properties within a certain temperature range. Like from -20℃ to 120℃, or even a wider range. At high temperatures, it must not get soft, change shape, or get old. At low temperatures, it must not become brittle and lose elasticity. This ability to adapt to different temperatures meets the environmental resilience requirements of Pressure Seal Components in diverse industrial scenarios.
