This series servo motor is our company latest research and development iterm, have good customer feedback, be widely used in all kinds of intelligent robot, for example: AGV( automatic guided vehicle) system, intelligent vehicle robot, caterpillar vehicle, crawler vehicle, exploder clearing robot, fire fighting robot, rescue robot, medical robot, underwater robot, routing inspection robot, customer service robot, shopping guide robot, receptionist robot, theme park robot etc.

24V 48V 250W BLDC Motor

Product Description

Rated Voltage:12VDC-96VDC
Rated Power:50W-15KW
Can reach grade1energy efficiency
Fast response speed, high heat conduction efficiency, fast heat dissipation and slow temperature rise
The multi-slot pole design has small cogging pulsation torque and the motor runs smoothly, safely and reliably.
The stator uses H-class enameled wire, which is resistant to high temperature and has strong overload capabilitly.
The rotor adopts our own national patented technology (ZL 2016 2 0037092.7) and has strong stability.
Support customization.

Parameter

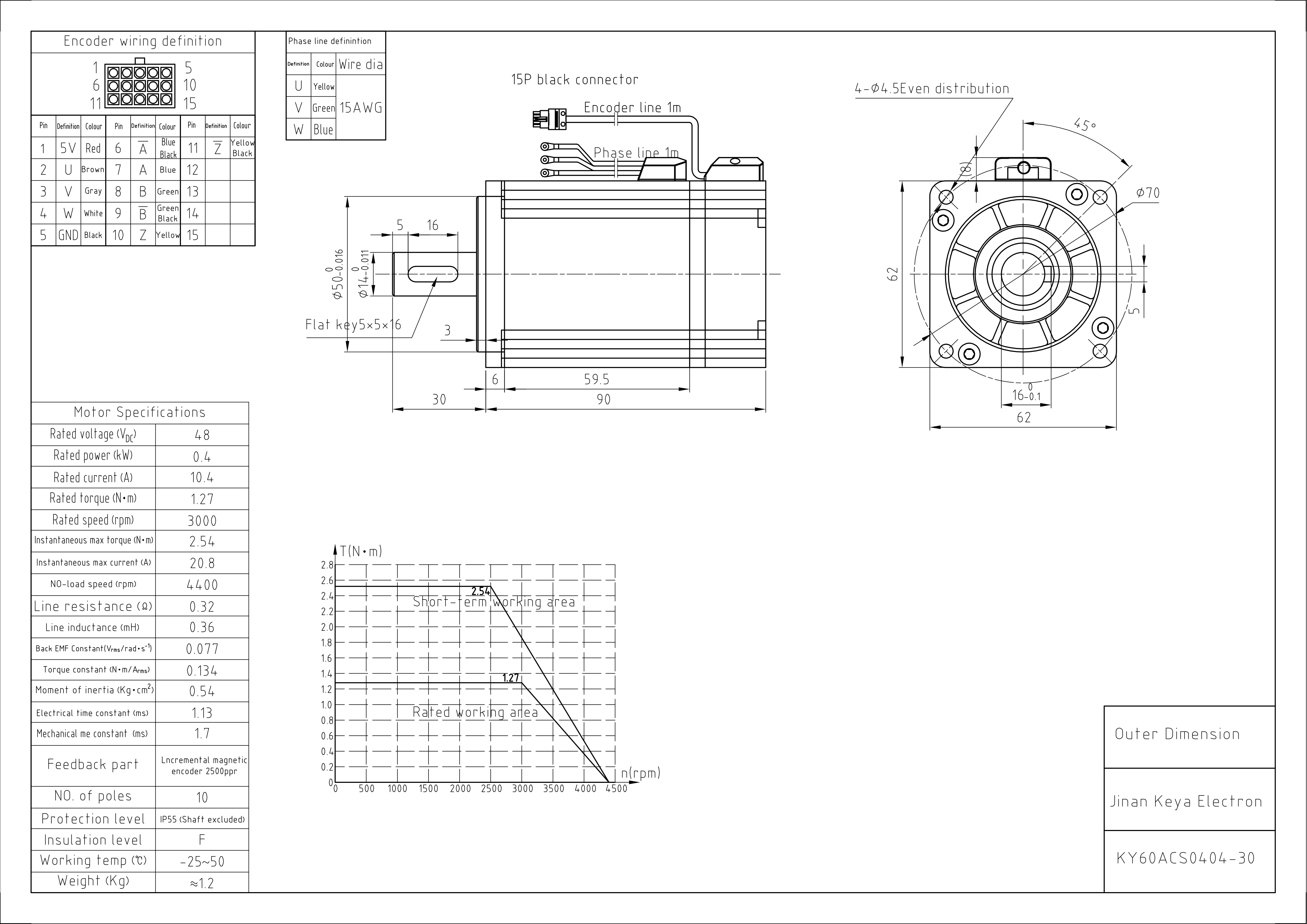

Specification for KY60ACS0415-15
Rated voltage	DC48V
Rated power	1500w
Rated speed	3000rpm
Rated current	10.4A
Rated touque	1.27N.m
Instantaneous max torque	28.7N.m
Instantaneous max current	117A
Max speed	1950rpm
Torque Constant	0.3N.m/A
Number of Pole pairs	5Pairs
Brake (Optional)	* Rated voltage: 24V * Power: 72W * Braking condition: brake when power is off

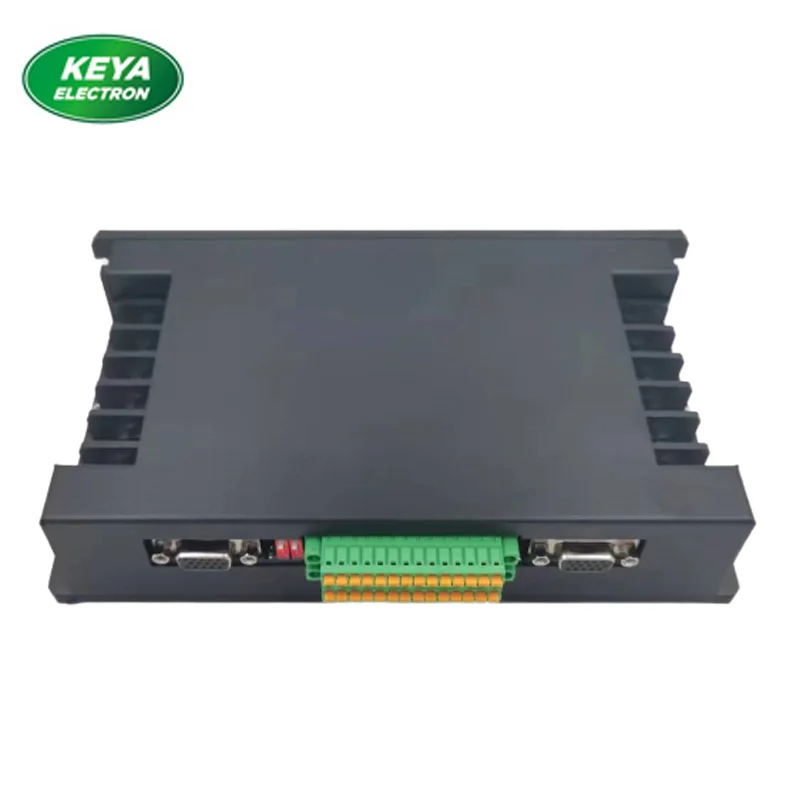

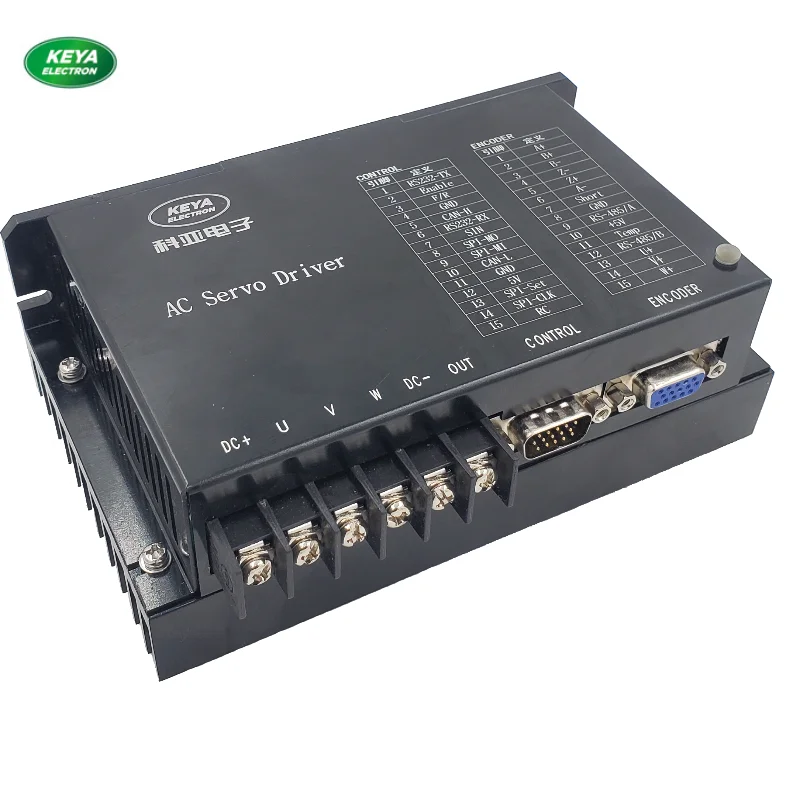

Recommended Driver controller

KYDAS4801A

DC48V 30A

under 1500W

KYDAS41002A

DC48V 50A
under 1500W

Wiring Definition

Motor			Encoder
MA/U	MB/V	MC/W	5V	A	B	Z	Hall A/U	Hall B/V	Hall C/W
MA/U	MB/V	MC/W	Red	Gray	Green	Yellow	Brown	Blue	Orange
Yellow	Green	Blue	0V	A-	B-	Z-	Hall A/U-	Hall B/V-	Hall C/W-
Yellow	Green	Blue	Black	White/ Gray	White/ Green	White/ Yellow	White/ Brown	White/ Blue	White/ Orange

Shieled Wire		Black (thick)
Brake		Two black cables,regardless of posive and negative.

Related products

Packing & Delivery

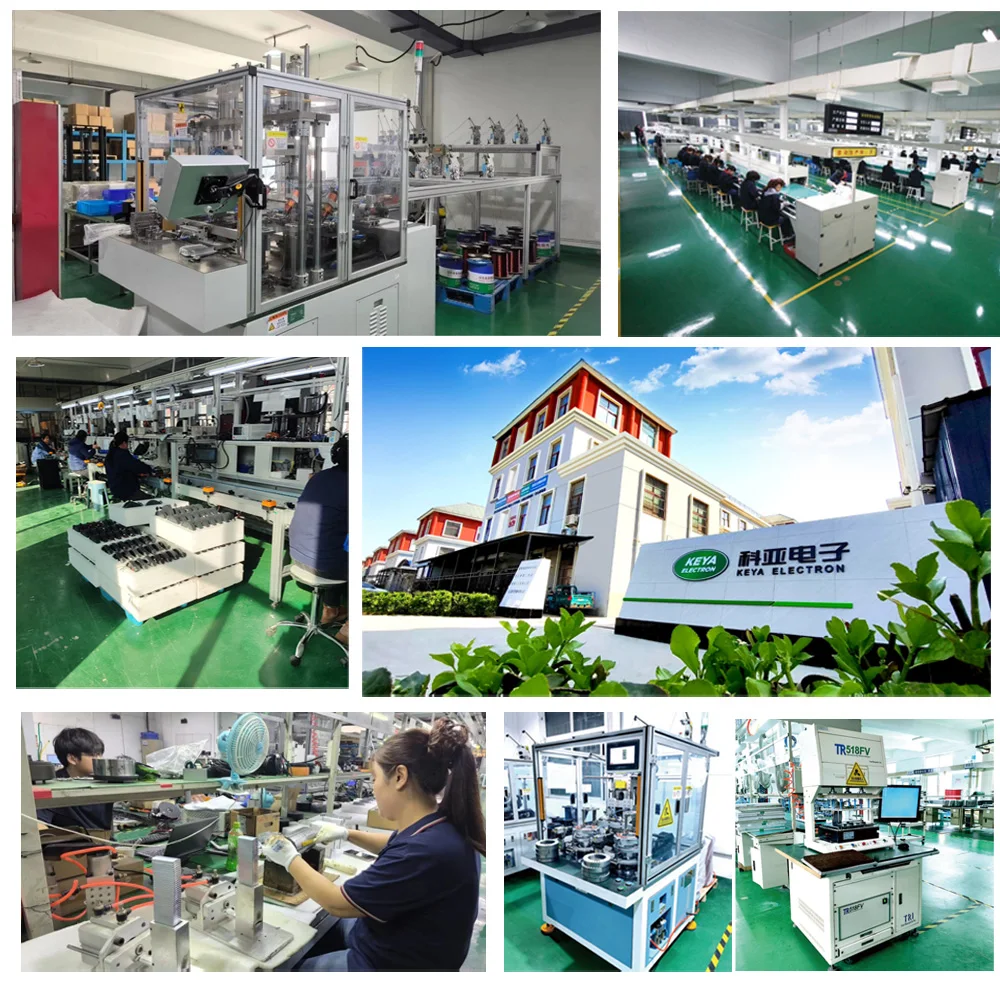

Company Profile

Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.

Exhibition

Our customers

FAQ

1. Q: What are your main products? A: We are specialize in BLDC SERVO MOTOR & DRIVER

2. Q: How long have you been in this field? A: More than 15 years in this field.

3. Q: Do you have your own R&D team? A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.

4. Q: How soon can you deliver the goods? A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

5. Q: Can you make the product according to customer’s requirements? A: Yes, welcome costom-made products. 6. Q: What is your payment term? A: You can pay by TT, Paypal, Western Union.
