1.1 Verify Original Valve Model and Specifications

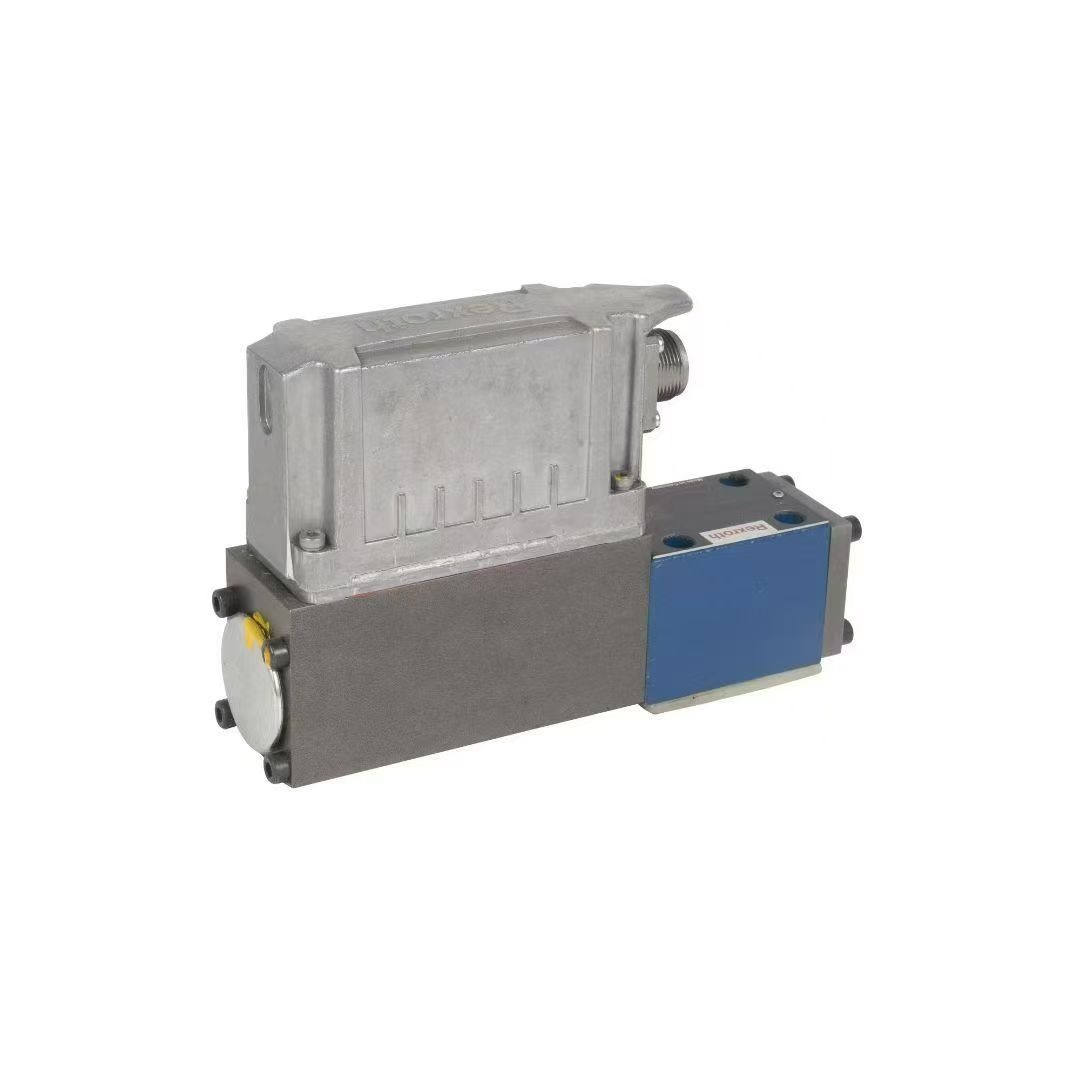

• Model Identification: Obtain the model number from the valve nameplate or technical documentation (e.g.,4WRPEH6C3B40L-2X/M/24).
• Key Parameters:
• Rated Pressure(e.g., 350 bar)
• Maximum Flow Rate(e.g., 40 L/min)
• Control Method(electro-hydraulic proportional, PWM signal, etc.)
• Port Sizes(e.g., G1/2, M22×1.5)
• Electrical Interface(e.g., DIN 43650 plug, M12 connector)
1.2 Select a Replacement Valve
• Direct Replacement: Choose the same Rexroth series model (e.g., a newer version of4WRPEH6C3B40L-2X/M/24).
• Cross-Series Replacement: If the original model is discontinued, match a functionally equivalent model:
• Original:4WRPEH(with integrated electronics) → Replacement:4WRPEH(new version) or4WRDEH(with digital electronics).
• For higher precision, upgrade to4WRPH(high-performance proportional valve).
• Third-Party Compatible Valves: Some brands (e.g., Parker, Moog) offer Rexroth-compatible valves. Confirm electrical protocols (e.g., CANopen, PWM) and mechanical dimensions match.
1.3 Verify Compatibility
• Mechanical Fit: Check installation dimensions, thread interfaces, and port locations against the original system.
• Electrical Compatibility: Ensure control signal type (voltage/current control, PWM frequency) and feedback signals (if any) align with the controller.
• Performance Matching: Confirm the replacement valve’s flow-pressure curve and response time meet system requirements.
2. Technical Parameter Comparison Example
【表格】
Parameter Original Valve (4WRPEH6C3B40L-2X/M/24) Replacement Valve (4WRDEH6C3B40L-2X/M/24)
Rated Pressure 350 bar 350 bar
Max Flow Rate 40 L/min 40 L/min
Control Method Current control (0–2A) Current control (0–2A)
Feedback Type None Optional position feedback (LVDT)
Electrical Interface DIN 43650 M12 connector
Response Time ≤50 ms ≤40 ms
3. Installation and Commissioning Guidelines
3.1 Mechanical Installation
• Clean the System: Flush hydraulic lines thoroughly before replacement to prevent contaminants from entering the new valve.
• Align Ports: Ensure the new valve’s P, T, A, and B ports match the original system piping.
• Torque Specifications: Tighten bolts to Rexroth standards (e.g., M6 bolts: 10–12 Nm).
3.2 Electrical Connection
• Signal Matching: If the original valve uses voltage control (0–10V), the replacement must support the same range. For current control (4–20mA), adjust the controller output.
• Shielding: Ground shielded signal cables over long distances to avoid electromagnetic interference.
3.3 Commissioning Steps
1. Zero Calibration: Set the proportional valve’s zero position (spool position at no signal) via the controller.
2. Gain Adjustment: Gradually increase the input signal while observing system response. Tune the controller’s PID parameters.
3. Functional Testing: Run the system to verify stable pressure/flow with no oscillation or sticking.
4. Common Issues and Solutions
4.1 Valve Does Not Actuate
• Causes: No electrical signal, solenoid failure, or stuck spool.
• Solutions: Check signal wiring, measure solenoid resistance (typically 8–15Ω), and clean the spool.
4.2 Slow Response
• Causes: Low signal frequency, high oil viscosity, or internal leakage.
• Solutions: Increase PWM frequency (e.g., from 200Hz to 500Hz), use lower-viscosity oil, and inspect spool seals.
4.3 Excessive Heat
• Causes: Continuous high-pressure/low-flow operation or excessive valve port pressure drop.
• Solutions: Optimize system design (e.g., add a pressure-reducing valve) or select a pressure-compensated proportional valve.
