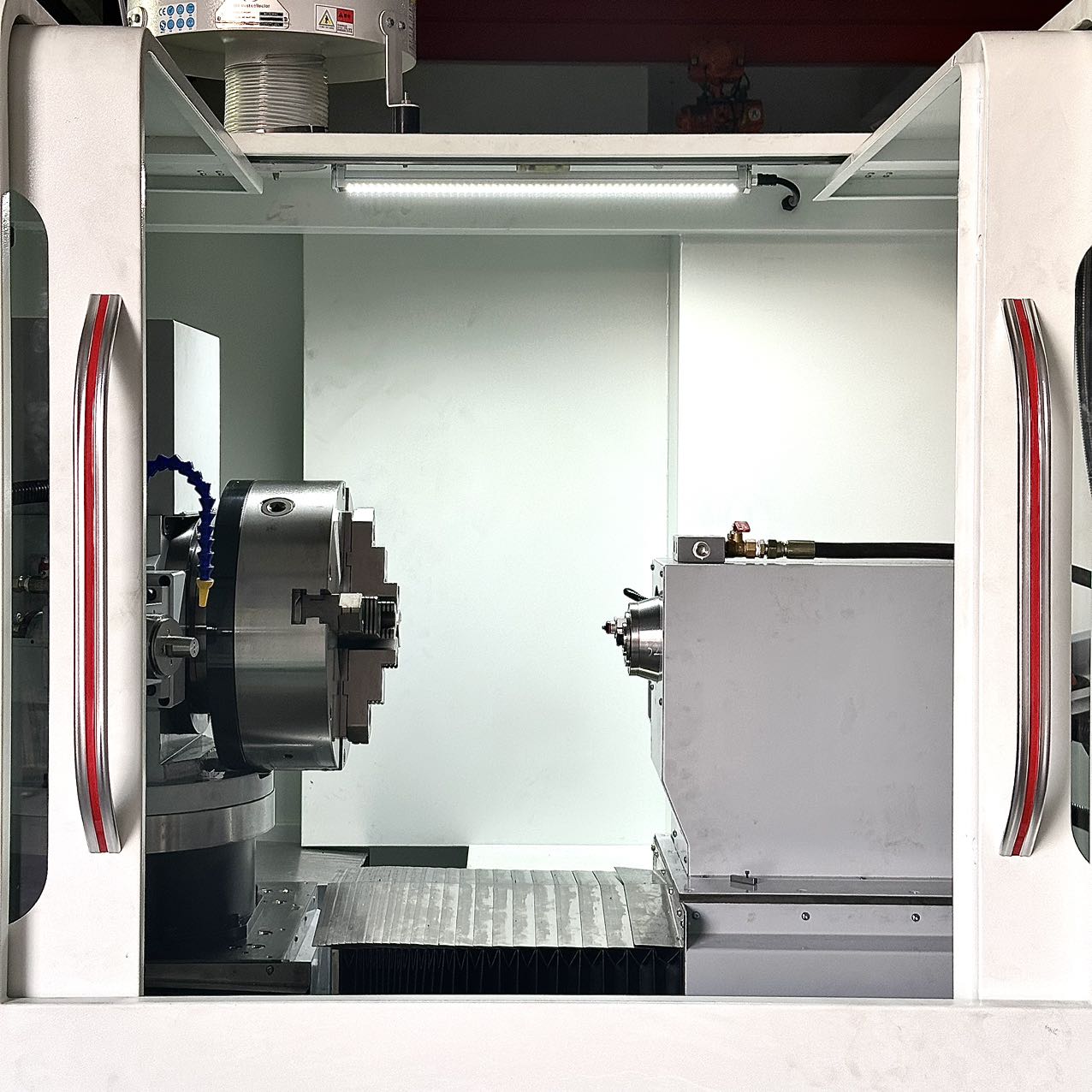

450L CNC Internal Grinding Machine with Auto Dressing

11 month ago

32 0

Dongguan Liyang Intelligent Technology Co., Ltd

 4 year year

Product details

Elevate Your Manufacturing Capabilities with the 450L Modular Grinding Center

Introducing our latest innovation in precision machining: the 450L CNC Internal Grinding Machine. Designed and manufactured with a focus on German precision engineering standards, this machine is an ideal solution for manufacturers seeking high-efficiency and ultra-high accuracy for complex workpieces. As a dedicated CNC internal grinding machine, the 450L specializes in internal diameter (ID) grinding, but its advanced capabilities allow for the completion of multiple operations in a single setup.

The 450L features a robust bed made from high-quality Meehanite cast iron, subjected to multiple artificial aging treatments to ensure long-term thermal stability and rigidity, effectively eliminating deformation during heavy-duty cutting . Equipped with a high-performance CNC system (such as Siemens or Fanuc), this CNC internal grinder offers user-friendly programming and macro cycles for both mass production and small-batch flexible manufacturing

Technical Specifications

Germany controller-Siemens 828D

Maximum workpiece length : 300mm

Load capacity : 200 kg

Workpiece mechanical spindle : 0-1000rpm

High Precision Optical Scalel : Renishaw

Hydraulic four-jaw chuck :16 inches

Magnet filter

Electric control box refrigeration air conditioning

Fully automatic oil filling

Customised handwheels: with button

Safety door switches

https://youtu.be/Qznf8EOPGVQ

FAQ Q1: What is the primary advantage of this compound grinding machine over doing the operations on two separate machines?

A1: The paramount advantage is the drastic reduction in cumulative tolerances. By finishing the bore and face in a single setup, you eliminate the positioning errors that occur when moving a part between two machines. This results in perfect perpendicularity and concentricity, higher quality, and much faster cycle times.

Q2: Can this machine grind materials other than steel, such as carbide or ceramic?

A2: Absolutely. The 450L is equipped with a powerful high-frequency spindle suitable for using CBN and diamond grinding wheels. By adjusting grinding parameters and wheel selection within the CNC, it can efficiently process hardened steels, carbides, ceramics, and other exotic materials.
