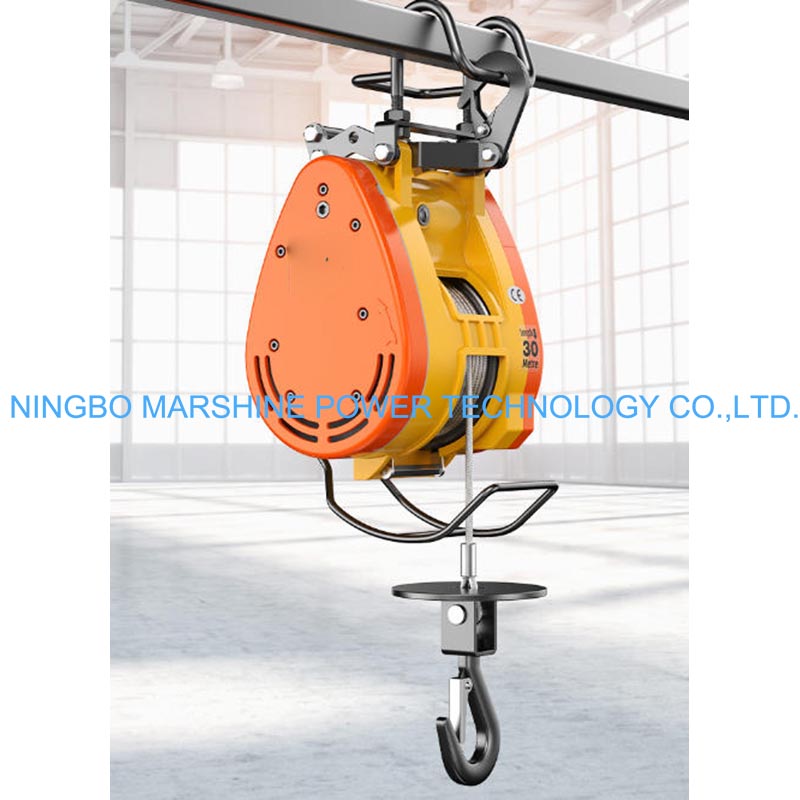

Dual-Hole 1600W Portable Small Hoist Cable Winch

The MARSHINE Dual-Hole 1600W Portable Small Hoist Cable Winch is featured with the 300kg load capacity, the 30m lifting height and the practical wireless remote control, which make it be a powerful lifting tool while designed to meet the needs of the medium-duty lifting tasks in the various scenarios. This hoist cable winch core advantage lies is balanced the combination of the load-bearing performance and the structural durability. This hoist is made of the high-quality materials, and this machine has a 300kg rated load, which can handle the lifting tasks of the items easily, such as the small machinery parts, the stacked cargo boxes and the building materials. The 5mm diameter hot-dip galvanized all-steel core wire rope is a key component, which allows it to maintain the good toughness and the load-bearing capacity even after the long-term use due to its strong anti-rotation and the wear-resistant properties. Its 30m rope length can provides a wide lifting range, which is suitable for the high-altitude operations, such as the warehouse cargo stacking and the construction site material transportation.

In terms of the power and control the efficiency, the MARSHINE Dual-Hole 1600W Portable Small Hoist Cable Winch can perform excellently. It is equipped with a 1.6kW high-power copper core motor while the copper core structure enables the motor to have a good heat conduction and the electrical conductivity, which can ensure the stable operation without the burning even under the long-term load tasks. The motor drives the hoist cable winch to achieve a lifting speed of 19m/min, and this speed is neither too fast to cause the unstable load lifting nor too slow to affect the work efficiency, which can keep well balance between the needs of the speed and the safety. The wireless remote control is a major highlight of its control method, which can arrived the control range of 200 m while there is no blind area in the signal. The operators can stand at a safe distance to control the lifting and the lowering of the hoist cable winch, which can avoid the potential dangers caused by being too close to the lifting area. At the same time, the remote control is designed with the simple and the clear buttons, which is able to operate easily and can be quickly mastered even by the novice users.

The MARSHINE Dual-Hole 1600W Portable Small Hoist Cable Winch is equipped with a full-angle limit device and a sensitive emergency stop limit switch. Once the hoist reaches the upper or the lower limit position during the operation, or there is an emergency situation, the switch can be triggered instantly to stop the hoist, which can effectively prevent the over-lifting or the over-lowering accidents. The hook of this machine is made of the manganese steel, which has the high hardness and strength. It is also designed with an anti-falling structure that is able to ensure the load will not fall accidentally during the lifting process. In addition, the hoist cable winch has a compact structure and a light weight that is easy to carry and install, which can fixed on the corresponding brackets in the warehouses, the construction sites and other places quickly.

Product Parameter

Model	DK300
Rated Load（Kg）	300
Standard Lifting Height（m）	30
Increase Speed（ m/min ）	19
Power（Kw）	16
Power Supply Voltage(v)	220
Size(Cm)	15829
Type	Wireless remote control
Weight（Kg)	36

Dual Hole 300kg Portable Small Hoist Cable Winch
