Product details

About the Product

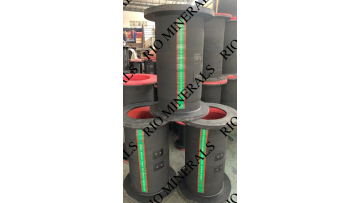

Rubber reducing pipes are designed to connect pipelines or hoses of different diameters, compensating for flow rate variations effectively.

Distinctive Features

oLined with proprietary RIO Latex Phase Compounded Rubber for superior wear resistance.

oFeatures high strength, excellent impact resistance, lightweight construction, and exceptional vibration absorption, ensuring durability and reliability in demanding applications.

oEasy to install.

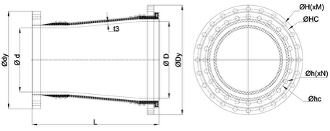

ØD	Ød mm	ØDy mm	ØHC	ØH	M	Ødy mm	Øhc mm	Øh mm	N	Weight
mm	Ød mm	ØDy mm	mm	mm	No.	Ødy mm	Øhc mm	Øh mm	No.	kg	lbs
102	76	220	180	18	8	200	160	18	8	13	29
127	102	250	210	18	8	220	180	18	8	16	36
152	102	285	240	22	8	220	180	18	8	18	40
152	127	285	240	22	8	250	210	18	8	20	45
204	127	340	295	22	8	250	210	18	8	24	54
204	152	340	295	22	8	285	240	22	8	26	58
254	152	395	350	22	12	285	240	22	8	31	67
254	204	395	350	22	12	340	295	22	8	34	76
305	204	445	400	22	12	340	295	22	8	38	83
305	254	445	400	22	12	395	350	22	12	42	92
355	254	505	460	22	16	395	350	22	12	48	105
355	305	505	460	22	16	445	400	22	12	51	112
405	305	565	515	26	16	445	400	22	12	59	130
405	355	565	515	26	16	505	460	22	16	64	142
457	355	615	565	26	20	505	460	22	16	73	161
457	405	615	565	26	20	505	460	22	16	80	177
508	405	670	620	26	20	565	515	26	16	87	191
508	457	670	620	26	20	615	565	26	20	94	207
610	508	780	725	30	20	670	620	26	20	116	256
