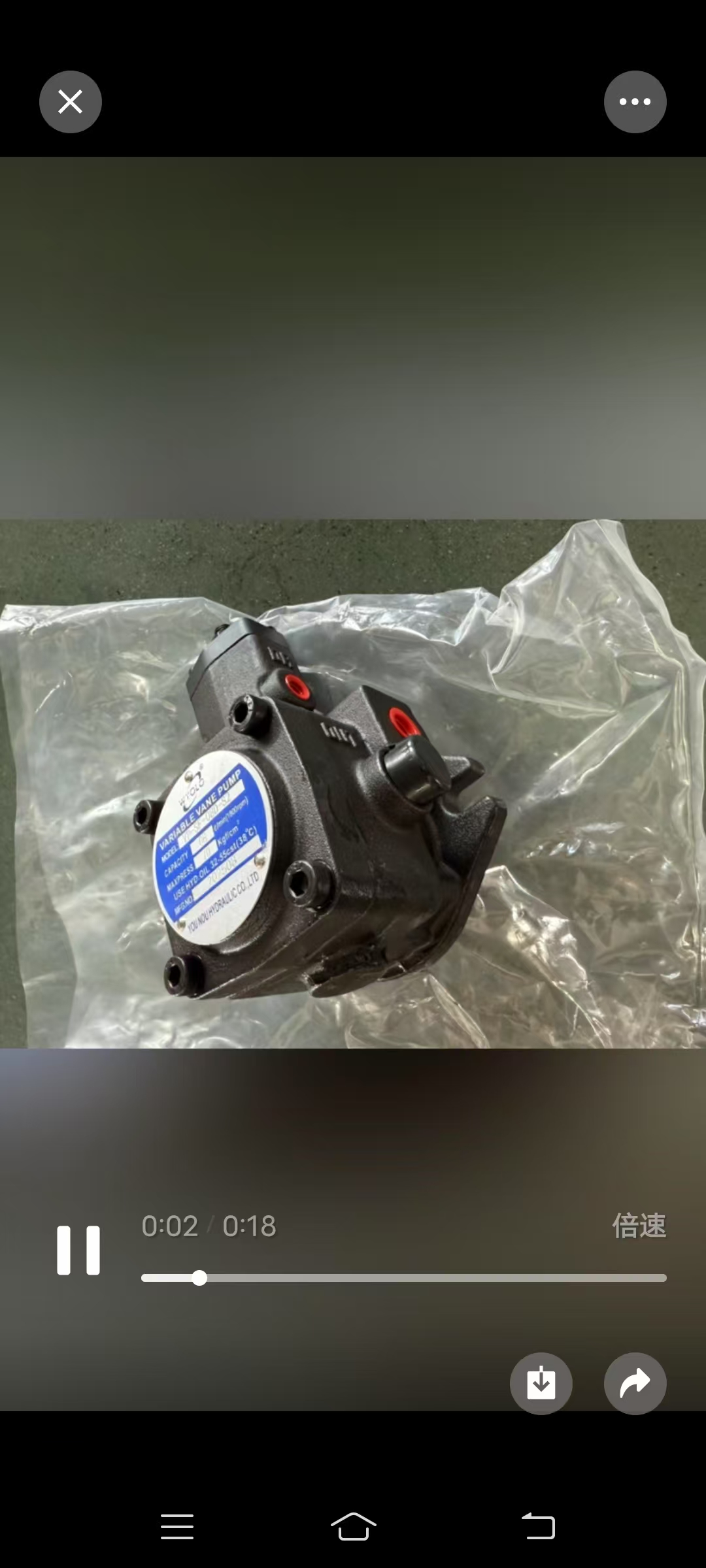

VP Variable Displacement Vane Pump

I. Introduction

The VP variable displacement vane pump is a crucial component in hydraulic systems, widely used in various industrial and mobile applications. It stands out for its ability to adjust the output flow rate according to system demands, offering enhanced efficiency and performance compared to fixed-displacement pumps.

II. Working Principle

1. Basic Structure

• Rotor: The rotor is the central rotating part of the pump. It has multiple radial slots where the vanes are installed.

• Vanes: These are thin, flat plates that slide in and out of the rotor slots. As the rotor rotates, the centrifugal force and hydraulic pressure push the vanes against the inner surface of the pump housing.

• Pump Housing: It forms the outer boundary of the pump and has a cam ring inside. The cam ring has an eccentric shape relative to the rotor axis, which is key to the variable displacement feature.

• Inlet and Outlet Ports: These are the channels through which hydraulic fluid enters and exits the pump.

2. Operation Process

• Inlet Phase: As the rotor rotates, the space between two adjacent vanes on the inlet side of the pump increases. This creates a low-pressure area, and hydraulic fluid is drawn into the pump through the inlet port.

• Compression Phase: As the rotor continues to rotate, the space between the vanes decreases due to the eccentricity of the cam ring. The fluid is compressed, and its pressure increases.

• Outlet Phase: When the space between the vanes reaches its minimum on the outlet side, the high-pressure fluid is forced out of the pump through the outlet port.

• Variable Displacement Mechanism: By adjusting the position of the cam ring relative to the rotor, the eccentricity can be changed. This, in turn, alters the stroke length of the vanes and thus the volume of fluid displaced per rotation, enabling variable flow output.

III. Performance Characteristics

1. Variable Flow Rate

• The VP pump can adjust its output flow rate continuously over a wide range. This allows it to match the flow requirements of different hydraulic systems precisely, reducing energy consumption and heat generation. For example, in a machine tool with varying load conditions, the pump can supply the necessary flow only when needed, instead of operating at a constant high flow rate.

2. High Efficiency

• Compared to fixed-displacement pumps, variable displacement vane pumps can operate more efficiently, especially under partial-load conditions. Since they can adjust the flow rate, they avoid the energy waste associated with throttling the flow in a fixed-displacement system.

3. Smooth Operation

• The design of the vane pump provides relatively smooth fluid delivery. The multiple vanes ensure a continuous flow of fluid, reducing pulsations and vibrations in the hydraulic system. This is beneficial for applications that require precise control and stable operation, such as in CNC (Computer Numerical Control) machines.

4. Compact Size and Lightweight

• VP pumps are often designed to be compact and lightweight, making them suitable for applications with limited space. Their small footprint allows for easy integration into various hydraulic systems, whether in industrial machinery or mobile equipment.

5. Good Self-Priming Ability

• These pumps can draw fluid from a relatively low level or a tank located below the pump. This self-priming capability simplifies the system design and installation, as it eliminates the need for additional priming devices in many cases.

IV. Technical Parameters

1. Displacement Range

• The displacement of VP variable displacement vane pumps can vary widely depending on the model. Common displacement ranges are from a few cubic centimeters per revolution (cc/rev) to several hundred cc/rev. For example, some small industrial pumps may have a displacement of 5 - 50 cc/rev, while larger pumps used in heavy-duty applications can have displacements exceeding 200 cc/rev.

2. Pressure Rating

• The pressure rating indicates the maximum pressure that the pump can generate. VP pumps typically have pressure ratings ranging from 100 bar to 350 bar. Higher-pressure pumps are used in applications that require significant force, such as in hydraulic presses or large construction equipment.

3. Speed Range

• The rotational speed of the pump affects its performance. VP pumps can operate over a wide speed range, usually from a few hundred revolutions per minute (rpm) to several thousand rpm. The optimal speed range depends on the pump design and the application requirements. For example, in some mobile hydraulic systems, the pump may operate at speeds between 1000 - 3000 rpm.

4. Efficiency Curve

• The efficiency of the VP pump varies with the flow rate and pressure. Manufacturers provide efficiency curves that show how the pump's efficiency changes under different operating conditions. These curves help engineers select the right pump for a specific application to maximize energy efficiency.

V. Application Areas

1. Industrial Machinery

• Machine Tools: In CNC lathes, milling machines, and grinding machines, VP pumps are used to supply hydraulic fluid for functions such as tool changing, spindle rotation, and worktable movement. The variable flow rate allows for precise control of these operations, improving machining accuracy and productivity.

• Plastic Injection Molding Machines: These pumps provide the hydraulic pressure required for clamping the mold, injecting the molten plastic, and ejecting the finished product. The ability to adjust the flow rate helps in optimizing the injection process and reducing cycle times.

2. Mobile Equipment

• Construction Machinery: In excavators, loaders, and bulldozers, VP pumps are used in the hydraulic systems for functions like boom movement, bucket operation, and steering. The variable displacement feature enables efficient operation under different load conditions, improving fuel economy and performance.

• Agricultural Machinery: Tractors, combine harvesters, and sprayers rely on VP pumps for various hydraulic functions, such as lifting implements, steering, and spraying. The pumps' compact size and variable flow rate make them well-suited for the diverse requirements of agricultural operations.

3. Automotive Industry

• Power Steering Systems: VP variable displacement vane pumps are commonly used in automotive power steering systems. They provide the necessary hydraulic pressure to assist the driver in steering the vehicle. The variable flow rate ensures that the steering assistance is appropriate for different driving speeds and conditions.

• Automatic Transmissions: Some automatic transmissions use VP pumps to supply hydraulic fluid for gear shifting and clutch engagement. The ability to adjust the flow rate helps in smooth gear changes and efficient power transmission.

VI. Installation and Maintenance

1. Installation

• Mounting: The pump should be mounted on a stable and rigid base to minimize vibrations. Ensure that the mounting bolts are tightened to the specified torque values.

• Alignment: Proper alignment between the pump and the drive motor is essential. Misalignment can cause excessive wear and premature failure of the pump components. Use alignment tools to ensure accurate alignment.

• Fluid Connection: Connect the inlet and outlet ports of the pump to the hydraulic system using appropriate hoses or pipes. Ensure that the connections are tight and leak-free. Use filters to prevent contaminants from entering the pump.

2. Maintenance

• Fluid Quality: Regularly check the quality of the hydraulic fluid. Replace the fluid according to the manufacturer's recommendations or when it becomes contaminated. Contaminated fluid can cause wear and damage to the pump components.

• Filter Replacement: Replace the hydraulic fluid filters at regular intervals. Clogged filters can restrict the flow of fluid and reduce the pump's performance.

• Vane Inspection: Periodically inspect the vanes for wear and damage. Worn vanes can lead to reduced pump efficiency and increased leakage. Replace the vanes if necessary.

• Seal Replacement: Check the seals in the pump for leaks. Leaking seals can cause fluid loss and contamination. Replace the seals if they are damaged or worn.
