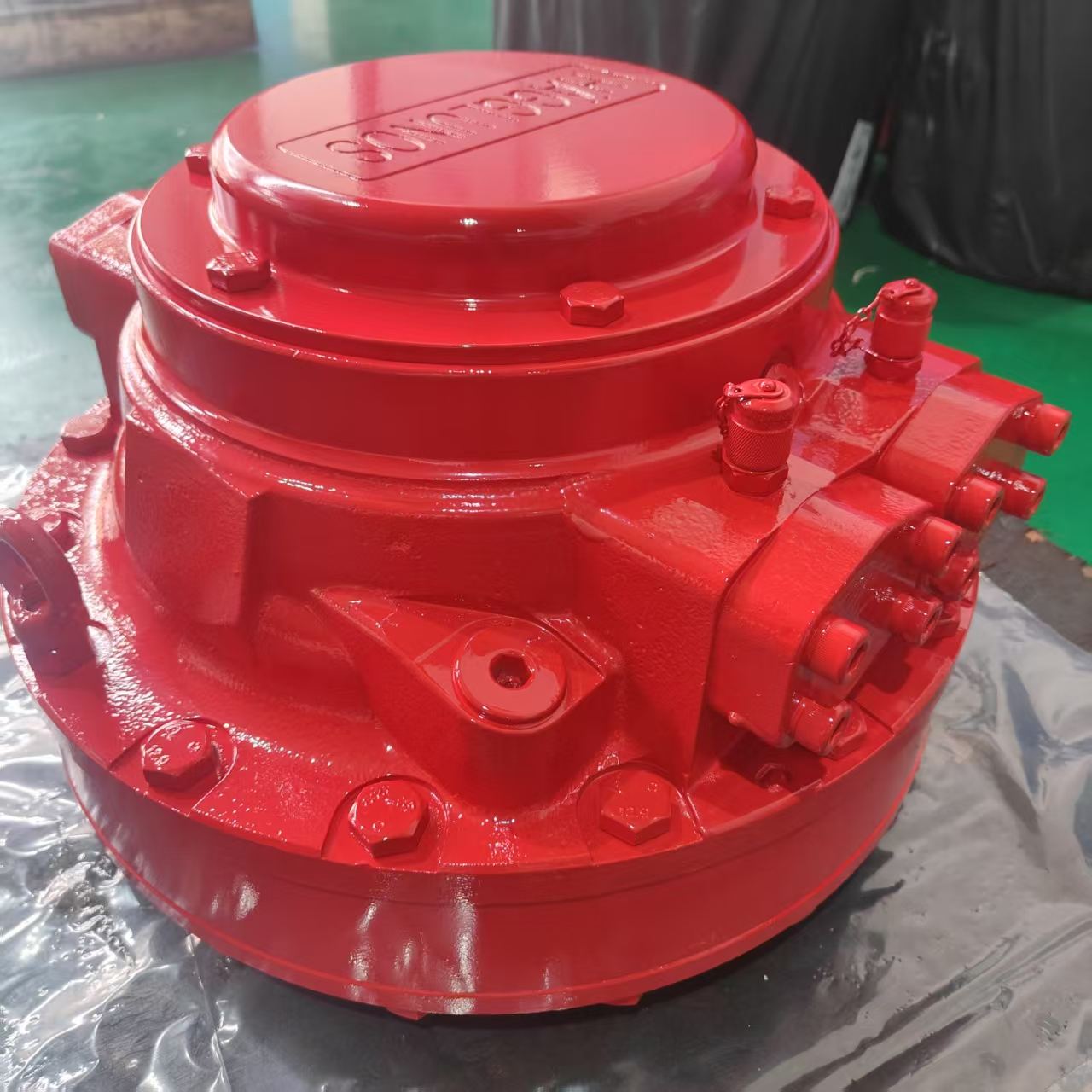

Detailed Introduction to Poclain Radial Piston Hydraulic Motors CA50 - 32/CA50 - 25
I. Brand and Product Overview
Poclain is a well - known brand in the hydraulic field, renowned for its high - quality and high - performance hydraulic products. The CA50 - 32 and CA50 - 25 belong to the brand's radial piston hydraulic motor series. With their unique designs and excellent performance, they play crucial roles in numerous industrial and mobile equipment applications.
II. Working Principle
These two radial piston hydraulic motors operate based on the volumetric principle of radial pistons. Hydraulic oil enters the motor through its oil inlet and acts on the radially arranged pistons. Driven by the pressure of the hydraulic oil, the pistons extend outward. Due to the specific angular relationship between the pistons and the cylinder block, the linear motion of the pistons is converted into the rotational motion of the cylinder block, thus outputting torque and rotational speed. The oil distribution mechanism precisely controls the inflow and outflow of the hydraulic oil, ensuring that the pistons move in the correct sequence and at the right time to achieve continuous and stable rotational output.
III. Performance Characteristics
(A) High Torque Output
• High Starting Torque: The CA50 - 32 and CA50 - 25 can generate extremely high starting torques at low speeds. This is crucial for applications that require overcoming significant initial resistance, such as the hoisting mechanisms of cranes and the slewing devices of excavators. At the moment of starting, the motors can quickly produce sufficient torque to drive the load into motion.
• Continuous High - Torque Output: Throughout the entire speed range, these two motors can maintain relatively stable torque output, ensuring that the equipment receives reliable power support under various working conditions.
(B) Wide Speed Regulation Range
• Stepless Speed Regulation Capability: By adjusting the flow rate of the hydraulic system, stepless speed regulation of the motors can be achieved. They have a wide speed regulation range, which can meet the diverse speed requirements of different working scenarios. For example, during fine operations, the speed can be adjusted to a low level for precise control; while for rapid movement or operation, the speed can be increased to a high level to improve work efficiency.
• Smooth Speed Regulation Performance: During the speed regulation process, the motors run very smoothly without obvious vibrations or impacts, ensuring the stability and reliability of the equipment.
(C) High Efficiency
• Low Energy Loss: Advanced hydraulic designs and precision manufacturing processes are adopted to reduce the energy loss of the hydraulic oil during flow, improving the conversion efficiency from hydraulic energy to mechanical energy. This means that with the same input power, the motors can output more useful work and reduce energy consumption.
• Good Volumetric Efficiency: The optimized design of the oil distribution mechanism makes the inflow and outflow of the hydraulic oil smoother, reducing internal leakage and further improving the volumetric efficiency.
(D) Smooth Operation and Low Noise
• Precision Manufacturing Process: The various components of the motors are precisely machined and assembled, ensuring accurate and smooth motion. The high - precision fit between the pistons and the cylinder block reduces friction and vibrations, thus lowering the operating noise.
• Effective Vibration Damping Design: Vibration - damping measures, such as elastic elements, are adopted in the internal structure to absorb and buffer the impact forces generated during motion, further improving the smoothness of operation.
(E) High Reliability
• High - Quality Material Selection: High - strength, wear - resistant, and corrosion - resistant materials are used to manufacture key components of the motors, such as the cylinder block, pistons, and bearings. This enables them to operate stably for a long time in harsh working environments.
• Good Sealing Performance: Advanced sealing technologies and sealing elements are adopted to effectively prevent hydraulic oil leakage, ensuring stable internal pressure in the motors. At the same time, they prevent foreign impurities from entering the motors, extending the service life of the equipment.
IV. Technical Parameters
【表格】
Parameter CA50 - 32 CA50 - 25
Displacement (cm³/rev) Approximately 32 Approximately 25
Rated Pressure (MPa) Usually up to 25 - 35 (depending on the application and configuration) Usually up to 25 - 35 (depending on the application and configuration)
Maximum Pressure (MPa) Generally higher than the rated pressure and can withstand short - term overloads. Refer to the product manual for specific values. Generally higher than the rated pressure and can withstand short - term overloads. Refer to the product manual for specific values.
Rated Speed (r/min) The range is wide and can vary from several hundred to several thousand revolutions per minute depending on different applications. The range is wide and can vary from several hundred to several thousand revolutions per minute depending on different applications.
Maximum Speed (r/min) Usually higher than the rated speed, depending on the motor design and lubrication conditions. Usually higher than the rated speed, depending on the motor design and lubrication conditions.
Output Torque (N·m) The output torque varies under different pressures and speeds. At the rated pressure, it can output relatively high torque. Refer to the product selection manual for specific values. The output torque varies under different pressures and speeds. At the rated pressure, it can output relatively high torque. Refer to the product selection manual for specific values.
V. Application Areas
(A) Construction Machinery
• Excavators: Used in the slewing mechanisms and travel drives of excavators, providing powerful power for the rotation and movement of excavators, enabling them to perform excavation, loading, and other operations flexibly and efficiently.
• Cranes: Widely used in the hoisting, luffing, and slewing mechanisms of cranes. They can precisely control the lifting and movement of heavy objects, ensuring the safety and stability of crane operations.
• Loaders: Serve as the travel and working device drives of loaders, enabling loaders to quickly and powerfully complete material loading and transportation tasks.
(B) Agricultural Machinery
• Tractors: Used for the power output and travel drives of tractors, providing sufficient power for tractors to tow various agricultural implements for tillage, sowing, harvesting, and other operations.
• Combine Harvesters: Drive the cutting tables, conveying devices, and threshing devices of combine harvesters, ensuring that combine harvesters can efficiently complete the harvesting and threshing of crops.
(C) Industrial Equipment
• Injection Molding Machines: Provide power for the clamping mechanisms and injection mechanisms of injection molding machines, realizing the opening and closing of molds and the injection molding of plastics, ensuring the quality and production efficiency of injection - molded products.
• Die - Casting Machines: Used in the injection mechanisms and clamping mechanisms of die - casting machines, providing strong pressure and speed control to ensure that the molten metal can accurately fill the mold cavities and produce high - quality die - castings.
(D) Shipbuilding and Marine Engineering
• Ship Propulsion: Can be used as auxiliary propulsion devices or main propulsion devices under specific operating conditions for ships, providing power for ships to meet the requirements of different navigation conditions.
• Offshore Platform Equipment: Used in various mechanical equipment on offshore platforms, such as cranes and drilling equipment, ensuring the smooth progress of offshore platform operations.
VI. Installation and Maintenance
(A) Installation
• Pre - installation Inspection: Before installation, carefully check whether the model and specification of the motor match the requirements of the equipment. Inspect the appearance of the motor for any damage and ensure that all components are complete.
• Installation Base Preparation: Ensure that the installation base is flat and firm and can withstand the vibrations and loads generated during motor operation. For installations that require precise alignment, use appropriate alignment tools for alignment operations.
• Hydraulic Pipeline Connection: When connecting the hydraulic pipelines, ensure the cleanliness of the pipelines to prevent impurities from entering the motor. Select appropriate pipe fittings and sealing elements to ensure a firm and well - sealed connection and prevent hydraulic oil leakage.
• Electrical Connection (if applicable): If the motor is equipped with an electrical control part, connect the electrical wires correctly according to the electrical wiring diagram to ensure the safety and reliability of the electrical system.
(B) Maintenance
• Regular Hydraulic Oil Inspection: Regularly check the oil level and oil quality of the hydraulic oil. When the oil level is too low, timely supplement the hydraulic oil; when the oil quality deteriorates, such as showing signs of degradation or contamination, timely replace the hydraulic oil. At the same time, regularly clean or replace the hydraulic oil filters to prevent impurities from entering the system.
• Sealing Element Inspection: Regularly inspect the sealing elements of the motor, such as O - rings and oil seals. When sealing elements are found to be aged, damaged, or leaking, replace them in a timely manner to ensure the sealing performance of the motor.
• Cleaning and Rust Prevention: Keep the surface of the motor clean and regularly remove dust, oil stains, and other impurities from the surface. For motors that are not in use for a long time, take rust - prevention measures, such as applying anti - rust oil, to prevent the motor from rusting.
• Regular Overhaul: Conduct a comprehensive overhaul of the motor according to the specified maintenance cycle. Check whether the various components of the motor are worn or loose. Replace severely worn components in a timely manner to ensure that the motor is always in good working condition.
