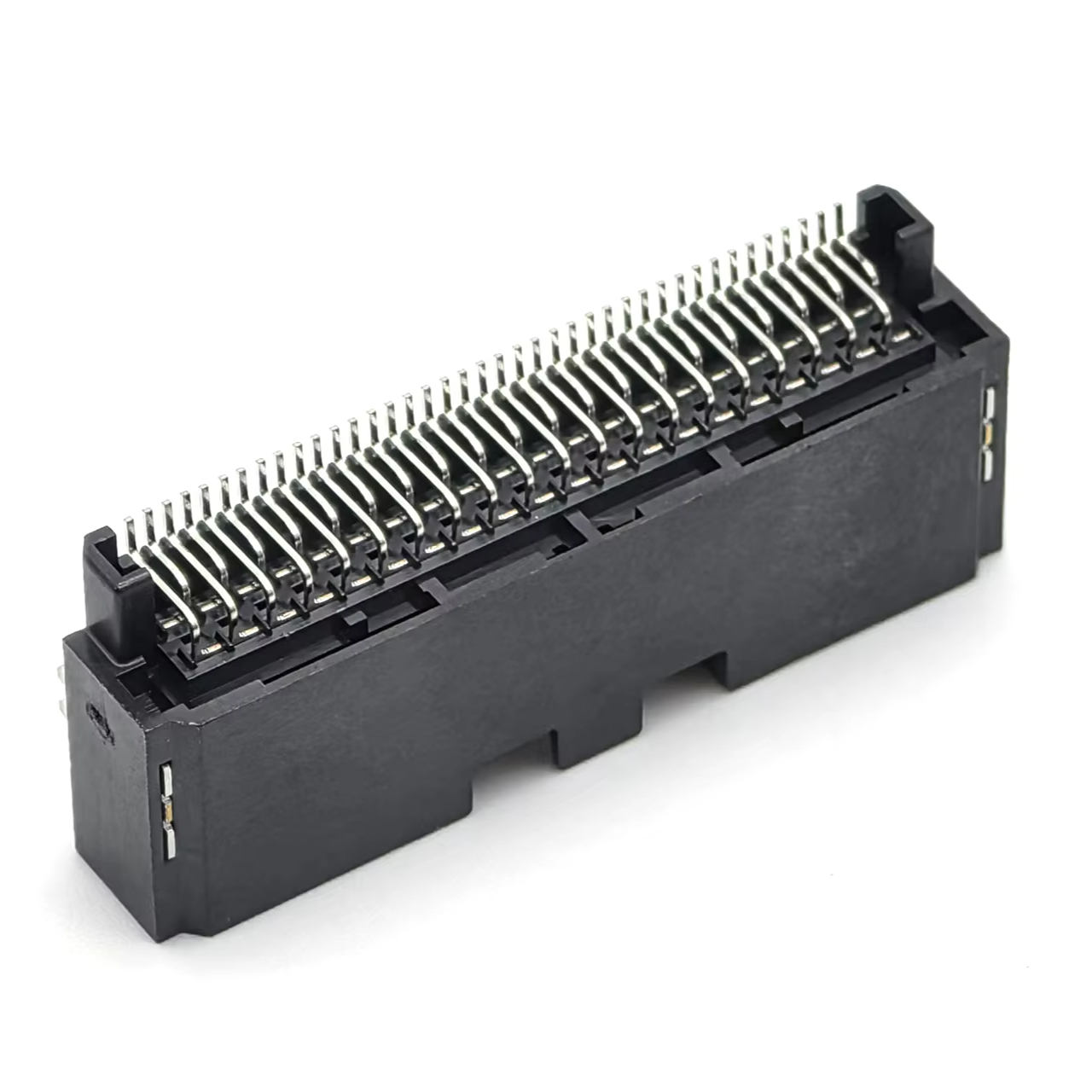

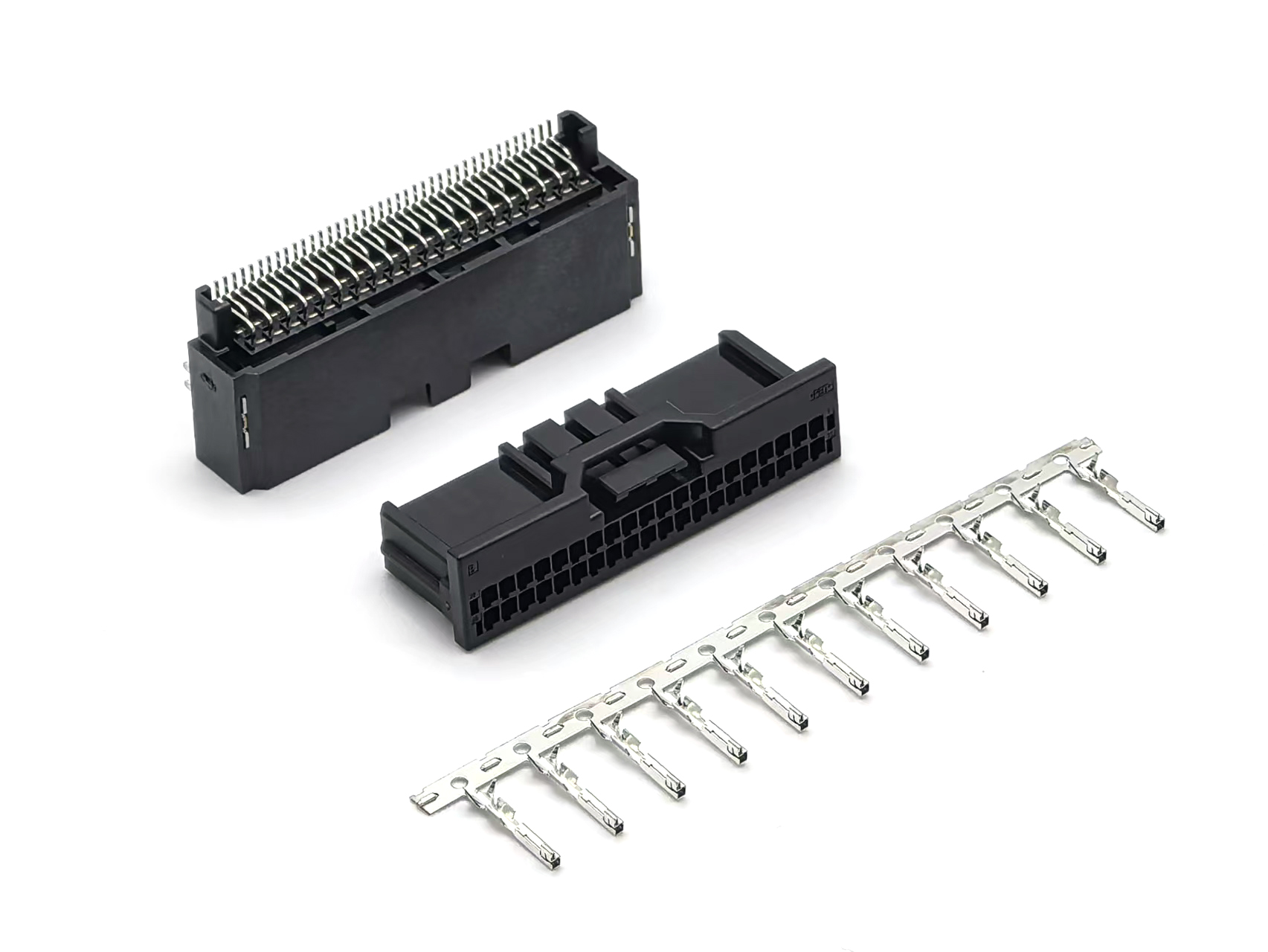

2.0mm Pitch Automotive WTB(Wire To Board)90° SMT Socket Connector Male +Plug Strip SMT 2*20P

2 week ago

1 0

Shenzhen Yangzhan Electronics Co., Ltd.

 5 month year

Product details

YZTECH’s 2.0mm Pitch Automotive Wire-to-Board 90° SMT Socket Connector redefines rugged connectivity for demanding applications. Featuring a male-gender configuration with dual-row 40P per row, this header connector supports 3A current at 1000V AC, ideal for high-power automotive systems like battery management units and motor controllers. The 90° SMT design enables automated surface-mount assembly, reducing labor costs while ensuring precise alignment on PCBs.

The wire-to-board header connector’s plug strip configuration delivers 40 contact points for complex signal/power integration in compact spaces.C7025 alloy contacts offer 20% higher tensile strength than standard phosphor bronze, reducing contact fatigue in vibration-prone automotive environments.The 90° SMT socket design features a retention mechanism that maintains 5N insertion force across -40°C to +125°C, preventing accidental disconnection.Nylon housing provides 10kV ESD protection and 1GΩ insulation resistance, crucial for high-voltage automotive systems.Compliance with AEC-Q200 Rev. D standards ensures reliability in under-hood applications,while RoHS certification guarantees environmental compliance.

This YZTECH vehicle connector excels in automotive electronics, industrial automation, and renewable energy systems.The 90° SMT design enables vertical PCB mounting, saving 30% board space compared to traditional connectors.In electric vehicles, it supports fast-charging architectures with 1000V DC bus compatibility. The reel packaging supports JIT manufacturing workflows, reducing inventory costs by 40% versus box packaging.

2.0mm Pitch Automotive WTB(Wire To Board)90° SMT Socket Connector Male +Plug Strip SMT 2*20P
