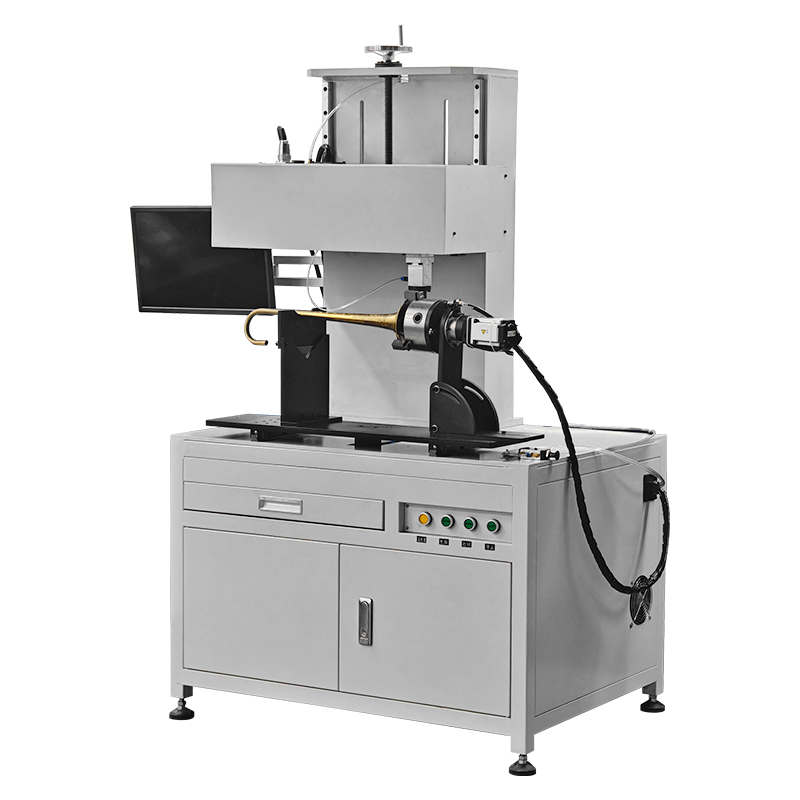

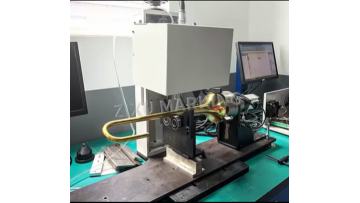

This scoring machine for instruments such as trumpets, French horns, and trombones was custom-designed for a client who manufactures high-end, customized wind instruments, with the average price of their main products reaching $100,000. In the first half of 2025, the client plans to mark the surface of their anniversary edition instruments with patterns that are even more refined than their existing 3D laser marking machine. Compared to conventional scoring machines, this machine reduces the scoring force to avoid deformation. It utilizes a flexible rotating chuck and height-adjustable V-shaped baffle to achieve precise markings on instruments with varying slopes.

From core Marking Machine and Laser Cleaning Machine to professional accessories and consumables, we offer a total solution for your industrial laser needs.

Technique Parameter
Marking Type				Pneumatic scribing
Marking speed				2-5 characters (2x2mm)/s
Marking depth				0.01 ~ 1.2mm (Vary to the material)
Marking contents				English letter, number, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc.
Stylus Pin Hardness				HRA93
Marking area				460mm * 90mm
Marking materials				Below HRC60 metallic and nonmetallic materials
Repeat accuracy				0.02 ~ 0.04mm
Rated Power				600W
Power Input				AC 110V 60HZ or AC220V 50HZ
Control Software				Thorx-6, Thorx-7 or Thorx-9
Controller				PC connection controller
Connection				USB and RS-232
Dimensions				1000 * 700 * 1700mm
N.W.				180kg
Package Dimensions				1250 * 950 * 2100mm
G.W.				210kg

Quantity				Price
1				6000
3				5800
5				5500
