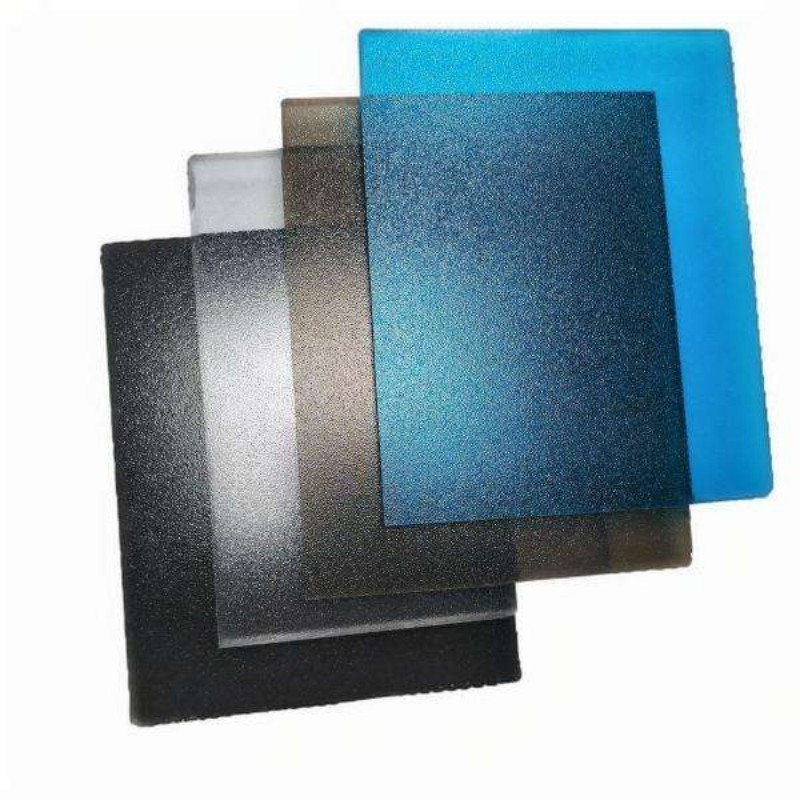

High Glossy Polycarbonate Embossed Sheet PC Solid Sheet

High Glossy Polycarbonate Embossed Sheet PC Solid Sheet

2 week ago

1 0

Hony Engineering Plastics Limited

 5 year year

Product details

PC board is very common in life, we go to the supermarket, in the school, and even at home may see its figure. It is transparent, tough, not only heat and cold, but also sound insulation and flame retardant. About PC board, follow the editor to look down together

First, the type of PC board

PC board variety, can be broadly divided into sunshine board , endurance board , wave tile , light tiles , and synthetic resin tiles ,according to the different types of different characteristics, PC board is put into the various The characteristics of PC boards are also very obvious.

PC board characteristics are also very obvious, there are many advantages, such as high transparency, can be used in the need for light-transmitting materials in the occasion; for example, light weight, impact resistance, can be used in the need for lightweight barrier in the occasion; for example, can be bending, and even adapt to the temperature, can be used in the need for elasticity of the material but also high temperature resistance in the occasion. Then there are advantages such as flame retardant, ultraviolet isolation, sound insulation, energy saving. This advantage is full of PC board processing is also not so easy.

Second, the processing of PC board

(1) PC board cutting

cutting is the basic process of PC board processing, the standard is also lower, at present, more than through the manual use of serrated sawblade manual cutting, high efficiency and low cost, the accuracy of more than in the individual.

(2) PC board engraving

PC board engraving applications are very wide, mainly divided into laser engraving

and drill engraving two, but the laser engraving will appear black marks, so the drill engraving has become more of the first choice of engraving process. Engraving process can not only meet the standard for the shape of PC board products, but also effectively reduce costs.

(3) PC board bending

PC board bending process is divided into cold bending processing moulding and hot bending processing moulding , bending process for the PC board itself also has standards, must be of high quality, or else it will be in the heating process to produce air bubbles, affecting the appearance. In addition, in the process, the tools must be sharp, the speed is also the need to be as fast as possible.

(4) PC board polishing

PC board polishing is mainly for cutting, engraving after the PC board for the subsequent process steps, after cutting and engraving, PC board surface will be partially rough, must be polished. Usually use a hobby knife, wool pads and other tools for polishing.

(5) PC board bonding

PC board bonding process has a special bonding glue used, the PC board in accordance with the target product bonding process, be extra careful after the end of the bonding for the glue treatment, so that the interface is flat and smooth.

Performance Comparison Analysis of PC Sheets and Acrylic Sheets

1.PC Sheets vs. Acrylic Sheets: Comprehensive Analysis of Performance Differences and Application Scenarios

As a company with 16 years of expertise in PC sheet production, this article analyzes the performance differences and suitable applications of PC sheets and acrylic sheets based on practical experience.

2.Core Performance Comparison

(1)Light Transmission & Optical Performance

Acrylic achieves 92%-95% light transmission (approaching optical glass), but PC sheets offer superior outdoor durability (10-year light transmission loss only 10%, while acrylic may yellow within two years).

(2)Mechanical Strength

PC sheets demonstrate significantly higher impact resistance (3mm withstands hail, 6mm reaches bulletproof grade), while acrylic has a Mohs hardness of 3-4 and is prone to scratching.

(3)Temperature and Environmental Tolerance

PC sheets withstand temperatures from -40°C to 120°C without brittle fracture at low temperatures (e.g., Mohe); acrylic remains stable at room temperature but becomes vulnerable at low temperatures.

3.Processing and Application Compatibility

(1)Cutting and Forming

Acrylic is easy to process (laser cutting yields smooth edges; thermoforming possible at 100°C). PC sheets require precision techniques (waterjet cutting; thermoforming requires temperatures above 150°C with controlled cooling).

(2)Bonding and Treatment

Acrylic bonds easily with chloroform; PC sheets require polyurethane adhesive (higher cost) and require corona treatment before printing.

(3)Typical Applications

Acrylic is suitable for display (e.g., luxury storefronts); PC sheets serve safety applications (riot shields, sound barriers), maintaining shape for a decade with low maintenance costs.

4.Cost and Environmental Dimensions

(1)Unit Price and Lifecycle Cost

Acrylic has lower unit cost , but PC sheets offer lower lifecycle cost (15-year service life, 40% lower annual cost).

(2)Environmental Impact & Carbon Footprint

PC sheets achieve over 85% recycling rates, while acrylic faces restrictions in Europe and America. Though PC production consumes 20% more energy, its lifespan is three times longer than acrylic, reducing greenhouse gas emissions by 40%.

Material selection hinges on application: Choose acrylic for light transmission and display, PC for safety and durability. Sixteen years of industry experience demonstrate PC sheets' superior overall performance—recommended as the preferred choice.
