Packing info:
100 pcs per bag, 20 bags per carton
carton size: 32x27x27.5 cm
net weight: 10.5kg
gross weight: 11kg
Specifications:
| Item No. | P01-X3 | ||
| Electrical Data | |||
| IEC/EN | |||
| Rated Voltage (V) | 400 | ||
| Rated Current (A) | 41 | ||
| Ambient Temperature | Polycarbonate | T105 | |
| Polypropylene | T105 | ||
| Connection Data | |||
| IEC/EN | |||
| Cross Section | Solid conductor | 2.5-6.0mm² | |
| Stranded conductor | 2.5-6.0mm² | ||
| Strip length (mm) | 12 | ||
| Means of connection | push in | ||
| Number of terminals | single | ||
| Number of connection points | 3 | ||
| Protection Degree | |||
| IP20 | |||
| Materials | |||
| Insulation Materials | Designation | Polycarbonate, Polypropylene | |
| Flammability class | UL 94V-2 | ||
| Packing Quantity (pcs/carton) | |||
| 2000 | |||

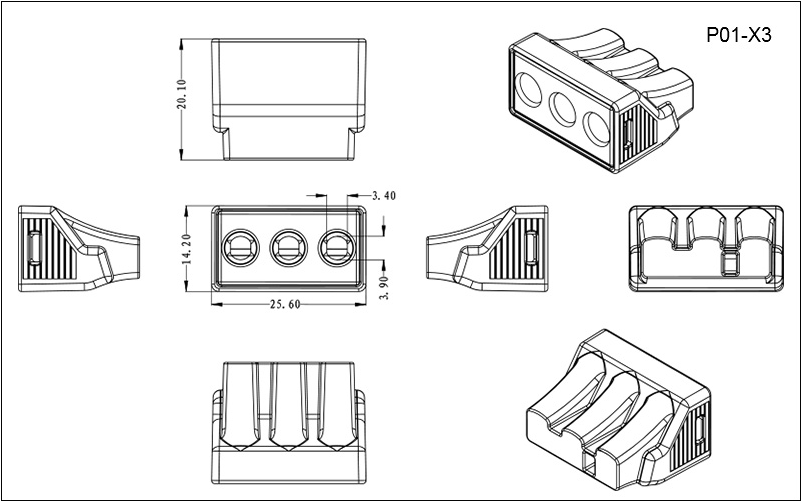

Drawing:
