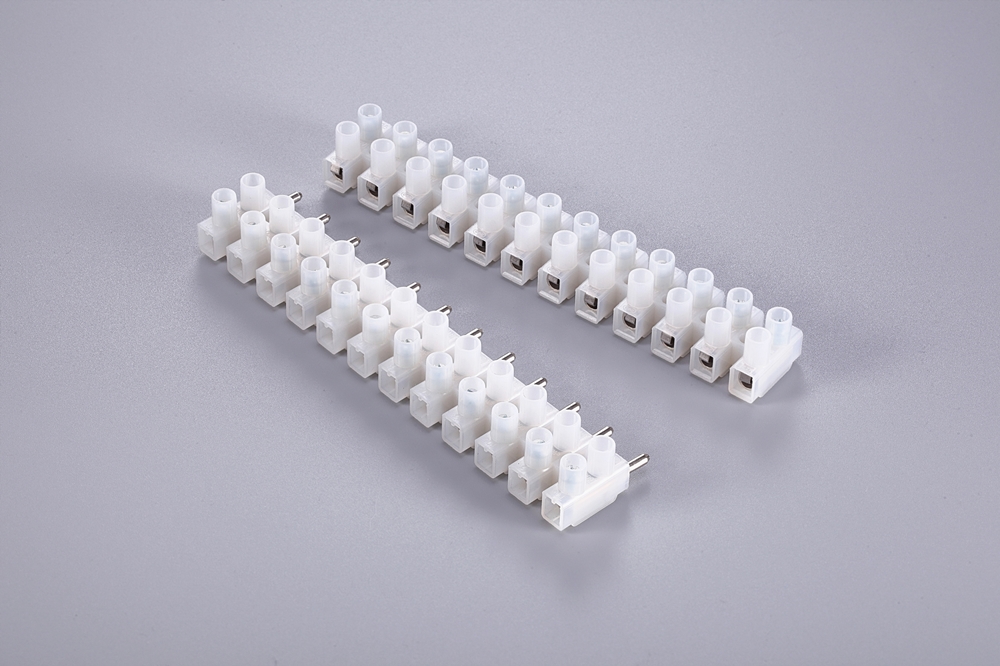

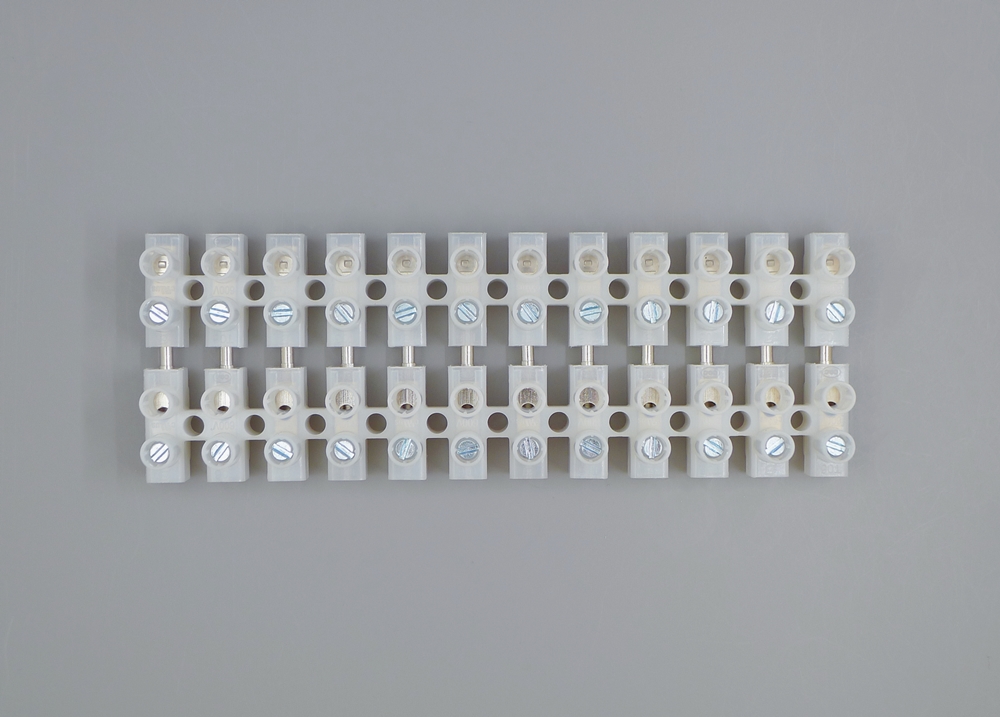

Beleks T Series pluggable connectors, also commonly referred to as plugs (Male) and sockets (Female), are essential components in electrical and electronic systems. These pluggable connectors play a vital role in ensuring the safe and efficient transfer of power and signals between various devices.
The combination of male and female wire connectors offers numerous advantages, including ease of installation, maintenance, and replacement. They also enable the use of modular designs, where individual components can be easily replaced or upgraded without affecting the entire system. Moreover, the use of standardized connector types facilitates interoperability between different devices and systems, promoting flexibility and versatility in electrical and electronic design.
size of connector: 116.15mm×37.20mm×15.10mm
Annual Production:
40, 000, 000PCS/Year
Packing info:
T06-MC12M(A)(male):
50 pcs per bag, 10 bags per carton
carton size: 62.5×17×22.2 cm
net weight: 17kg
gross weight: 18kg
T06-MC12F(A)(female):
50 pcs per bag, 10 bags per carton
carton size: 62.5×17×22.2 cm
net weight: 14kg
gross weight: 15kg

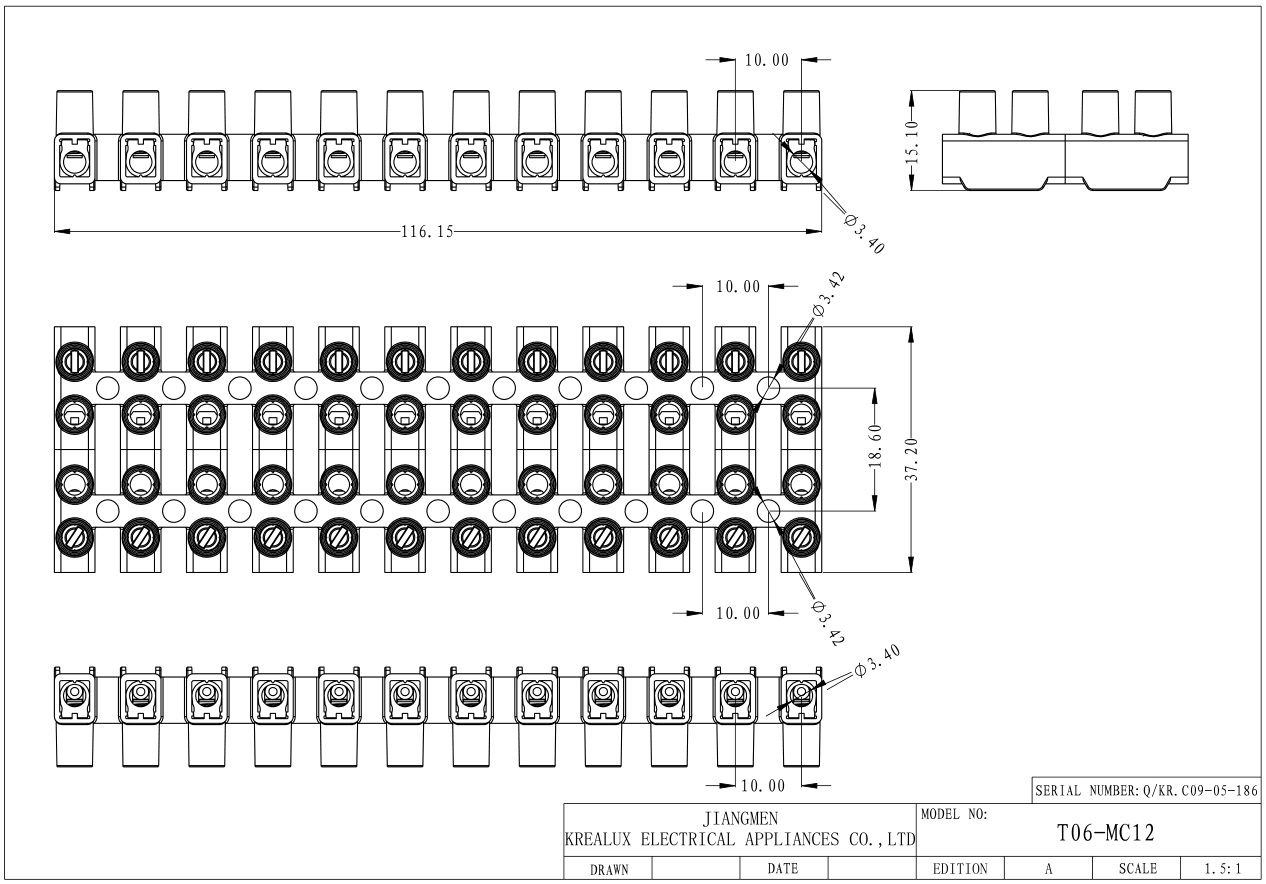

Dimensions

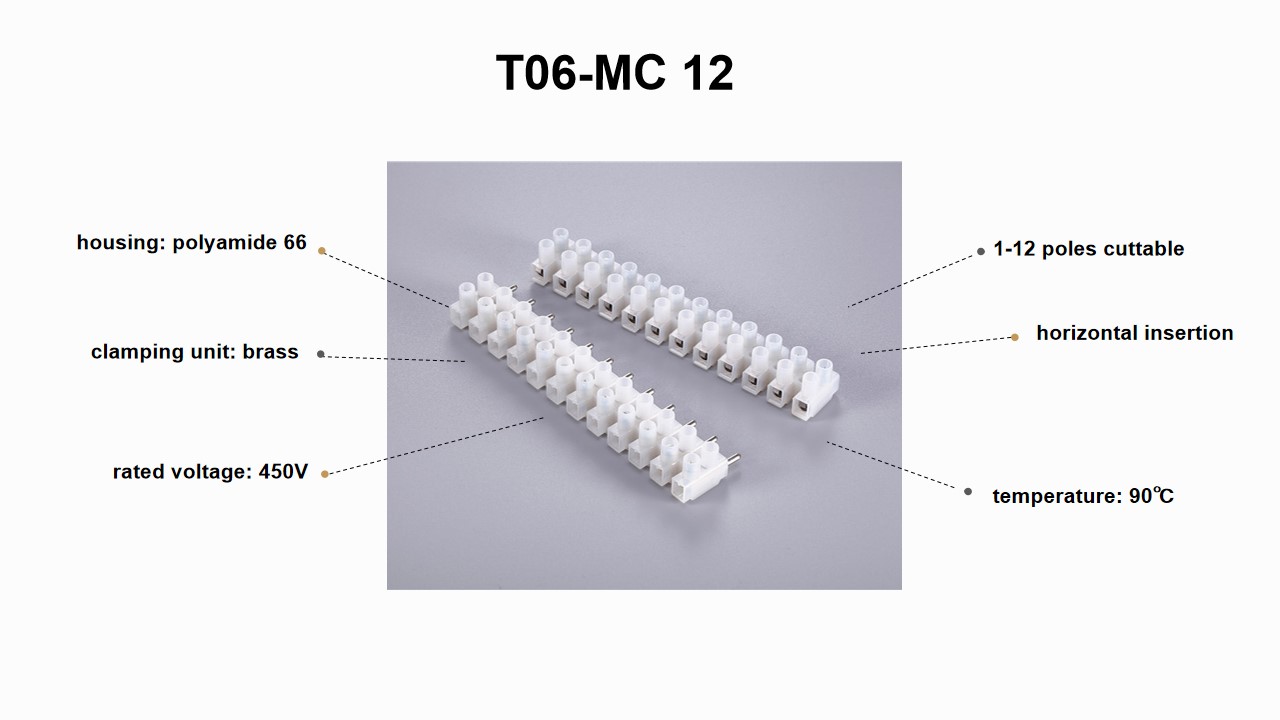

Specifications
| Item No. | T06-MC12 | ||
| Electrical Data | |||
| IEC/EN | |||
| Rated Voltage (V) | 450 | ||
| Rated Current (A) | 6 | ||
| Ambient Temperature | Polyamide 66 (V2) | 90℃ | |
| Connection Data | |||
| IEC/EN | |||
| Cross Section | Solid conductor | 0.75-2.5mm² | |
| Stranded conductor | 0.75-2.5mm² | ||
| Flexible conductor | 0.75-2.5mm² | ||
| Strip length (mm) | 7 | ||
| Means of connection | screw fixed | ||
| Screw | M3 | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 2-12 | ||
| Means of Fixing | |||
| screw fixed | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Clamping Unit | brass | ||
| Packing Quantity (pcs/carton) | |||
| 500 | |||
