1. Product Definition & Core Functions

Definition:

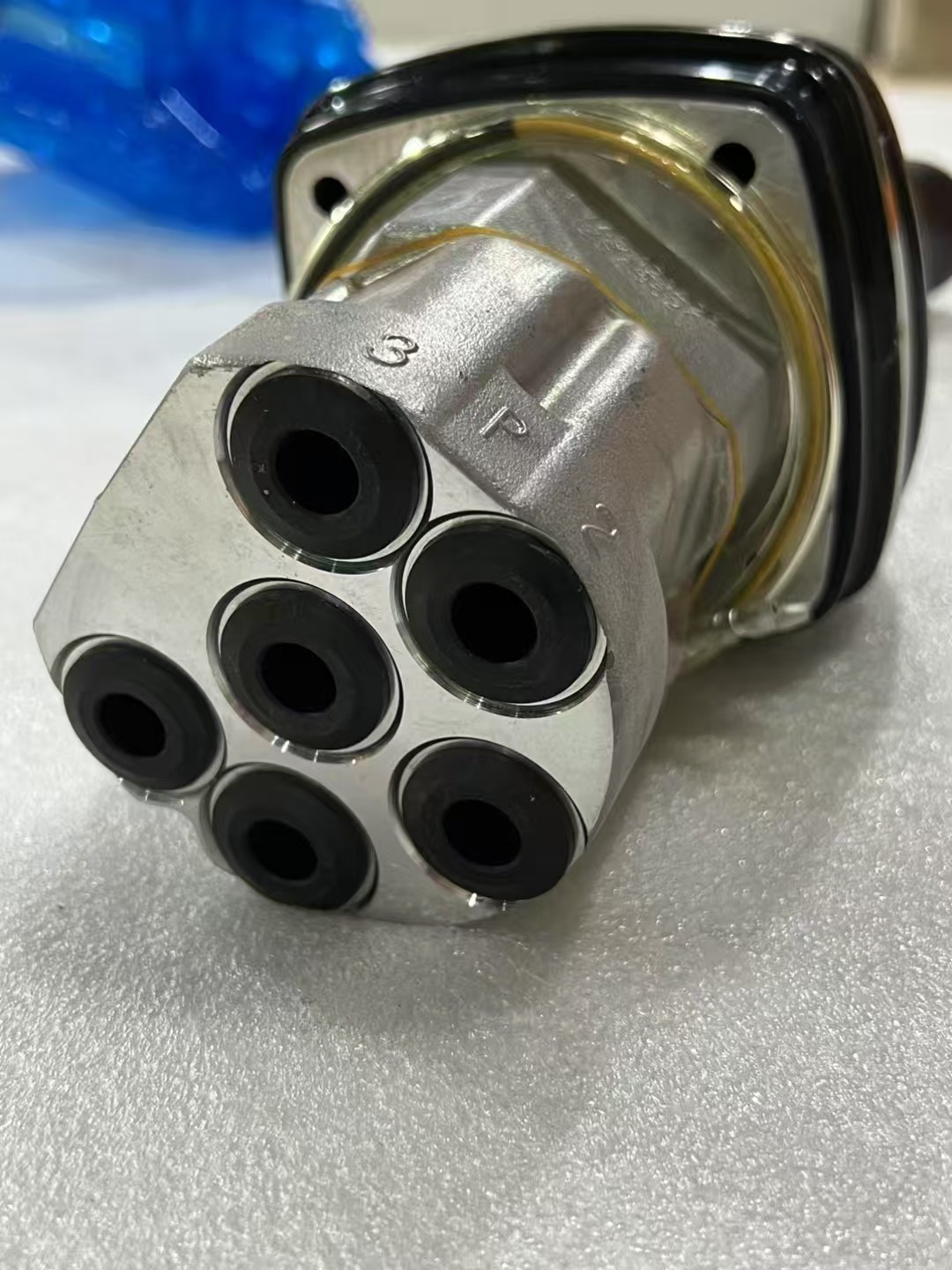

AKawasaki (Kawasaki Heavy Industries) Original Equipment Manufacturer (OEM) joystick control assemblydesigned specifically for Sumitomo Heavy Industries' 80-ton construction machinery (e.g., excavators, cranes). It integrates hydraulic control, electronic signal transmission, and human-machine interaction.

Core Functions:

• Multi-Axis Proportional Control: Supports dual-axis (X/Y) or triple-axis (X/Y/Z) precision operation for combined boom, arm, and bucket movements.

• Force Feedback System: Real-time hydraulic pressure feedback via sensors enhances operational safety.

• IP67 Protection: Dustproof and waterproof design for harsh environments (e.g., mud, rain).

• CAN Bus Communication: Seamless integration with the equipment’s ECU (Electronic Control Unit) for fault diagnostics and parameter calibration.

------

2. Key Technical Specifications

【表格】

Parameter Typical Value

Operating Force 20–50 N (adjustable)

Electrical Interface Deutsch DT Series Connector

Operating Voltage 12V/24V DC

Signal Output PWM (Pulse Width Modulation) / Analog 0–5V

Lifespan 5 million cycles (ISO 13849)

Compatibility Protocol J1939 (Construction Equipment Standard)

------

3. Component Breakdown

1. Joystick Handle

• Material: Aluminum alloy + glass-fiber-reinforced nylon (impact-resistant)

• Surface Treatment: Hard anodizing (corrosion-resistant)

• Button Configuration: Emergency stop button, mode switch

2. Sensor Module

• Type: Non-contact Hall-effect sensor

• Accuracy: ±0.5% FS (Full Scale)

• Redundancy: Dual-sensor backup (complies with ISO 13849-1 PLd)

3. Hydraulic Valve Block

• Flow Rate: 60 L/min (max)

• Pressure Rating: 350 bar

• Integrated: Pilot-operated proportional valve + safety relief valve

4. Wiring Harness

• Cable Spec: TXL oil-resistant shielded cable

• Connector Type: IP67 waterproof plug

• Length: 3–5 m (adaptable to cab layout)

------

4. Applications & Compatible Models

Primary Compatible Models:

• Sumitomo 80-Ton Excavators:SH80-3,SH80U-5

• Sumitomo 80-Ton Cranes:SC800XL,SC800HD

• Kawasaki-Supplied Hydraulic Systems (verify equipment serial number)

Typical Work Scenarios:

• Mining operations (heavy-duty rock breaking)

• Urban infrastructure (deep excavation)

• Port handling (container stacking)

------

5. Industry Certifications & Standards

• Safety Certifications: CE (EU), E-Mark (vehicular equipment)

• Functional Safety: ISO 13849-1 PLd (Performance Level d)

• Environmental Compliance: RoHS (lead-free), REACH (chemical control)

• Manufacturer Standard: Kawasaki KES (stricter than ISO durability tests)

------

6. Common Failures & Maintenance

【表格】

Symptom Potential Cause Solution

Unresponsive Joystick Sensor disconnection, wiring fault Check DT connector pins, replace harness

Sluggish Operation Stuck valve spool, contaminated oil Clean valve block, replace hydraulic fluid

Signal Drift Hall sensor zero-point offset Recalibrate sensor via diagnostic tool

Water Damage Short Aged seals, cracked housing Replace O-rings, repair housing

Maintenance Schedule:

• Every 500 hours: Inspect handle bolts, clean cooling slots

• Every 2,000 hours: Replace hydraulic filter, test sensor output

------

7. Procurement Considerations

1. Part Number Verification:

• Kawasaki OEM Part No.:KAWASAKI P/N: KJCA-80S-1234

• Sumitomo Matching Part No.:SUMITOMO PART: SH80-JCA-001

2. Anti-Counterfeiting:

• Authentic Kawasaki labels include laser holograms (verify via official website).

• Avoid "salvaged" or "refurbished" parts (no warranty).

3. Alternative Options:

• If OEM parts are unavailable, considerRexrothorParkercompatible units (confirm protocol compatibility).
