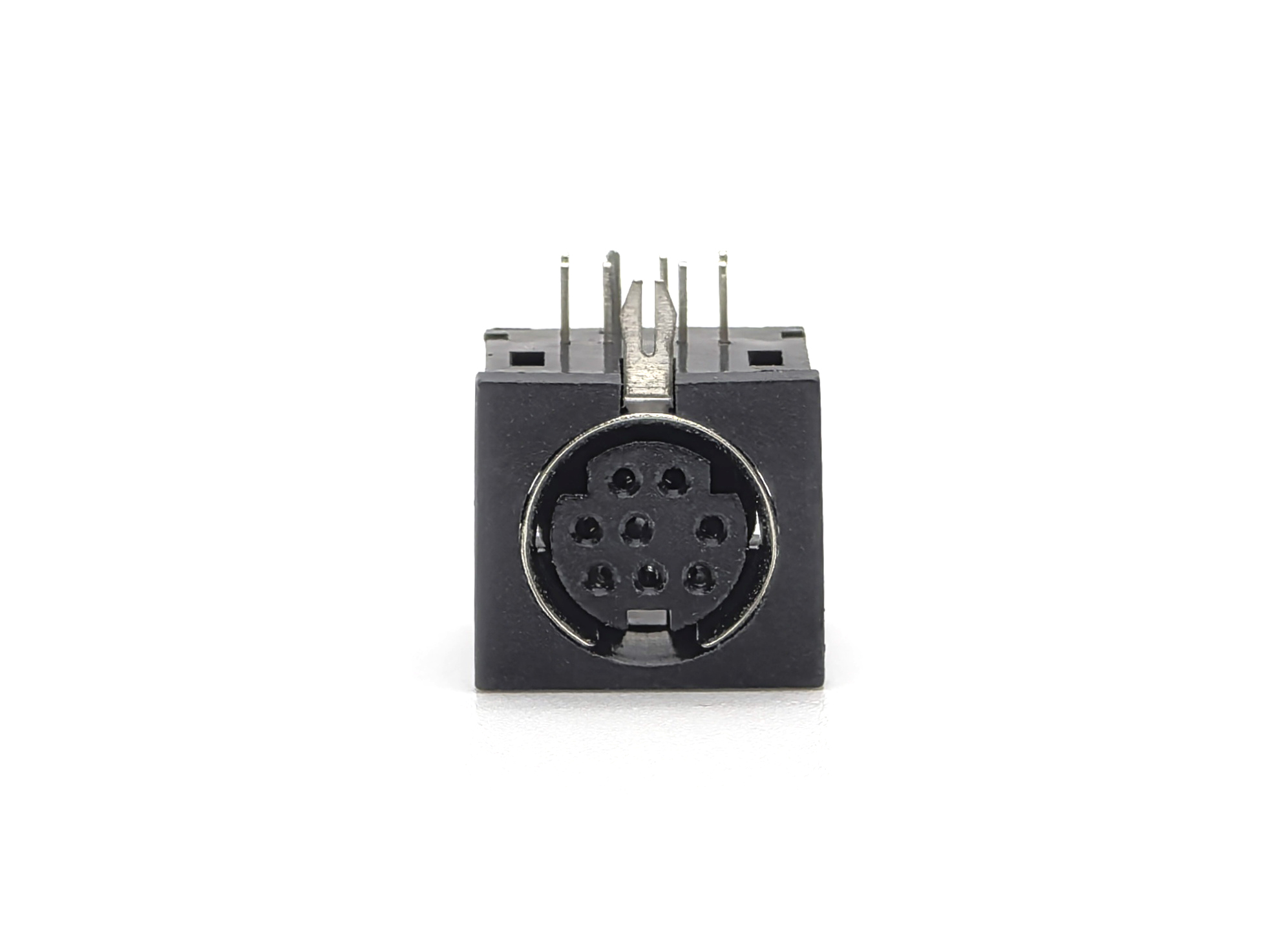

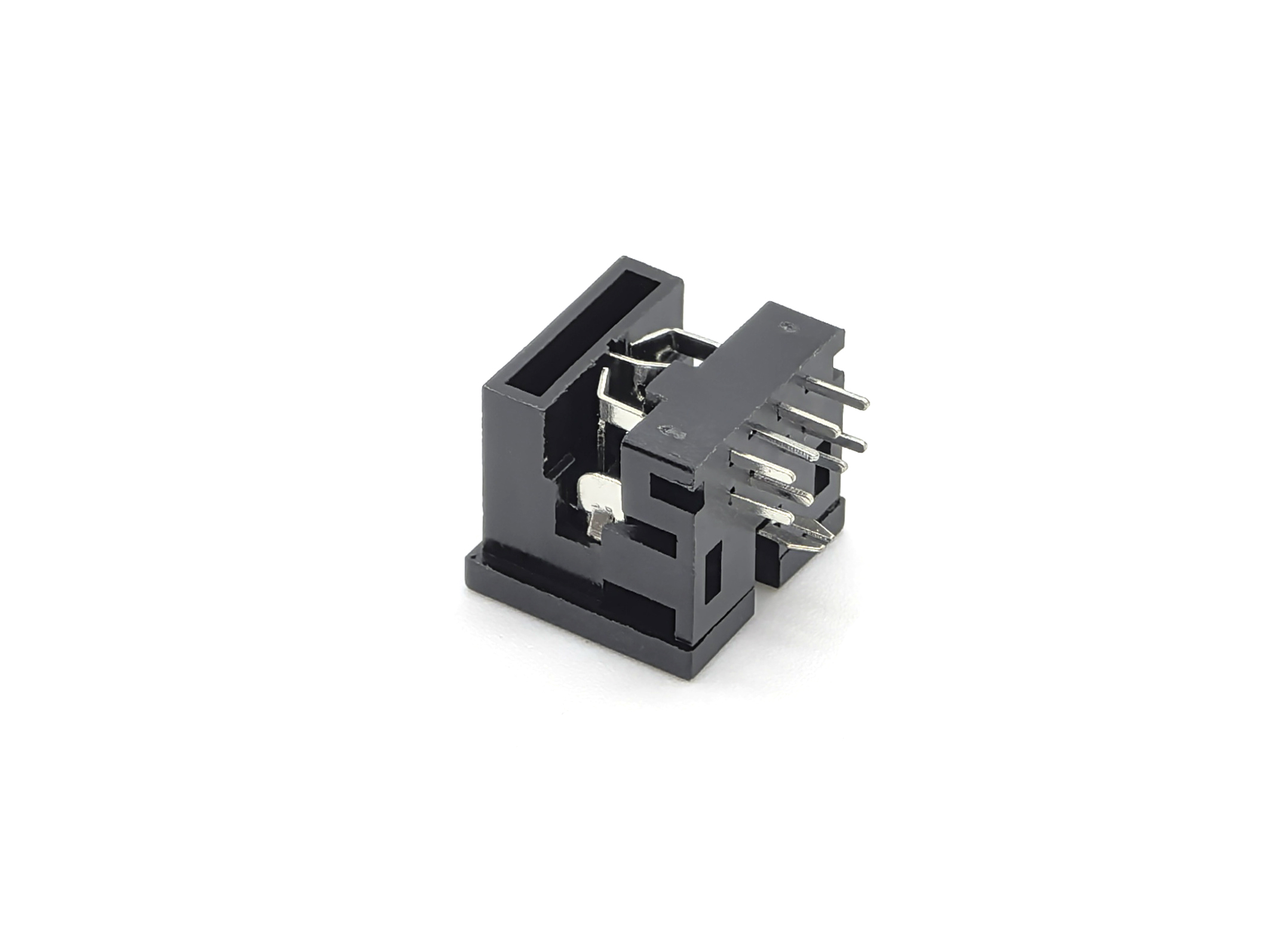

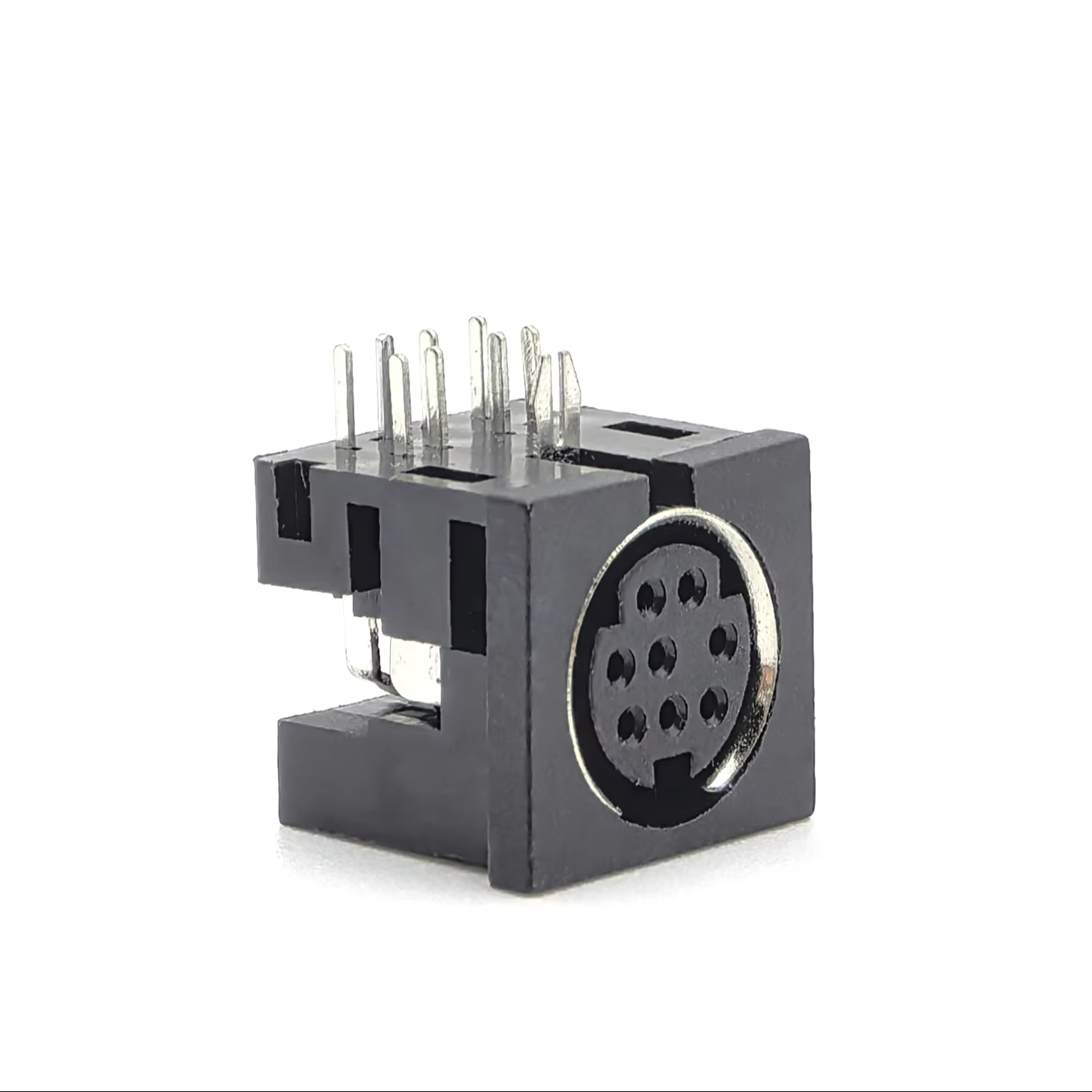

MINI DIN Connector Female Right Angle DIP Black Plastic 8P

2 week ago

2 0

Shenzhen Yangzhan Electronics Co., Ltd.

 5 month year

Product details

Engineered for precision PCB applications, the YZTECH MDC Micro Terminal Block 8P Female header Right Angle DIP combines robust DIN standard compliance with advanced material science.Featuring dual-row 8-pin configuration,this rectangular connector ensures high-density signal transmission at 12V/2A ratings.The female gender design with brass/phosphor bronze contacts ensures reliable conductivity, while tin-plated contacts enhance solderability and corrosion resistance. Ideal for industrial automation, power modules, and control systems,its right-angle DIP form factor optimizes PCB space utilization. The PBT colloidal material guarantees dimensional stability across -25℃ to +70℃ operating ranges, and box packaging ensures secure transport.

This micro terminal female header connector exceeds industry benchmarks with 2A current capacity and 12V voltage tolerance,validated for 250℃ maximum welding temperature.The dual-row architecture distributes electrical loads evenly,minimizing signal interference in high-speed circuits.Contact materials—brass for conductivity and phosphor bronze for fatigue resistance—ensure 5000+ mating cycles.PBT insulation provides flame retardancy and hydrolysis resistance,critical for humid environments.The tin plating process ensures consistent solder joint quality,reducing PCB assembly defects.

Engineered for global markets, this header connector supports plug-and-play integration with standard PCB footprints.Its compact 8P dual-row design reduces assembly time by 30% compared to single-row alternatives.Temperature resilience from -25℃ to +70℃ enables deployment in outdoor telecom equipment and industrial controllers.Box packaging minimizes shipping damage,while batch traceability ensures quality control.The 250℃ soldering limit aligns with lead-free reflow processes, making it ideal for green manufacturing initiatives.

MINI DIN Connector Female Right Angle DIP Black Plastic 8P
