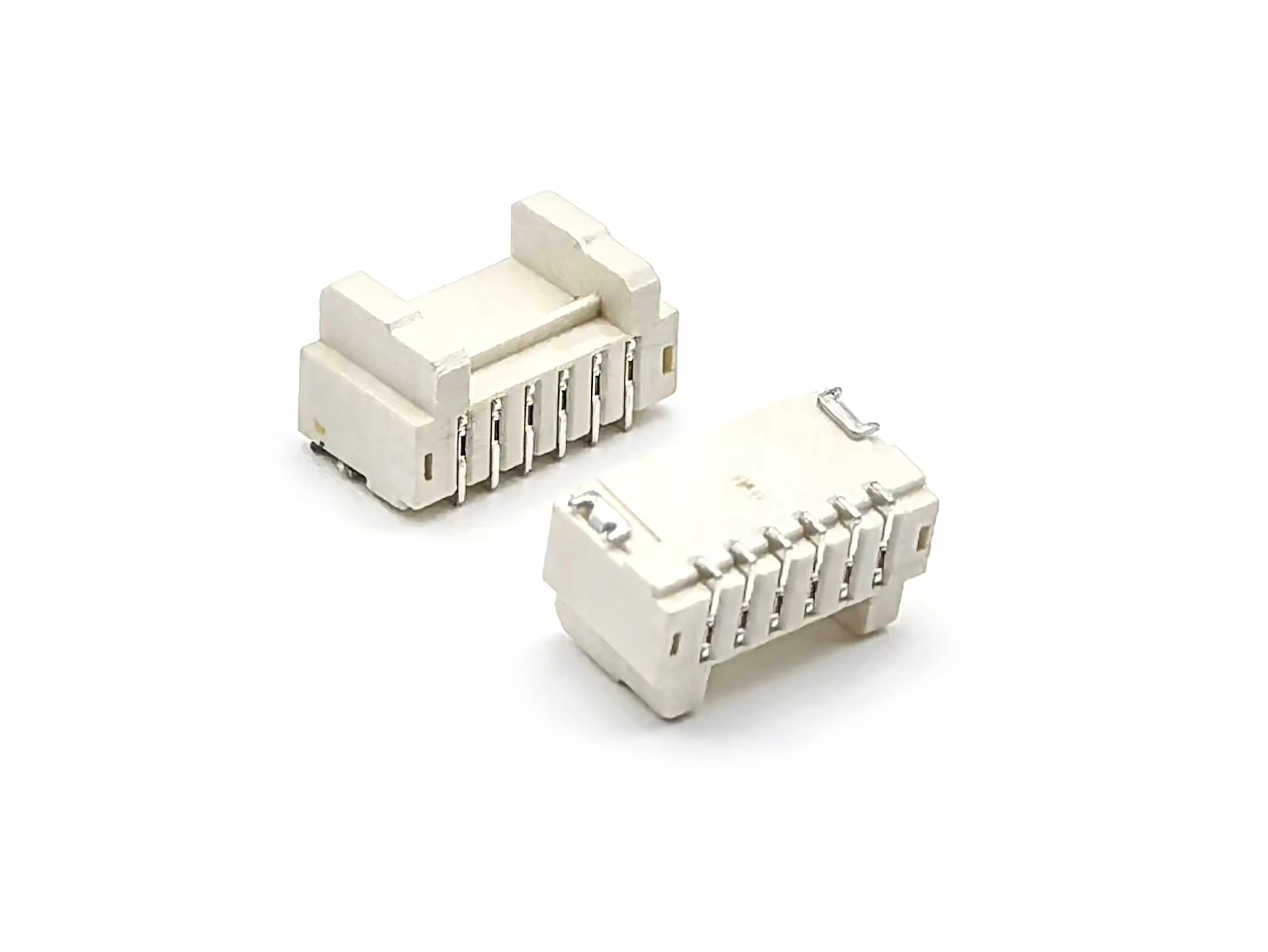

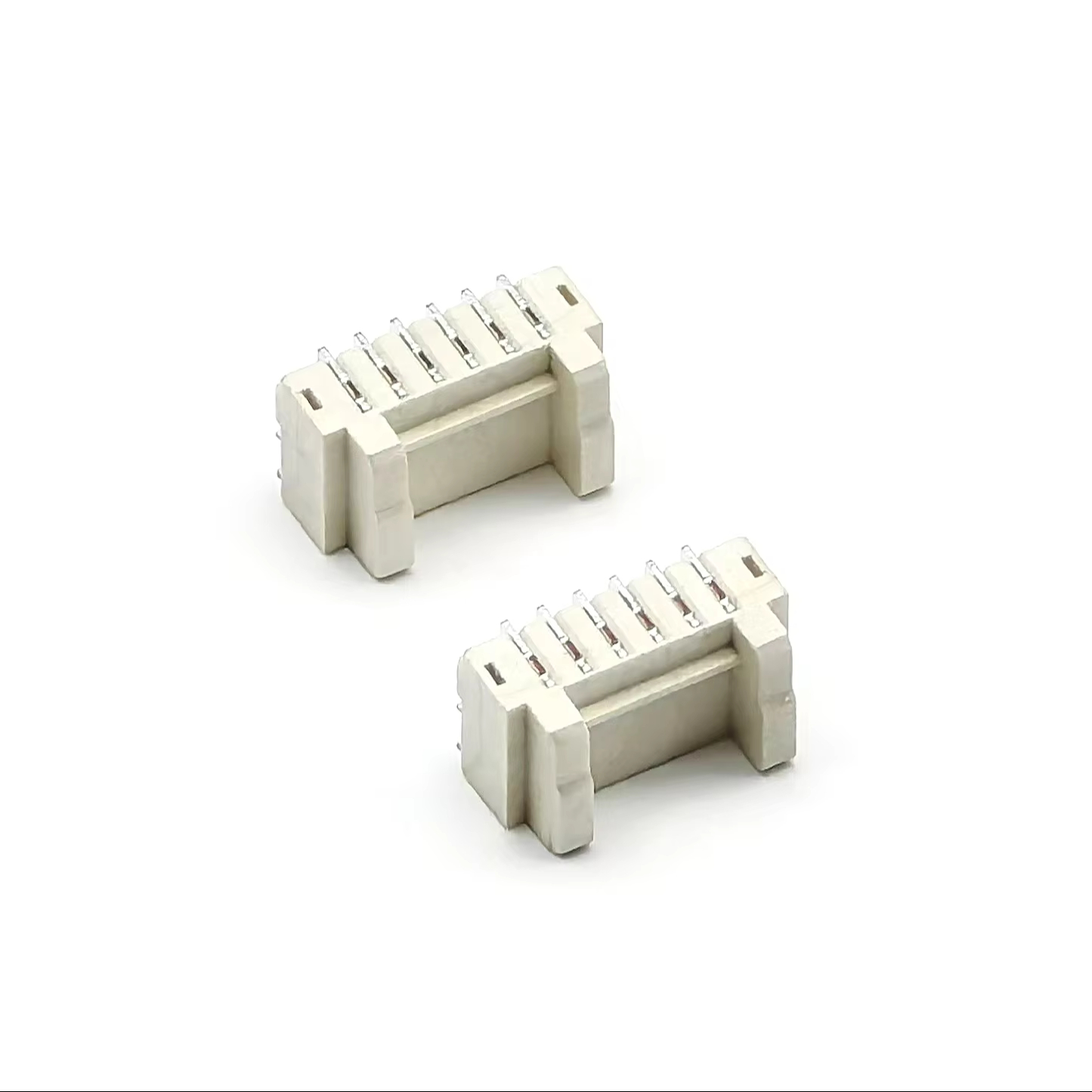

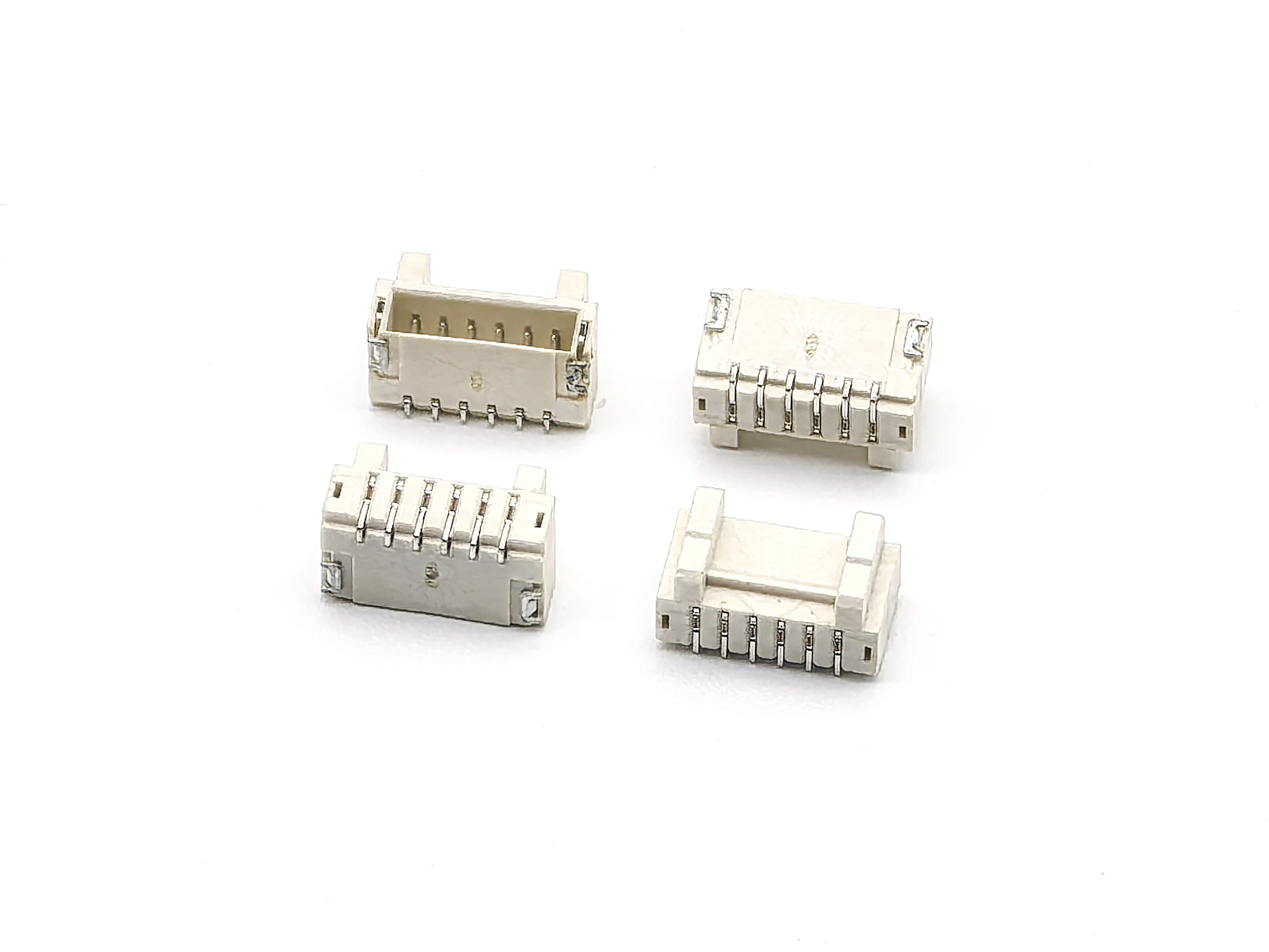

1.0mm Ultra-thin With Hook Wafer Horizontal SMT Elevated Pin header Connector 6P

2 week ago

2 0

Shenzhen Yangzhan Electronics Co., Ltd.

 6 month year

Product details

YZTECH's 1.0mm Ultra-thin With Hook Wafer Horizontal SMT Elevated Pin Header Connector 6P redefines space-efficient connectivity with its groundbreaking hook-wafer structure. Engineered for single-row SMT installation, this DIN-type connector boasts an ultra-compact rectangular form factor measuring just 1.0mm pitch,making it ideal for high-density PCB layouts in industrial automation,consumer electronics,and automotive systems.The elevated pin configuration enhances durability during automated SMT processes,and the tin-plated contacts deliver consistent conductivity across extended operating cycles.

At its core,this wafer pin header leverages premium-grade phosphor bronze for contact material,ensuring low resistance and high elasticity for repeated mating cycles.The LCP housing offers superior dimensional stability compared to standard plastics,maintaining precise pin alignment under thermal stress.With a 6-pin single-row configuration,it supports up to 1A current per contact and 125V AC/DC voltage handling,suitable for power and signal applications alike.The SMT-compatible design features precise solder pad alignment for automated assembly,while the hook-wafer retention mechanism prevents accidental dislodging during vibration-prone environments.The LCP colloidal material provides exceptional heat resistance up to 85°C and mechanical stability down to -25°C.

This header connector's design philosophy prioritizes compatibility with global trade platforms.Its technical specifications align with international standards for DIN connectors, ensuring seamless cross-border sourcing.The reel packaging minimizes shipping costs while protecting against electrostatic discharge and physical damage during transit.The gender-specific male configuration and single-row layout cater to standardized PCB footprints, reducing design-in time for OEMs.

1.0mm Ultra-thin With Hook Wafer Horizontal SMT Elevated Pin header Connector 6P
