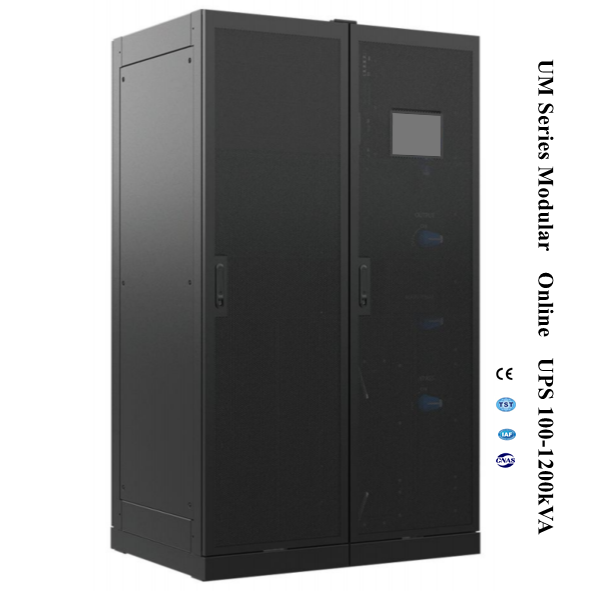

UM Series Modular Online UPS: The Future of Power Protection
#ModularUPS #PowerProtection #HighEfficiency #Flexibility
In today's fast-paced world, where power reliability is crucial for businesses and industries, the UM Series Modular Online UPS stands out as a cutting-edge solution designed to meet the most demanding requirements. With a capacity range of 100-1200kVA and the ability to scale up to 2400kVA in parallel, this modular UPS system offers unparalleled flexibility and scalability, allowing users to configure their power protection solutions precisely to their needs and invest gradually as their requirements grow.
Advanced Technology for Superior Performance:
- DSP Control Technology: Ensures excellent performance and high system stability. The Digital Signal Processor (DSP) provides precise control and monitoring, guaranteeing reliable power supply under various conditions.
- High Efficiency: Utilizing three-phase Vienna and three-level technology, the UM Series achieves an impressive 97% efficiency, significantly reducing energy consumption and operational costs.
- Output Power Factor of 1.0: This means that the UPS can deliver maximum power to connected loads without any power factor limitations, ensuring optimal utilization of the available power capacity.
Robust and Reliable Design:
- Centralized Control Redundancy: With N+X parallel redundancy, the system can achieve an availability rate of up to 99.999%, providing unparalleled reliability and minimizing the risk of power outages.
- Centralized Bypass: Enhances the power supply capability, ensuring continuous operation even in the event of a fault or maintenance.
- EPO and REPO Function: Emergency Power Off (EPO) and Remote Emergency Power Off (REPO) functions offer additional layers of safety and control, allowing users to shut down the system remotely if necessary.
- Modular Design: The adjustable power module quantity and hot-swappable modules ensure that maintenance can be performed quickly and efficiently, reducing downtime to a minimum.
- 10-Inch Color Touch Screen: Provides a comprehensive overview of the UPS status, making monitoring and management easy and intuitive. The user-friendly interface displays real-time data, alarms, and system parameters.
Smart Battery Management:
- Intelligent Charging: The smooth switching charging mode, controlled via the LCD settings, ensures fast charging while extending battery life. This intelligent charging system adapts to different battery conditions, optimizing the charging process and reducing the need for frequent battery replacements.
- Parallel Shared Battery Technology: Reduces battery investment by allowing multiple UPS units to share a single battery bank, lowering overall costs and simplifying battery management.
- Flexible Battery Configuration: With the option to use 30-50 battery pieces without an N line, users can configure their battery setup according to their specific requirements, providing greater flexibility and customization.
Space-Saving and Environmentally Friendly:
- 3U Modular Design: Saves valuable machine room space, making the UM Series an ideal solution for data centers, industrial facilities, and other environments where space is limited.
- Quiet Operation: With a noise level of less than 70dB at a distance of 1 meter, the UPS operates quietly, ensuring a comfortable working environment.
Modular UPS Comprehensive Protection and Communication:
- Protection Features: The UM Series offers comprehensive protection against overload, utility abnormalities, UPS faults, low battery, and other potential issues. It also includes short circuit protection, over-temperature protection, battery low alarm, fan fault alarm, bypass back irrigation protection, and lightning protection to safeguard both the UPS and connected equipment.
- Communication Interface: Equipped with a wide range of communication interfaces, including CAN, RS485, network port, dry connector, parallel port, LBS, SNMP, and temperature sensor port, the UPS can be easily integrated into existing monitoring systems and networks, enabling remote monitoring and management.
Compliance with International Standards:
- EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3: The UM Series Modular Online UPS meets the highest industry standards, ensuring reliability, safety, and compatibility with various electrical systems.
Whether you are looking to protect critical data center infrastructure, industrial equipment, or any other sensitive load, the UM Series Modular Online UPS is the perfect choice. Its advanced technology, modular design, and extensive features make it a reliable and efficient solution for all your power protection needs. Invest in the UM Series today and secure your power supply for the future.
