Product details

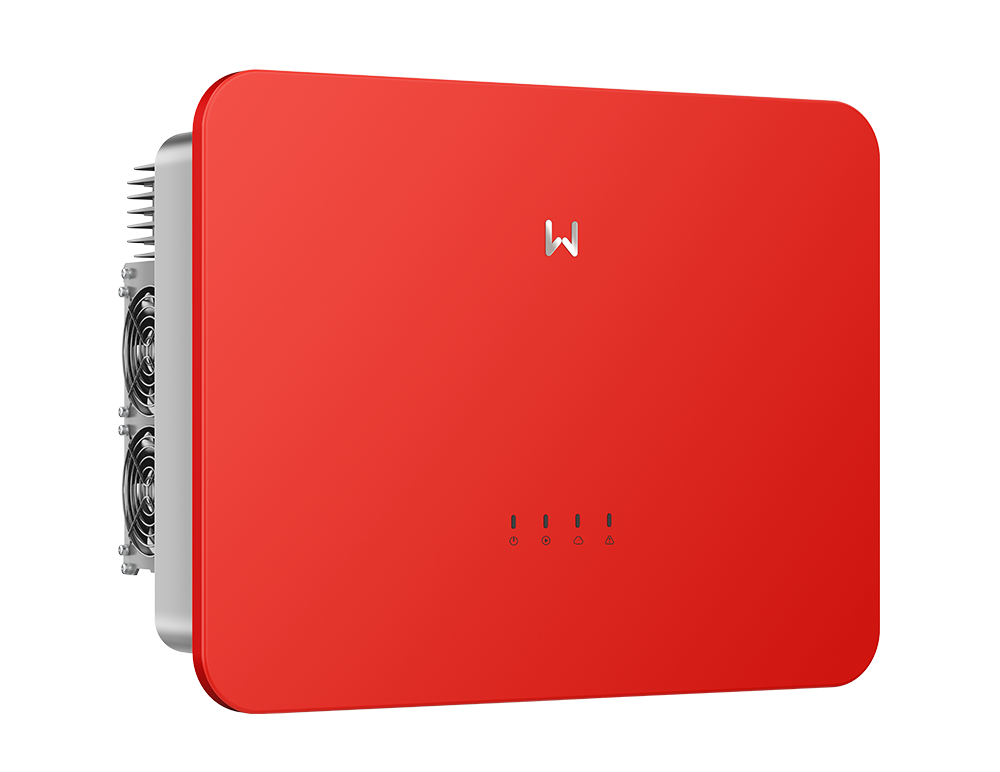

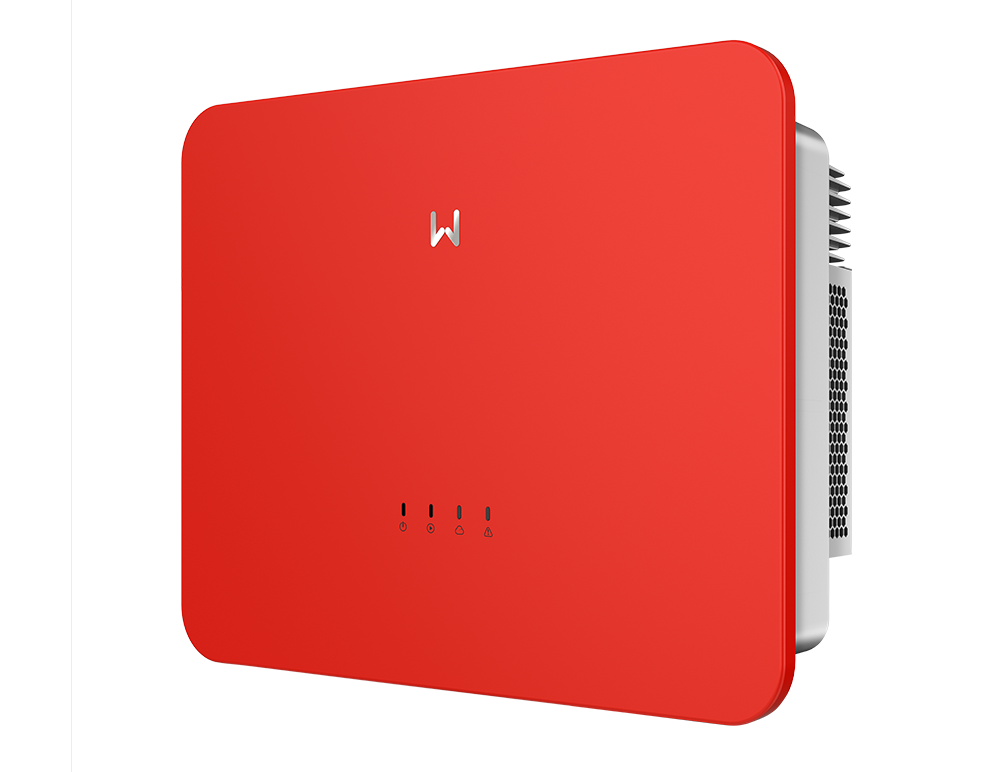

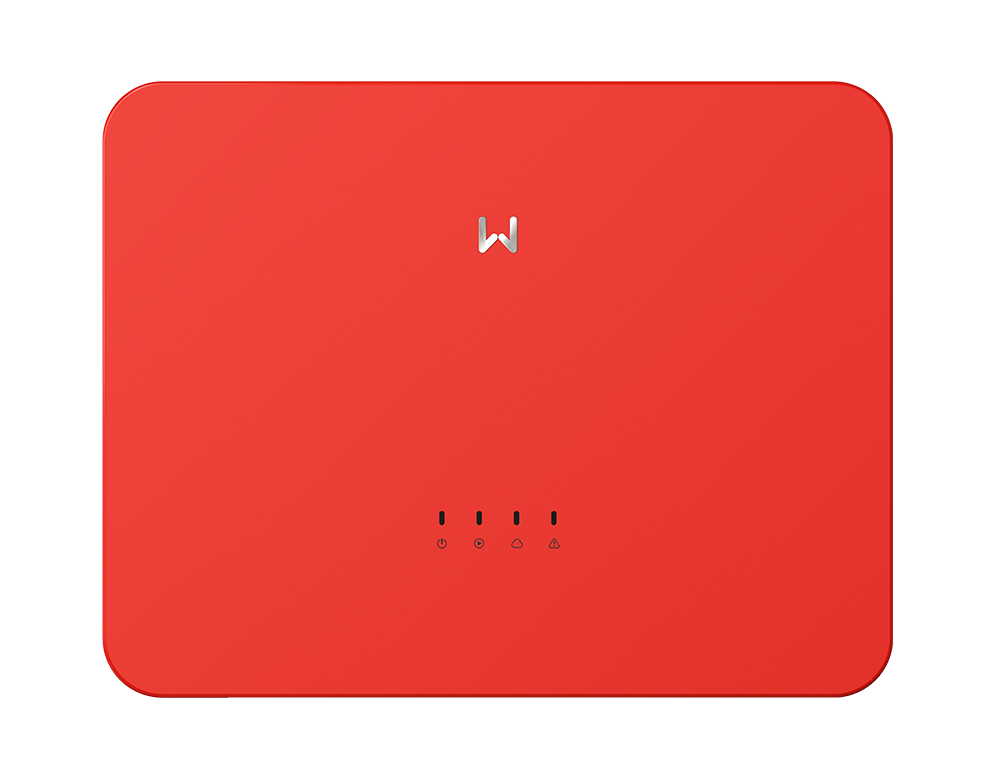

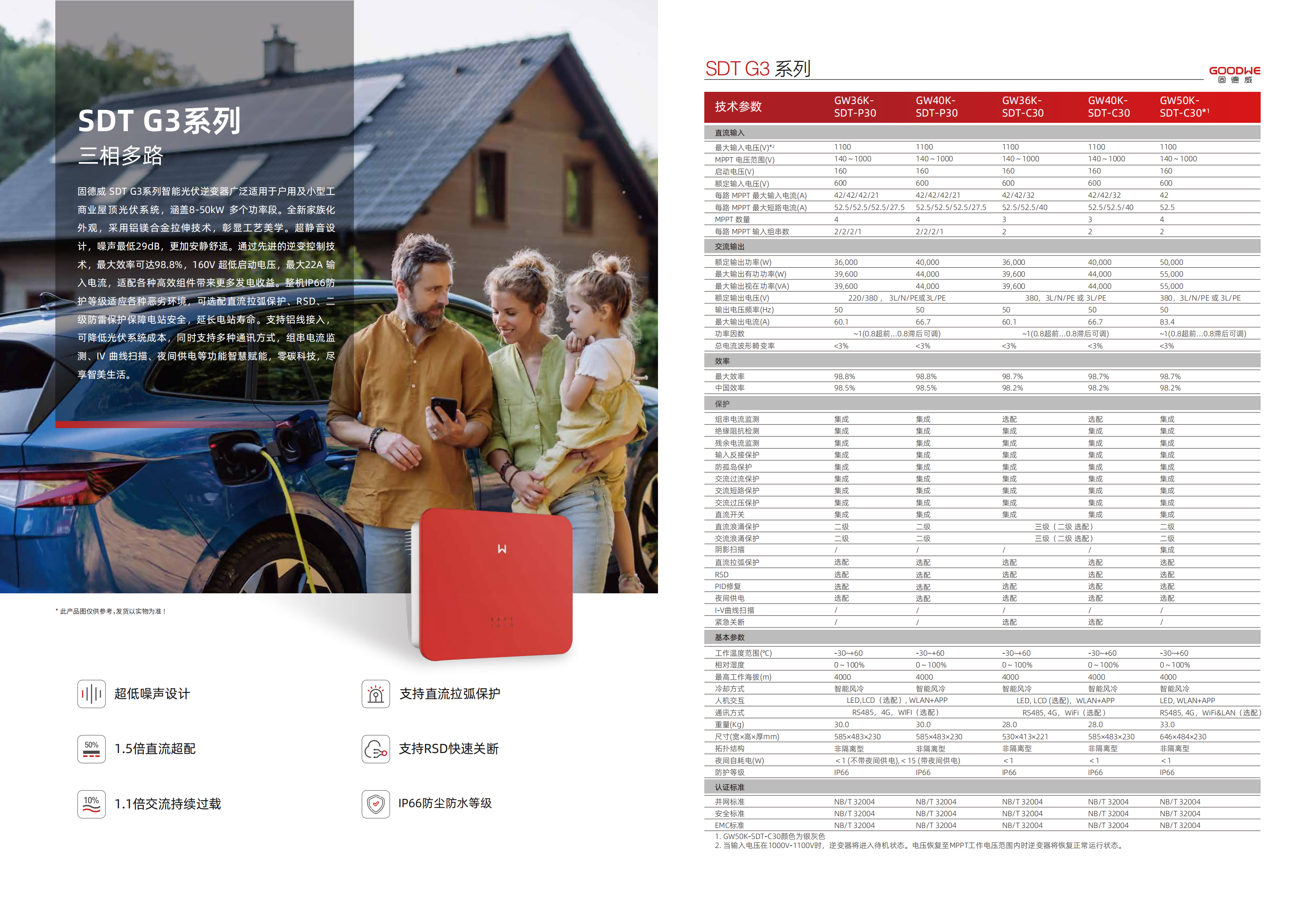

The SDT G3Household Solar Inverter 36-50kw in the Household Solar Energy System adopts AFCI3.0 and AI algorithm to calculate and iterate massive data, forming a unique arc feature library. Combining AI with deep learning, the detection model continuously learns unknown spectra, effectively improving noise adaptability; The maximum adaptive current of 30A can fully meet the trend of high-power components in the current market; The detection distance is up to 200m; it adopts the exclusive control chip of Gudewei, which has stronger computing power and can quickly shut down and cut off the power within 500ms, far below the industry standard of 2.5s; Realize 100% accurate detection, with no missed or false alarms.

Suitable for household solar systems and industrial and commercial solar energy storage systems, it can easily adapt to multiple power ranges ranging from 8-50kW, whether it is spacious villa roofs or ordinary residential roofs. Newly designed appearance, using aluminum magnesium alloy stretching technology. The whole machine adopts IP66 protection level to adapt to various harsh environments, with ultra quiet design and a minimum noise of 29dB, making it quieter and more comfortable. Through advanced inverter control technology, the maximum efficiency can reach 98.8%, with an ultra-low starting voltage of 160V and a maximum input current of 22A. It is compatible with various high-efficiency components to bring more power generation benefits. At the same time, DC arc protection can be optionally selected RSD、 Secondary lightning protection ensures the safety of the power station and extends its lifespan. Supporting aluminum wire access can reduce the cost of photovoltaic systems, while also supporting multiple communication methods, intelligent empowerment of functions such as string current monitoring, I-V curve scanning, and nighttime power supply.

When the input voltage is between 1000V-1100V in the Solar Powered System, the inverter will enter standby mode. When the voltage returns to the MPPT operating voltage range, the inverter will resume normal operation.
