Yokelink F1554 Grade 55 Grade 105 Galvanized Anchor Bolt

Yokelink F1554 Grade 55 Grade 105 Galvanized Anchor Bolt

3 week ago

2 0

Ningbo Yokelink Machinery Co.,Limited

 10 year year

Product details

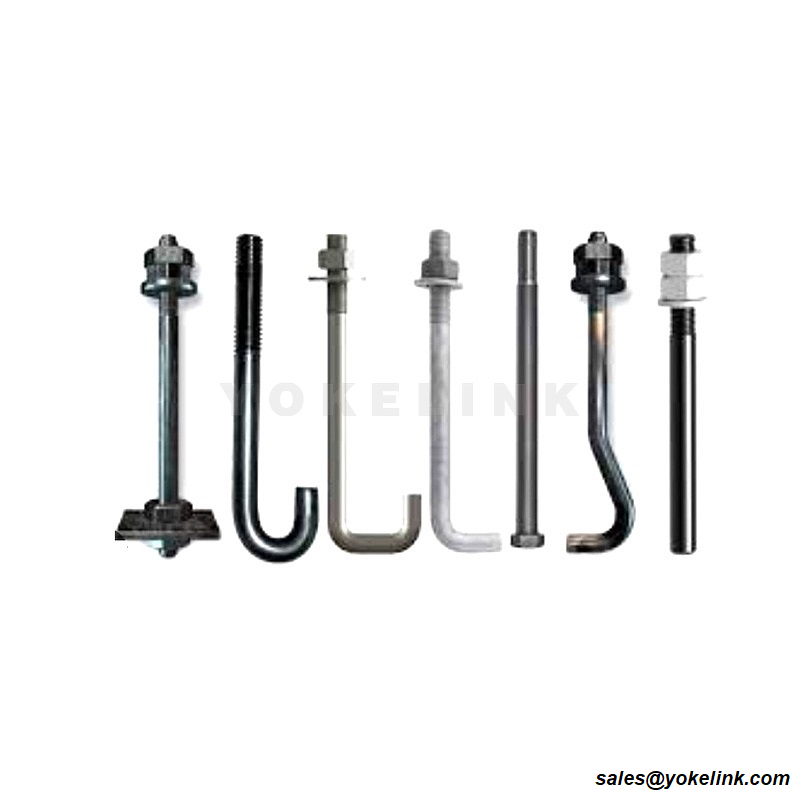

Multiple Shapes Straight J L Type ASTM F1554 Grade 36 55 105 Concrete Anchors Construction Bolt

ASTM F1554 is a standard specification for anchor bolts that are designed to be used in structural applications. These bolts are typically used to secure steel structures to concrete or masonry foundations. The F1554 specification covers three grades of anchor bolts: Grade 36, Grade 55, and Grade 105. The F1554 is a specification for a type of anchor bolt defined by the ASTM (American Society for Testing and Materials). It sets the standards for low-strength, carbon steel anchor bolts used in construction to fasten structural elements to concrete or other base materials.

F1554 Anchor Bolt Specification Details:

Grades: F1554 anchor bolts come in three different grades based on strength:

Grade 36 (min yield strength of 36 ksi or 250 MPa)
Grade 55 (min yield strength of 55 ksi or 380 MPa)
Grade 105 (min yield strength of 105 ksi or 725 MPa)
Grade 36 is the most commonly used for general applications, while Grade 105 is used for higher-strength applications.

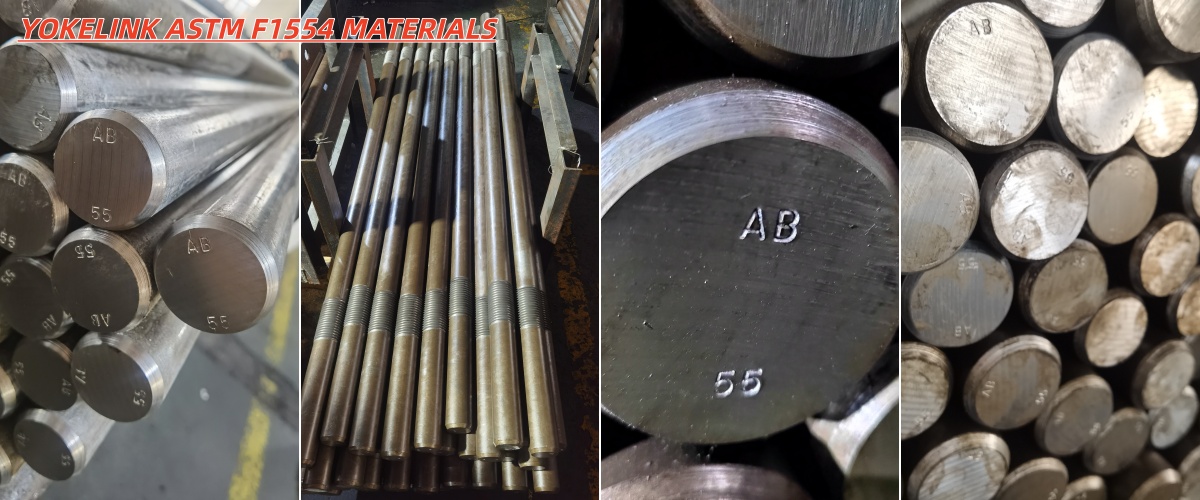

Yokelink Astm F1554 Anchor Bolts Materials:

F1554 Anchor bolts are typically made of carbon steel, though they may have specific coatings (like zinc plating) for corrosion resistance. The primary material for F1554 anchor bolts is carbon steel. This steel is made from iron and a small amount of carbon, making it strong and relatively inexpensive, though not as resistant to corrosion as some other materials. Carbon steel bolts are used in many general construction applications.

Grades of Carbon Steel:

F1554 specifies three grades of anchor bolts, each with a different minimum yield strength. These are based on different levels of carbon content and heat treatment processes.

Grade 36: This is the lowest-strength option, with a minimum yield strength of 36 ksi (250 MPa). It's suitable for most standard applications.

Grade 55: This bolt has a higher yield strength of 55 ksi (380 MPa) and is used in applications that need a bit more strength, but where extreme loads are not a factor.

Grade 105: The highest strength in the F1554 specification, with a minimum yield strength of 105 ksi (725 MPa). It's ideal for high-stress environments like seismic or heavy industrial applications.

Heat Treatment:

The material can undergo different heat treatments to increase its strength and hardness, which can affect the bolt's performance under load.

ASTM F1554 Grade 36 55 105 Anchor Bolt Application

Coatings and Finishes:

Because carbon steel is susceptible to corrosion, coatings or finishes are often applied to the bolts to improve their durability in harsh environments. These include:

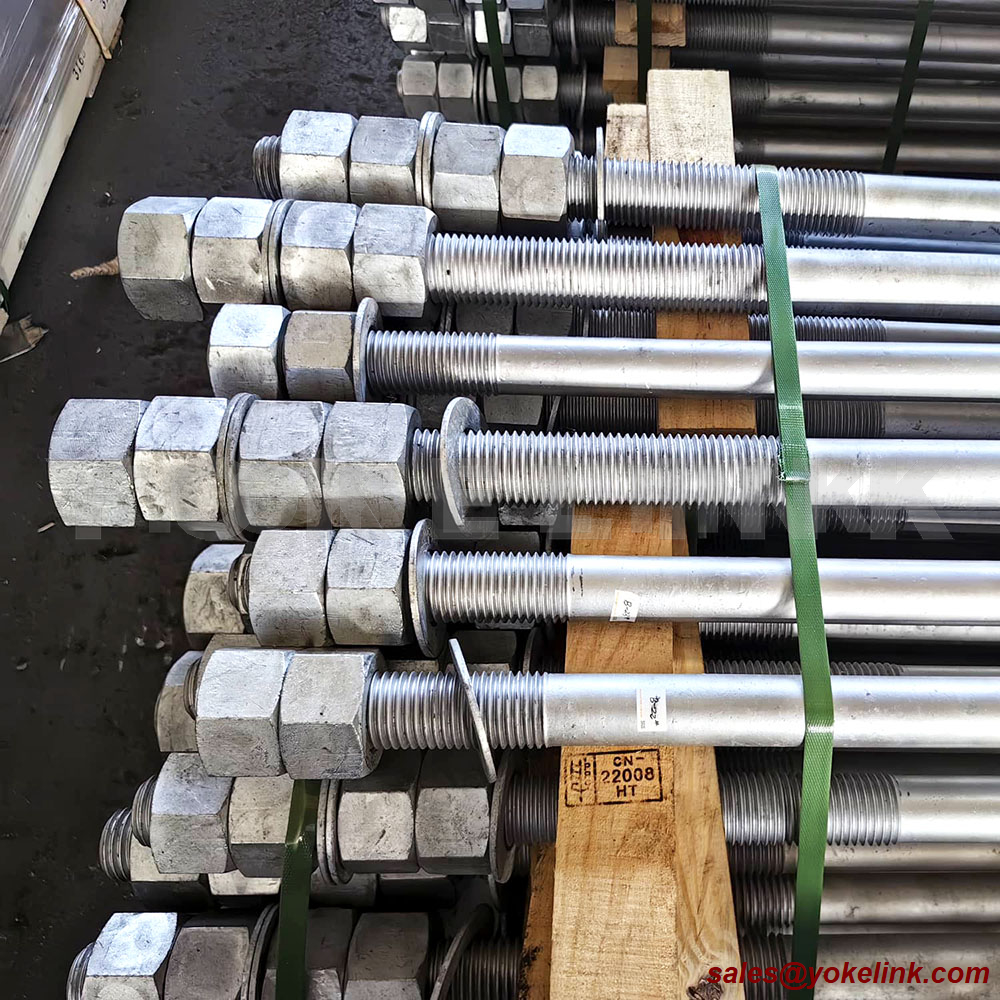

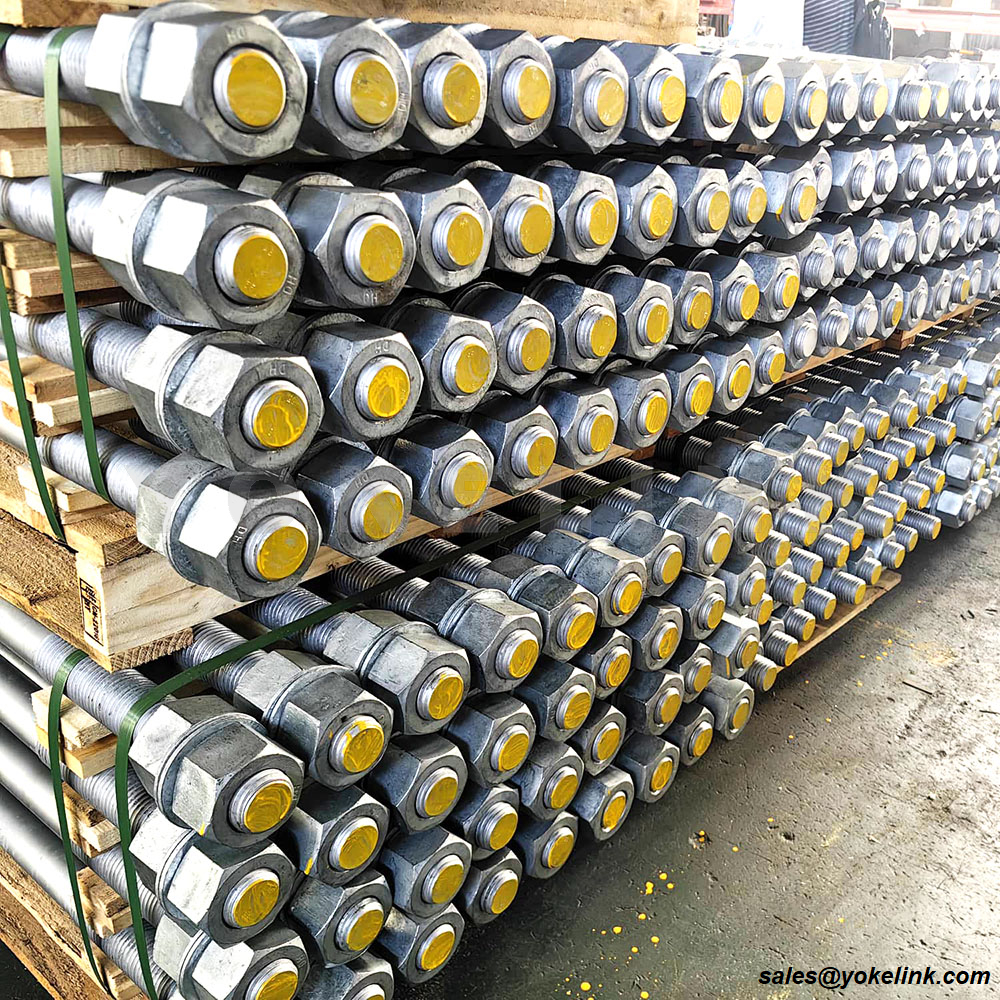

Hot-Dip Galvanization: A process where the steel bolt is dipped in molten zinc, forming a protective layer. This is commonly used for bolts exposed to outdoor or marine environments. The zinc coating protects the steel from rust and corrosion.

Zinc Plating: A thinner coating of zinc applied to the surface to prevent rusting. This is generally used in less corrosive environments, like indoor construction projects.

Epoxy Coatings: Some bolts are coated with epoxy or similar coatings to improve their resistance to corrosion, especially in environments with chemical exposure.

Nickel and Other Metal Coatings: For extremely harsh environments (e.g., marine environments), a more specialized coating like nickel plating might be used to further enhance corrosion resistance.

F1554 Anchor bolt Threading:

F1554 bolts can have either full-threaded, partially threaded, or smooth sections. This allows them to be used in various applications, such as for securing columns, equipment, or other structures to foundations.

F1554 Anchor bolt Dimensions:

F1554 Anchor bolt come in various sizes, and the specification includes detailed dimensions for bolt length, diameter, and threading requirements.

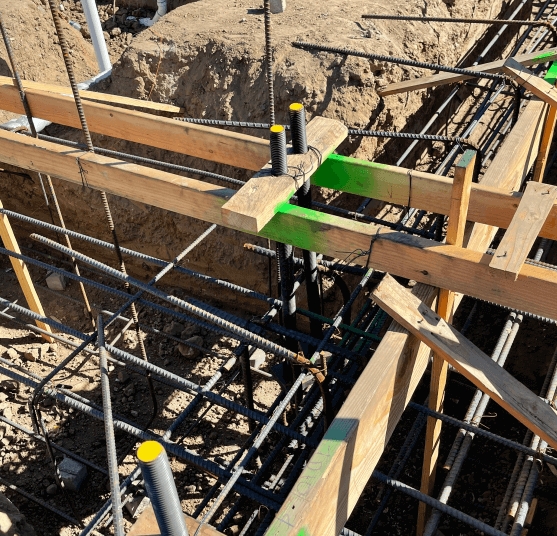

Common Uses: F1554 Anchor bolts are commonly used in applications like:

Structural steel connections
Anchoring machinery or equipment to concrete foundations
Securing columns and posts in building structures

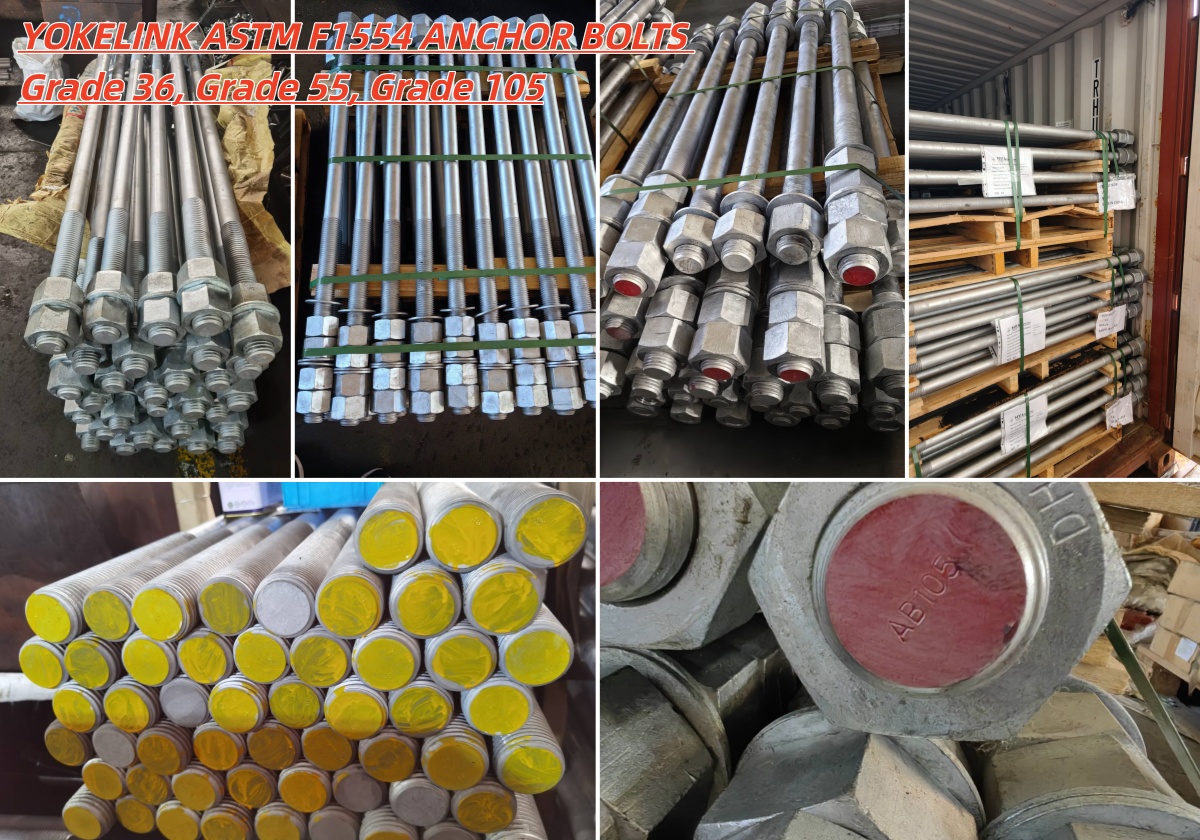

YOKELINK ASTM F1554 GRADE 36 GRADE 55 GRADE 105 ANnchor Bolts Factory Manufacturer

When you need ASTM F1554 Anchor Bolts or Anchor Rods, refer to above our catalog. We offer them in a full selection of sizes. Provide the length, diameter or part number. Our ASTM F1554 Anchor Bolts are available plain or with Hot dip galvanized (HDG) finish. To get a quote on these anchor bolts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.

ASTM F1554 ANCHOR BOLT GRADE 36 GRADE 55 GRADE105
