1.0mm Pitch Pin Header Connector Single Row Right Angle Dual Plastic

3 week ago

2 0

Shenzhen Yangzhan Electronics Co., Ltd.

 6 month year

Product details

YZTECH introduces its 1.0mm pitch pin header connector—a compact, single-row, right-angle male header connector designed for space-constrained PCB layouts. Featuring 12 positions per row in a rectangular form factor,it supports DIN-standard PCB integration through a reliable bending plug installation.The brass contacts with half gold tin plating deliver low-resistance signal transmission, rated for 0.75A current and 600V voltage, while offering corrosion resistance.

Built with a PA6T colloidal housing,the pin header ensures excellent flame retardancy and chemical resistance, outperforming standard nylon in high-temperature settings. Its operating temperature spans from -45°C to +105°C, and it withstands soldering temperatures up to 220°C for 10 seconds, making it compatible with automated assembly processes. The right-angle design maximizes PCB space efficiency, ideal for dense electronic layouts.

Suitable for a wide range of applications—including consumer electronics,IoT devices,automotive control modules, and medical equipment—this 1.0mm pin header is packaged securely in boxes for safe transport and streamlined manufacturing. It meets international trade and PCB design standards, ensuring global supply chain compatibility.

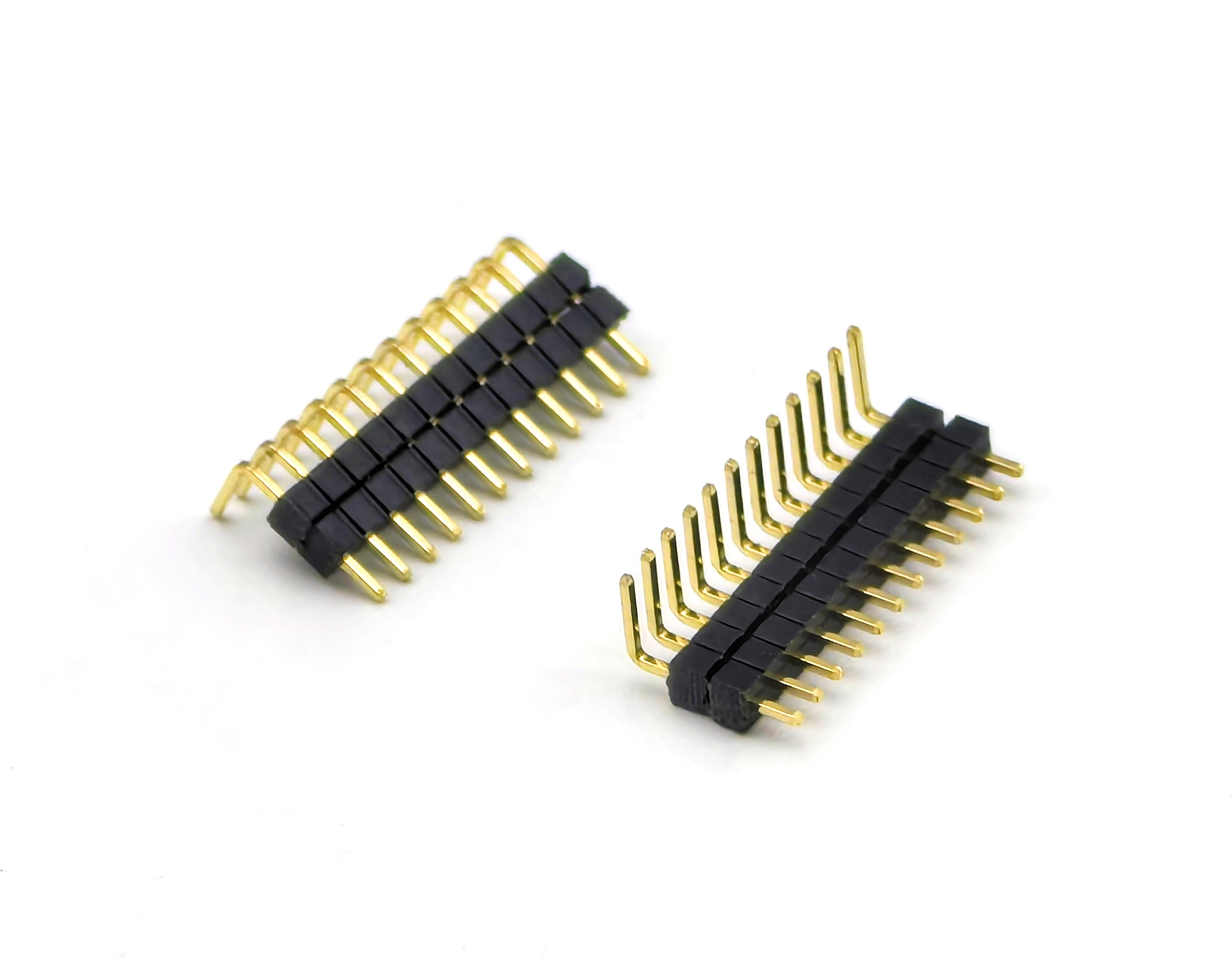

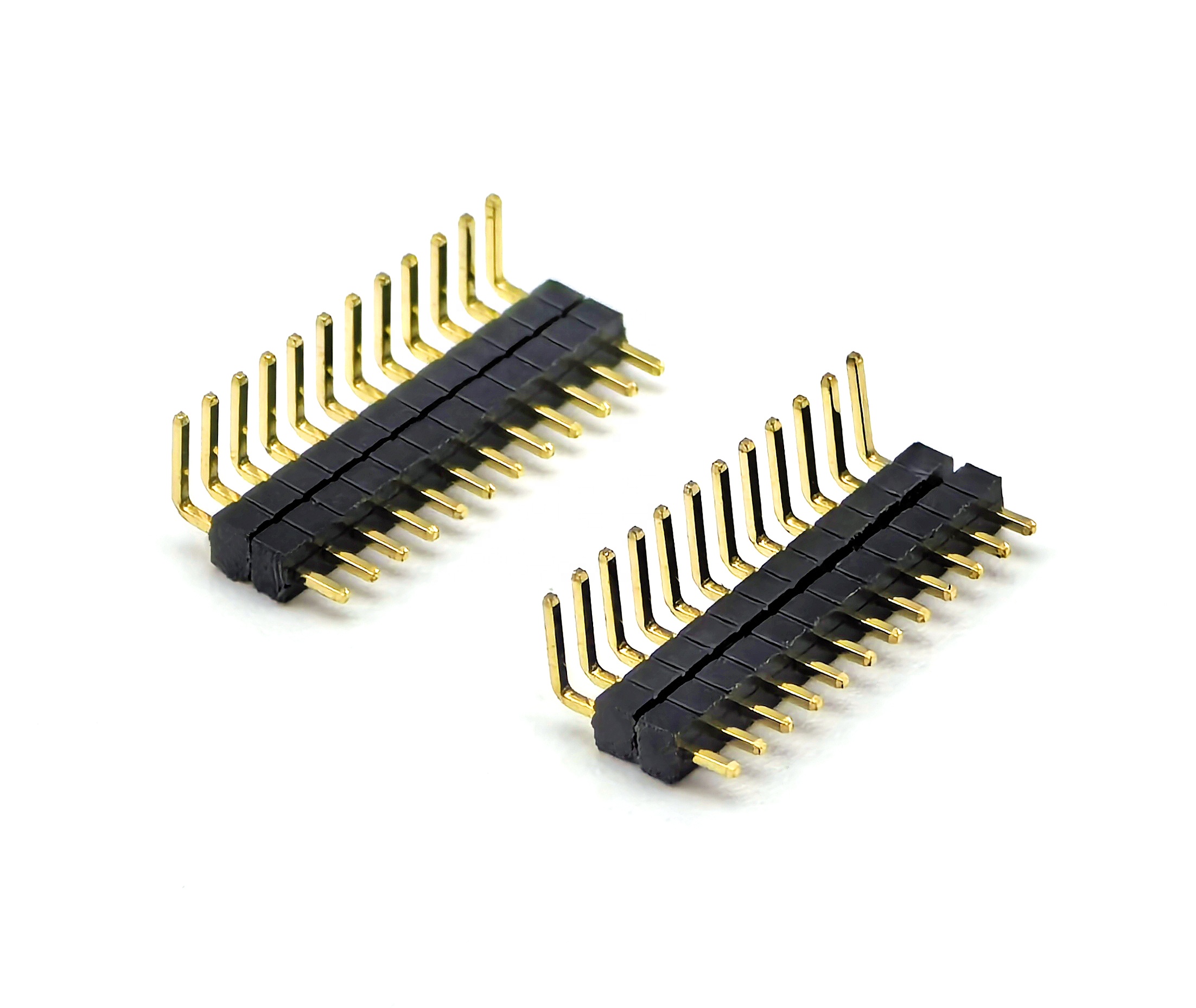

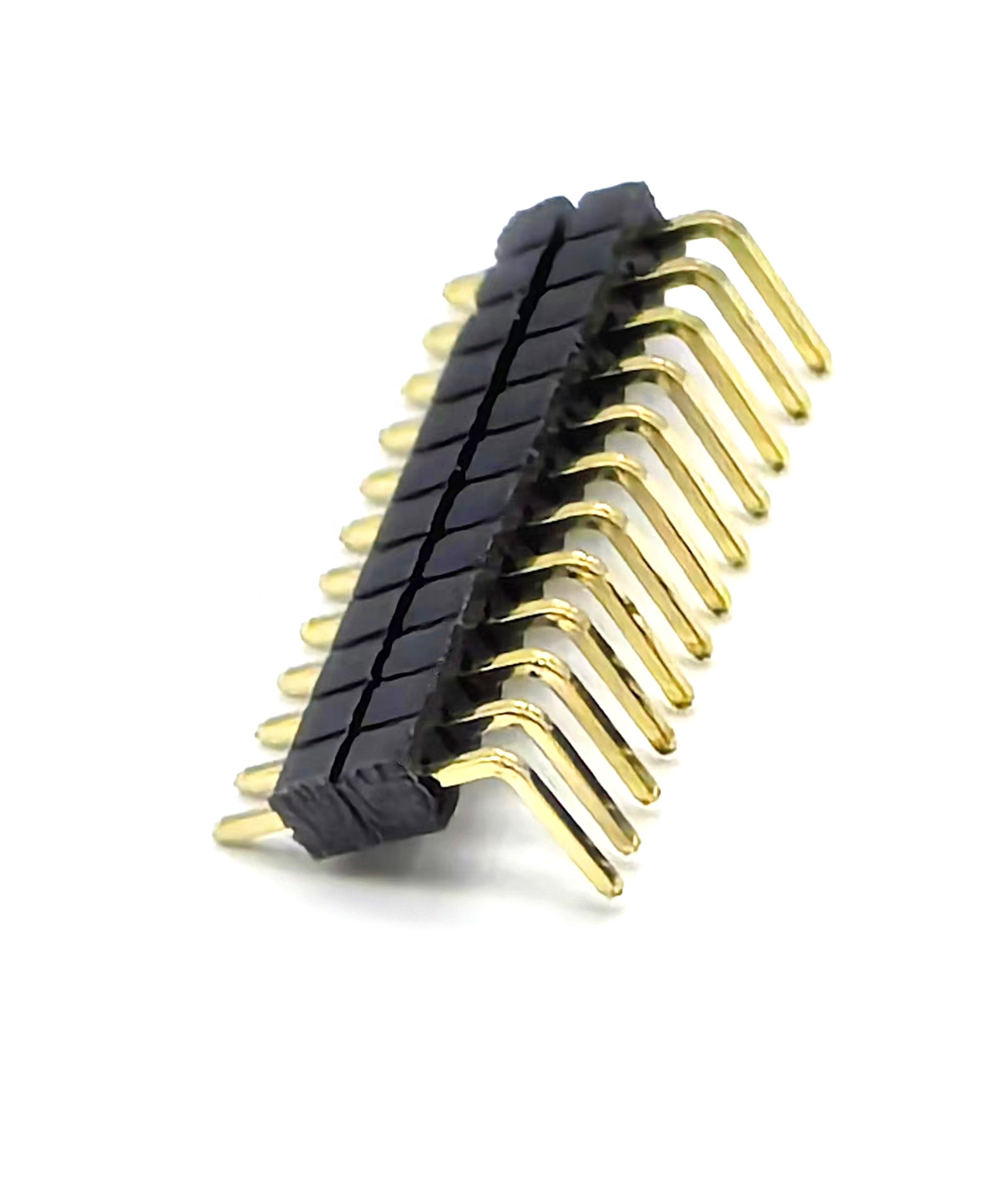

1.0mm Pitch Pin Header Connector Single Row Right Angle Dual Plastic H:2.0mm 1*12P
