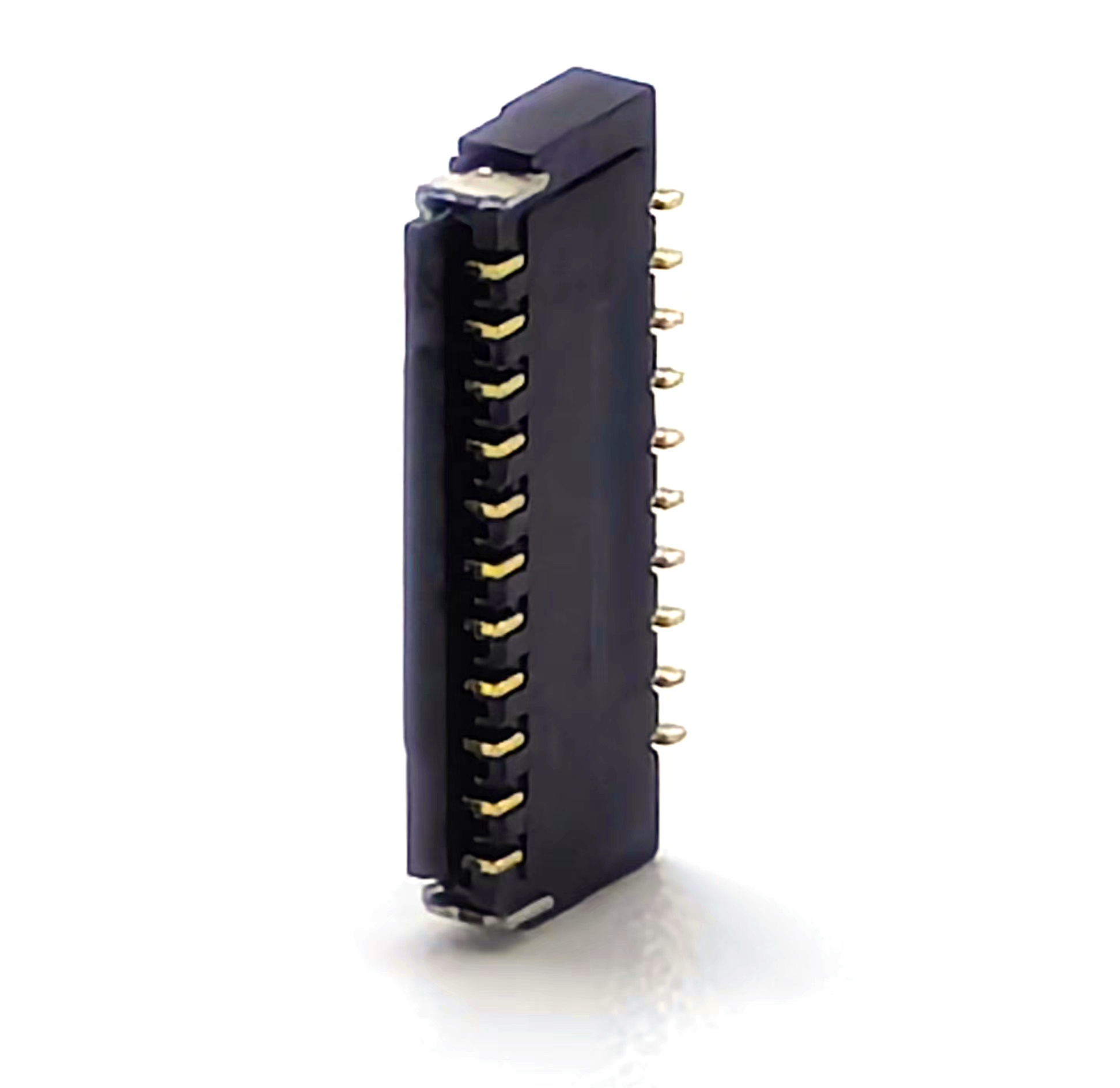

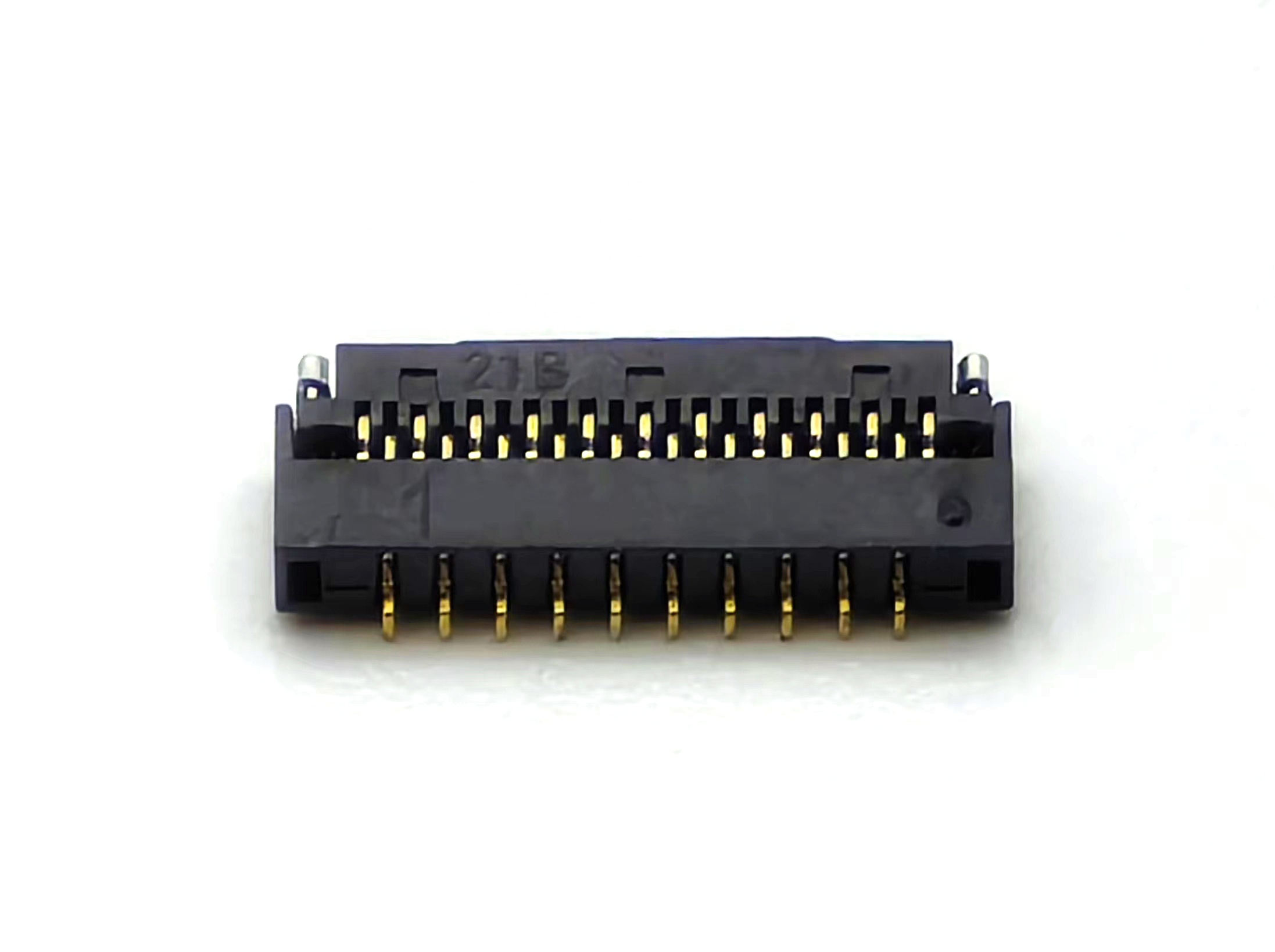

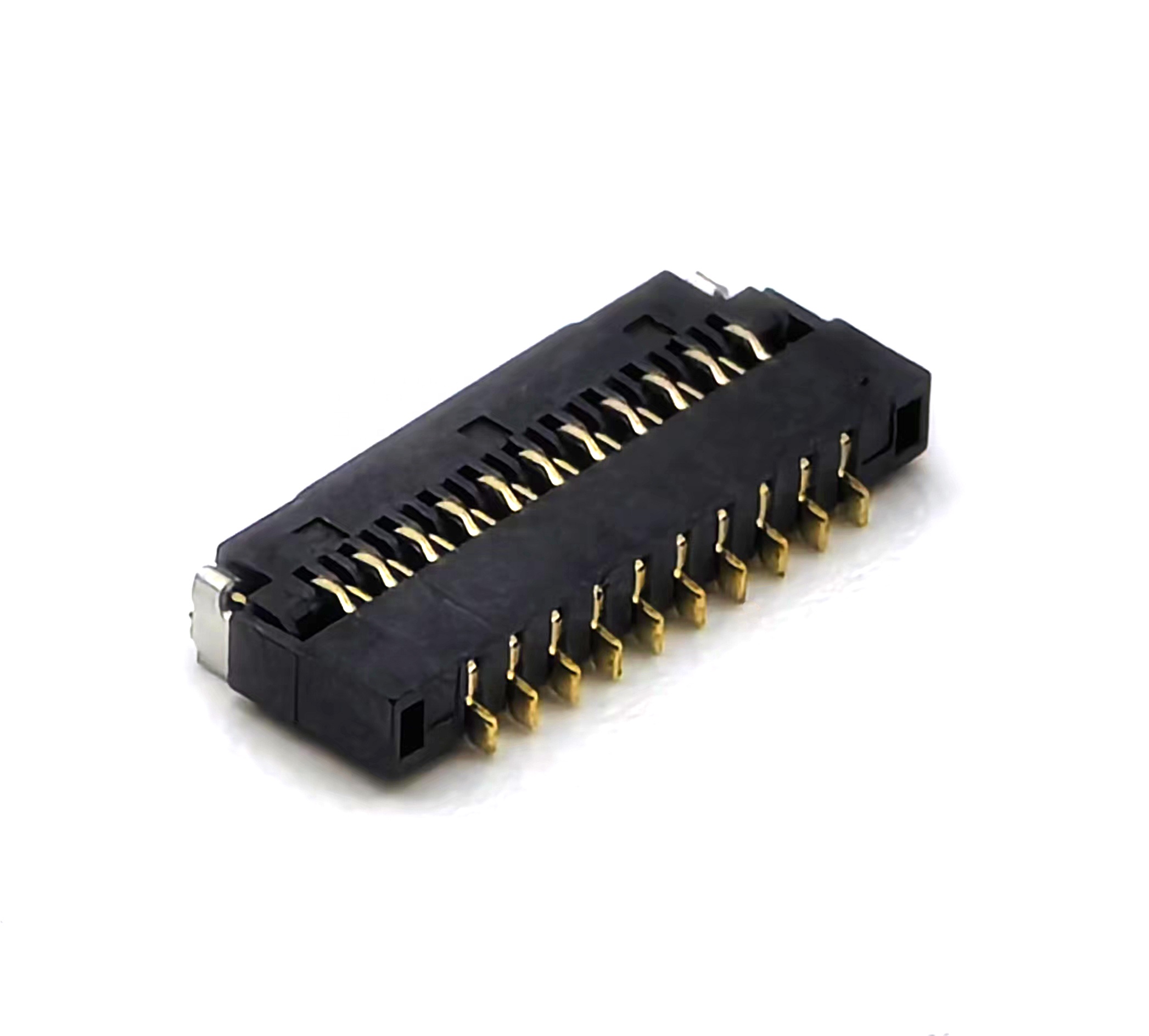

0.3mm Pitch FPC Connector Top-Entry Bottom-Actuated H1.0mm 21P

3 week ago

1 0

Shenzhen Yangzhan Electronics Co., Ltd.

 6 month year

Product details

YZTECH’s H1.0mm 21-pin FPC connector redefines flexible circuit connectivity with its 0.3mm pitch design,optimized for seamless integration with Flat Flexible Cables and Flexible Printed Circuits.This top-entry bottom-actuated female header connector features gold-plated copper contacts for ultra-low signal loss and nylon colloidal housing with V0 flame rating,ensuring durability in compact wearable devices, medical implants, and automotive displays. The snap-in installation method enables tool-free assembly while maintaining reliable mechanical retention for FFC/FPC cables.UL-certified and DIN-compliant, this connector operates from -55°C to +85°C,making it ideal for cryogenic medical equipment and high-temperature industrial automation.Reel packaging supports automated SMT lines,ensuring precision placement for high-volume production of FFC-compatible PCBs.

Engineered for FFC and FPC applications,this header connector leverages gold-plated copper contacts to minimize insertion loss and maximize signal integrity at 21-pin density.The nylon housing provides superior dimensional stability under thermal cycling,critical for flexible cable bending cycles.The 0.3mm pitch design enables direct connection to FFC＆FPC connector without additional adapters,reducing assembly complexity and cost.The bottom-actuated mechanism ensures secure cable retention while allowing easy insertion/extraction—essential for field-replaceable FFC modules.Unlike rigid connectors, this design accommodates cable thickness variations, ensuring reliable connections in dynamic environments.UL certification and DIN standards compliance guarantee global regulatory acceptance,while the -55°C to +85°C range addresses extreme environmental demands in aerospace and outdoor telecom systems.

0.3mm Pitch FPC Connector Top-Entry Bottom-Actuated H1.0mm 21P
