CASAPPA MVP 30.23D-04S5-LMD/MB-N-RN0-G PUMP

CASAPPA MVP 30.23D-04S5-LMD/MB-N-RN0-G PUMP

3 week ago

2 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

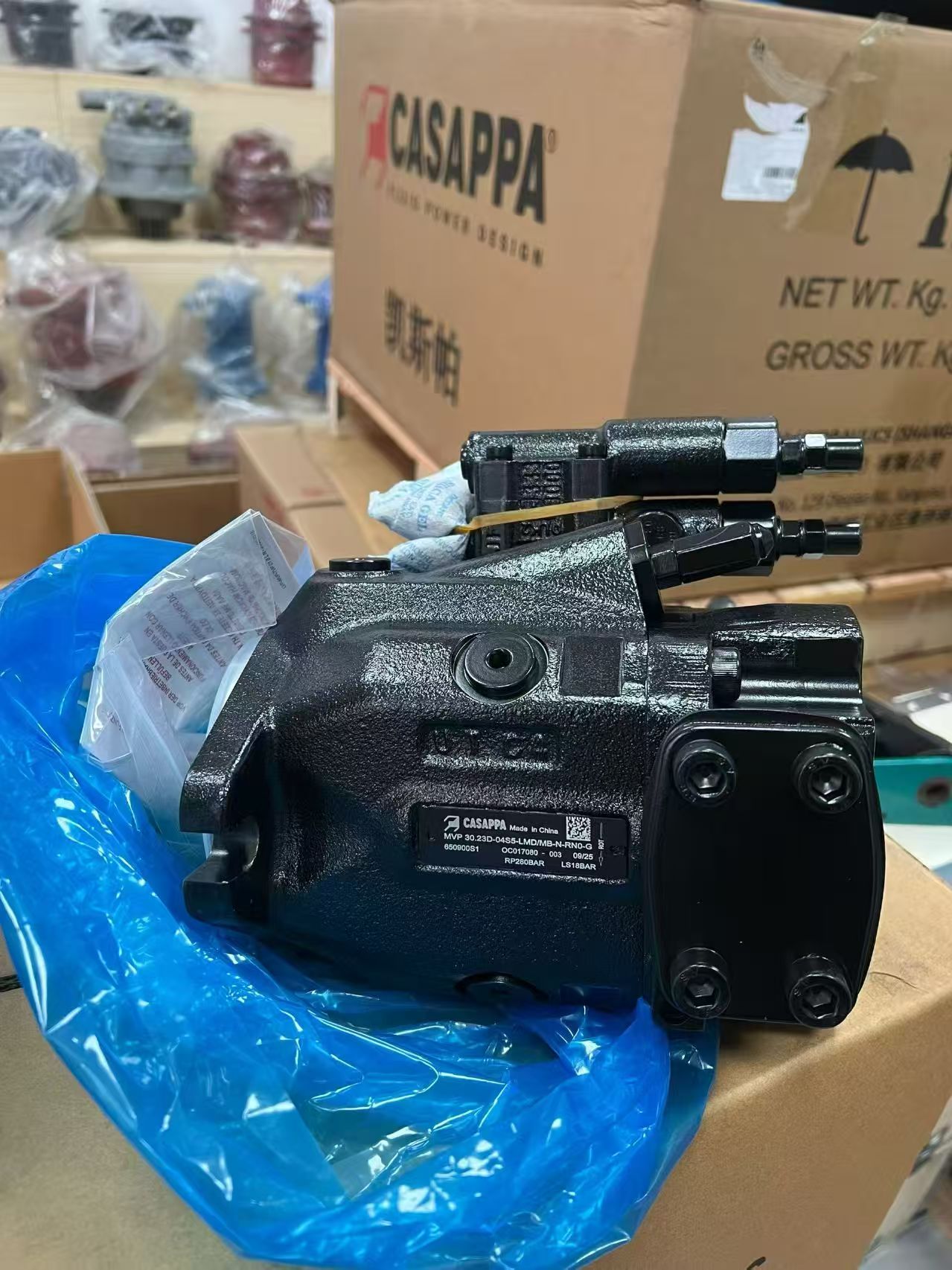

CASAPPA MVP 30.23D-04S5-LMD/MB-N-RN0-G PUMPis a piston pump manufactured byCASAPPA S.p.Ain Italy. Below is a detailed introduction to it:

I. Product Type and Structure

• Component Type: This pump is a variable displacement axial piston pump with a swashplate design, making it highly suitable for open circuits in mobile hydraulic applications.

• Structural Features: It features a compact design that allows for direct mounting on engines or motors, saving space and enhancing system efficiency.

II. Product Specifications

• Displacement Range: The pump offers a displacement range from 0.85 in³/rev (14 cm³/rev) to 5.17 in³/rev (84.7 cm³/rev), allowing for selection based on actual needs.

• Maximum Peak Pressure: It can withstand pressures up to 5800 psi (400 bar), meeting the demands of high-pressure hydraulic systems.

• Maximum Speed: The pump can operate at speeds up to 3000 min⁻¹, ensuring stable performance even under high-speed conditions.

III. Product Features

• High Efficiency: Utilizing advanced piston design and precision machining, the pump ensures efficient performance in liquid transfer.

• Low Noise Emission: Designed with a focus on low noise levels, it creates a quiet working environment.

• Short Response Time: The pump can quickly respond to control signals, enhancing the dynamic performance of the system.

• Drive Shaft Bearings Suitable for Radial and Axial Loads: This enhances the durability and reliability of the pump.

• Multiple Combination and Electronic Control Options: Such as angle sensors, pressure electronic compensators, electronic control units, etc., allowing for customization based on actual needs.

IV. Application Areas

• Mobile Hydraulic Applications: Such as construction machinery, agricultural machinery, and mining machinery, which require efficient and reliable hydraulic pumps for power and control functions.

• Medium- to High-Pressure Open Circuit Applications: Such as building machinery and construction equipment, which need hydraulic pumps capable of withstanding high pressures while maintaining stable performance.

V. Installation and Maintenance

• Installation Precautions:

• The main diameter of the piping must be at least as large as the diameter of the pump ports and must be completely sealed.

• To minimize power losses, piping should be kept as short as possible, and sources of hydraulic resistance (such as elbows, throttles, gate valves, etc.) should be reduced to a minimum.

• The use of a certain length of flexible hose is recommended to reduce the transmission of vibrations.

• Before connecting the piping, remove all plugs and ensure that the piping is completely clean.

• Maintenance Recommendations:

• Regularly check the oil level and quality of the pump to ensure it operates under good lubrication conditions.

• Regularly inspect the seals and bearings of the pump, and promptly replace worn parts.

• Regularly clean the filter screen and radiator of the pump to ensure good heat dissipation performance.
