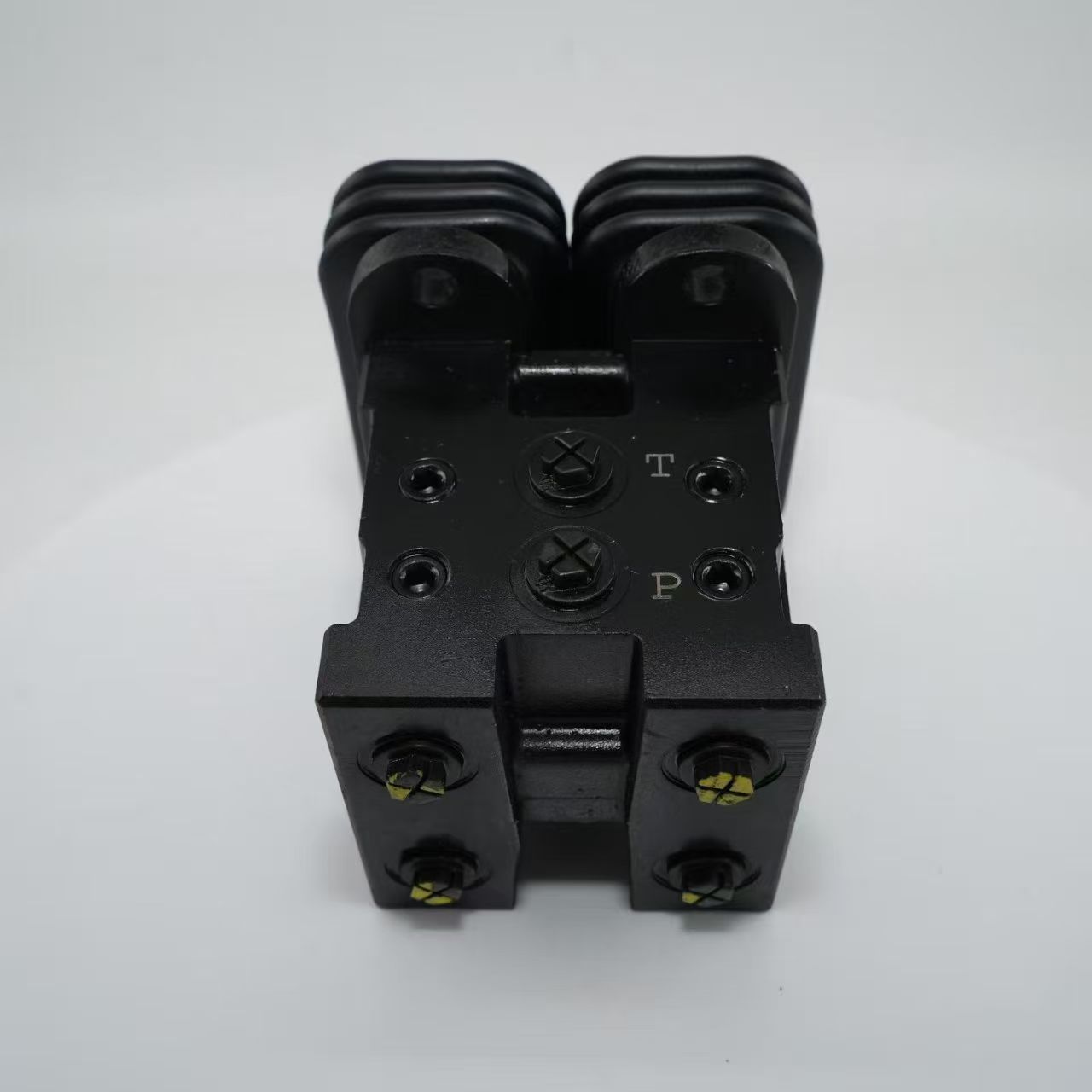

I. Foot Pedal Valve
1. Definition and Function
A foot pedal valve is a device that controls the on/off state or direction of fluid (e.g., air, hydraulic oil) through foot-operated mechanical movement. Its primary function is to convert foot motion into fluid control signals for remote or hands-free operation.
2. Structural Features
• Pedal Design: Typically flat or curved with anti-slip textures for stable operation.
• Valve Body: Contains a spool, spring, and seals; pedal displacement moves the spool to alter fluid pathways.
• Interface Type: Commonly equipped with G1/4-inch threaded ports for standard pneumatic/hydraulic piping.
3. Application Scenarios
• Industrial Equipment: Used in presses and shear machines for quick start/stop control, enhancing operational efficiency.
• Medical Devices: Adjusts surgical tables or dental chairs, freeing hands for other tasks.
• Vehicle Control: Some construction vehicles (e.g., forklifts) use foot pedal valves to regulate hydraulic systems.
• Laboratory Equipment: Controls pneumatic mixers by adjusting stirring speed via pedal pressure.
4. Advantages and Limitations
• Advantages:
• Hands-free operation, ideal for multi-tasking environments.
• Adjustable force: Pedal depth controls fluid flow/pressure.
• Limitations:
• Prolonged use may cause fatigue.
• Lower precision compared to manual valves, suited for coarse control.
------

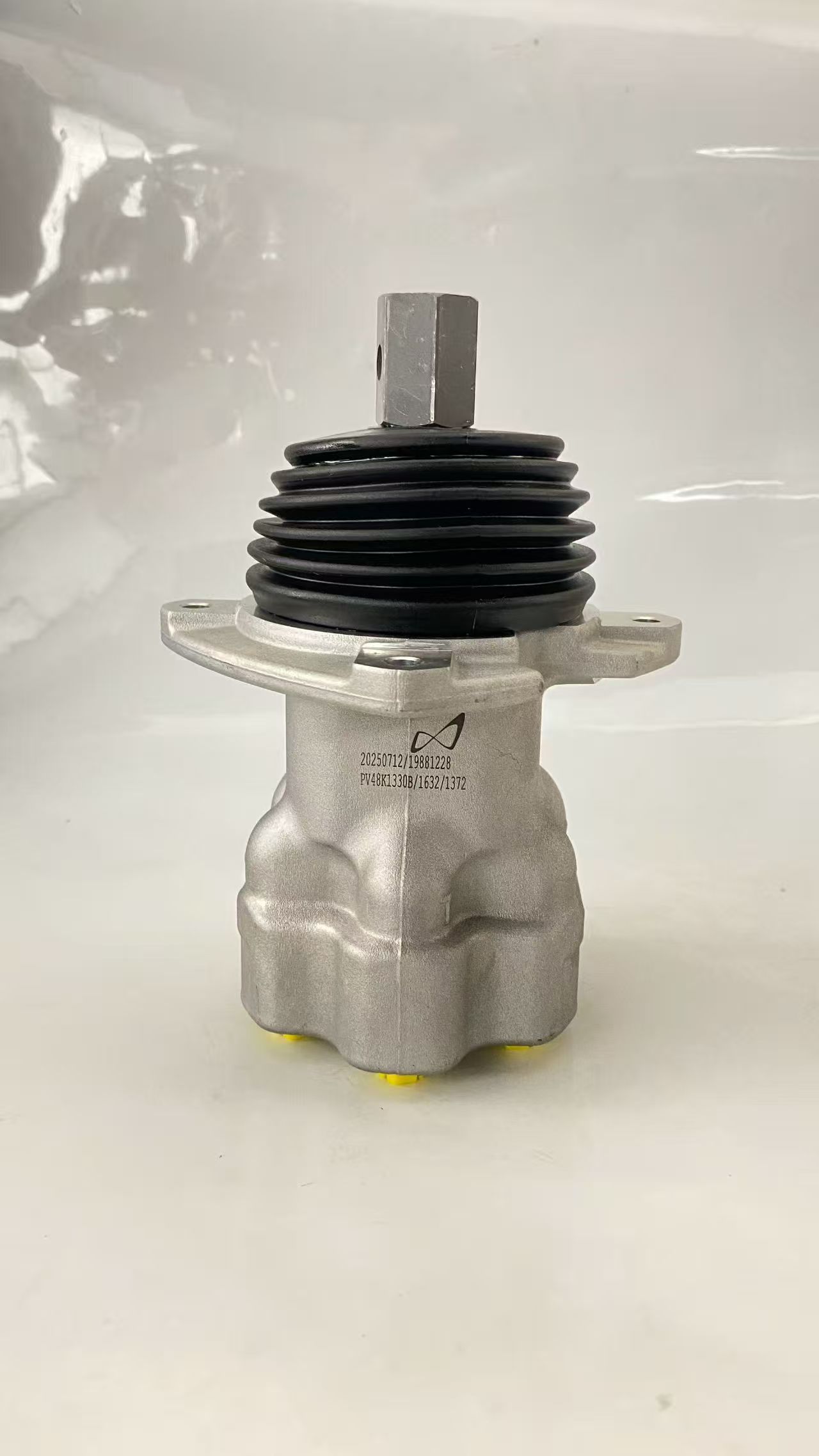

II. Control Lever
1. Definition and Function
A control lever is a manually operated device that controls mechanical or electronic systems through push/pull or rotational movements. Its core function is to translate hand motions into directional, speed, or switch signals for precise control.
2. Structural Features
• Lever Design: Typically metallic or plastic, with customized length/diameter for specific applications.
• Connection Method: Linked to control mechanisms via ball joints or universal joints for multi-angle movement.
• Additional Components: Some levers include locking mechanisms, dampers, or sensors to enhance stability.
3. Application Scenarios
• Aerospace: Aircraft cockpit levers control flight attitude and engine power.
• Construction Machinery: Excavator/crane levers manipulate arm movements and hydraulic systems.
• Gaming Devices: Joysticks on game controllers adjust character movement and camera angles.
• Industrial Robots: Program or manually control robot trajectories via levers.
4. Advantages and Limitations
• Advantages:
• Intuitive operation: Lever displacement directly reflects control intent.
• High precision for fine adjustments (e.g., robotic surgery).
• Limitations:
• Prolonged use may cause hand fatigue.
• Larger footprint, unsuitable for compact spaces.
------
III. Comparison: Foot Pedal Valve vs. Control Lever
【表格】
Comparison Dimension Foot Pedal Valve Control Lever
Operation Method Foot-operated (pedaling) Hand-operated (push/pull/rotation)
Control Precision Low (suitable for on/off or coarse adjustment) High (for directional/speed precision)
Application Scenarios Industrial equipment, medical devices, vehicle control Aerospace, construction machinery, gaming devices
Ergonomics Hands-free but prone to foot fatigue Intuitive but may cause hand fatigue
Space Requirement Compact (mounted on floor/equipment base) Larger (requires hand-operation space)
------
IV. Selection Guidelines
1. Prioritize Foot Pedal Valve When:
• Hands-free operation is required (e.g., medical devices, presses).
• Control demands are simple (e.g., on/off switching).
• Space is limited, necessitating floor-mounted controls.
2. Prioritize Control Lever When:
• High-precision control is needed (e.g., robotics, flight simulation).
• Control demands are complex (e.g., multi-directional/parameter adjustments).
• Operators need to simultaneously monitor displays or gauges.
3. Combined Use Scenarios:
• Some construction machinery integrates both: foot pedal valves for hydraulic pump activation and control levers for arm manipulation.
• Medical surgical tables may use foot pedals for height adjustment and levers for angle control.
