1.27mm*2.54mm Pitch Female Header Connector Dual Row SMT

2 week ago

0 0

Shenzhen Yangzhan Electronics Co., Ltd.

 6 month year

Product details

Achieving superior performance in compact and high-voltage PCB designs, the YZTECH 1.27mm Female Header delivers exceptional density and reliability.This dual-row,30-position header connector is engineered for horizontal surface-mount installation,enabling stable,low-profile board-to-board connections.It stands out with its impressive 1000V rated voltage and 3A current capacity,making it a robust solution for applications demanding higher power integrity within a minimal footprint.The female gender and rectangular shape ensure precise mating compatibility with corresponding male pin headers,facilitating secure and stable circuit integration.

Durability and signal fidelity are paramount in this header's construction.The contacts are manufactured from brass and feature a specialized half-gold,tin plating.This hybrid coating strategically combines the excellent conductivity and corrosion resistance of gold in the critical mating area with the cost-effective solderability of tin in the termination zone.The insulator is made from high-performance PA6T thermoplastic,which provides exceptional resistance to thermal stress,ensuring dimensional stability during reflow soldering processes with a maximum tolerance of 220°C for 10 seconds. This robust material composition supports reliable operation across a wide temperature spectrum from -40°C to 105°C.

This female header connector is ideally suited for advanced electronics where space conservation and high-voltage tolerance are critical,such as in networking hardware, medical devices,and precision measurement instruments.Supplied in secure tube packaging,the connectors are perfectly aligned and protected from damage,ensuring smooth, efficient handling in automated assembly processes.By integrating this component,designers can enhance their product's power handling capability and connection density,achieving a new level of performance and reliability for the global market.

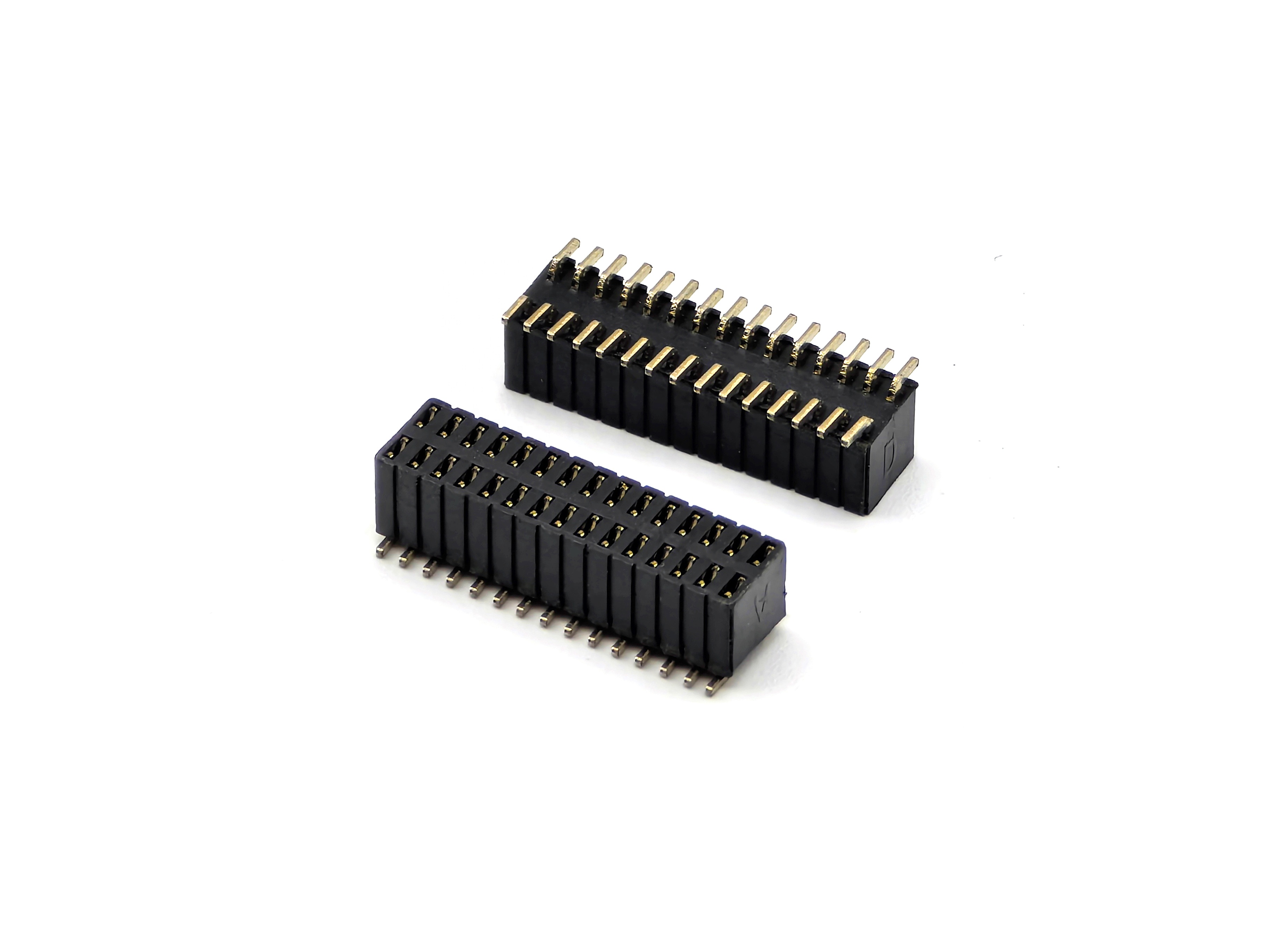

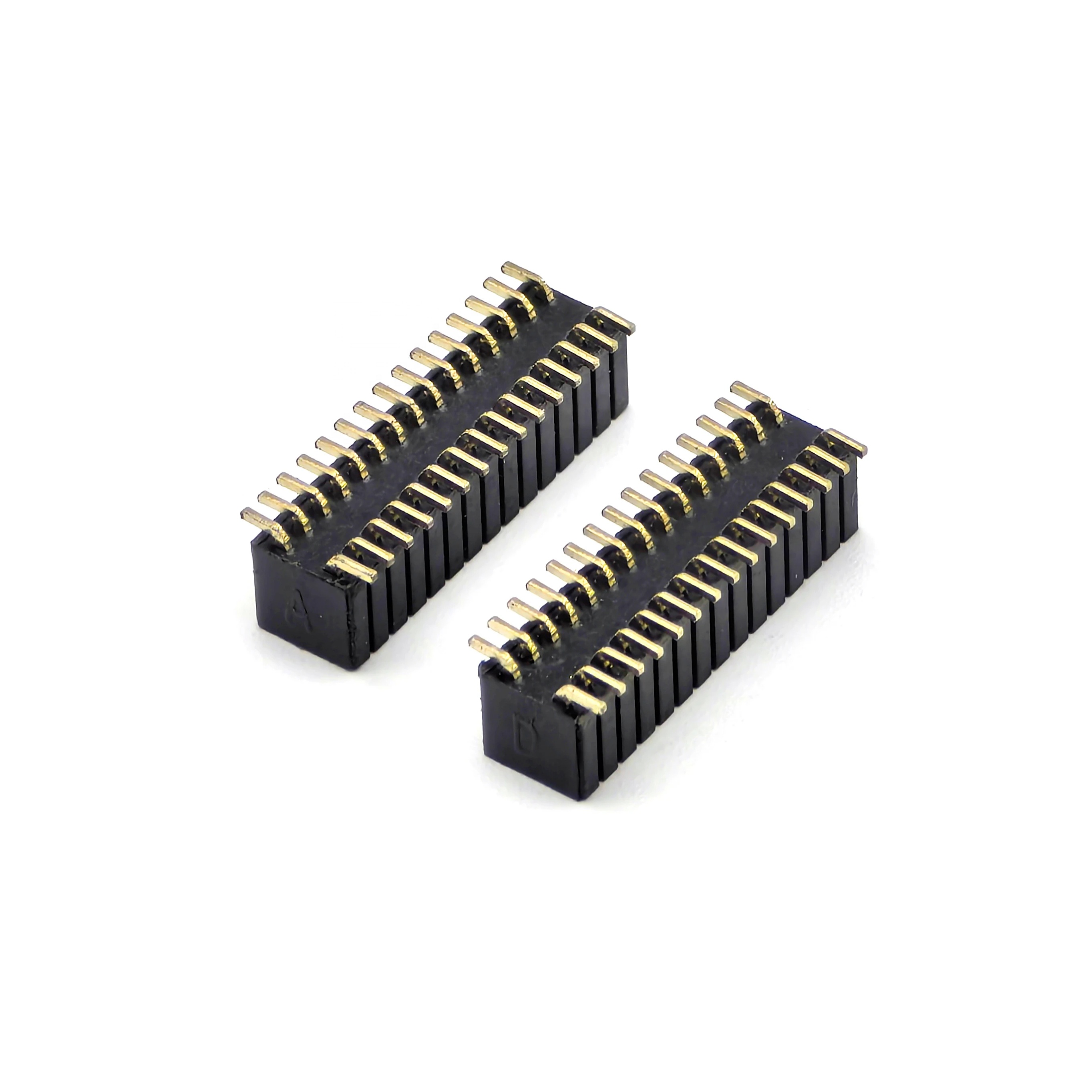

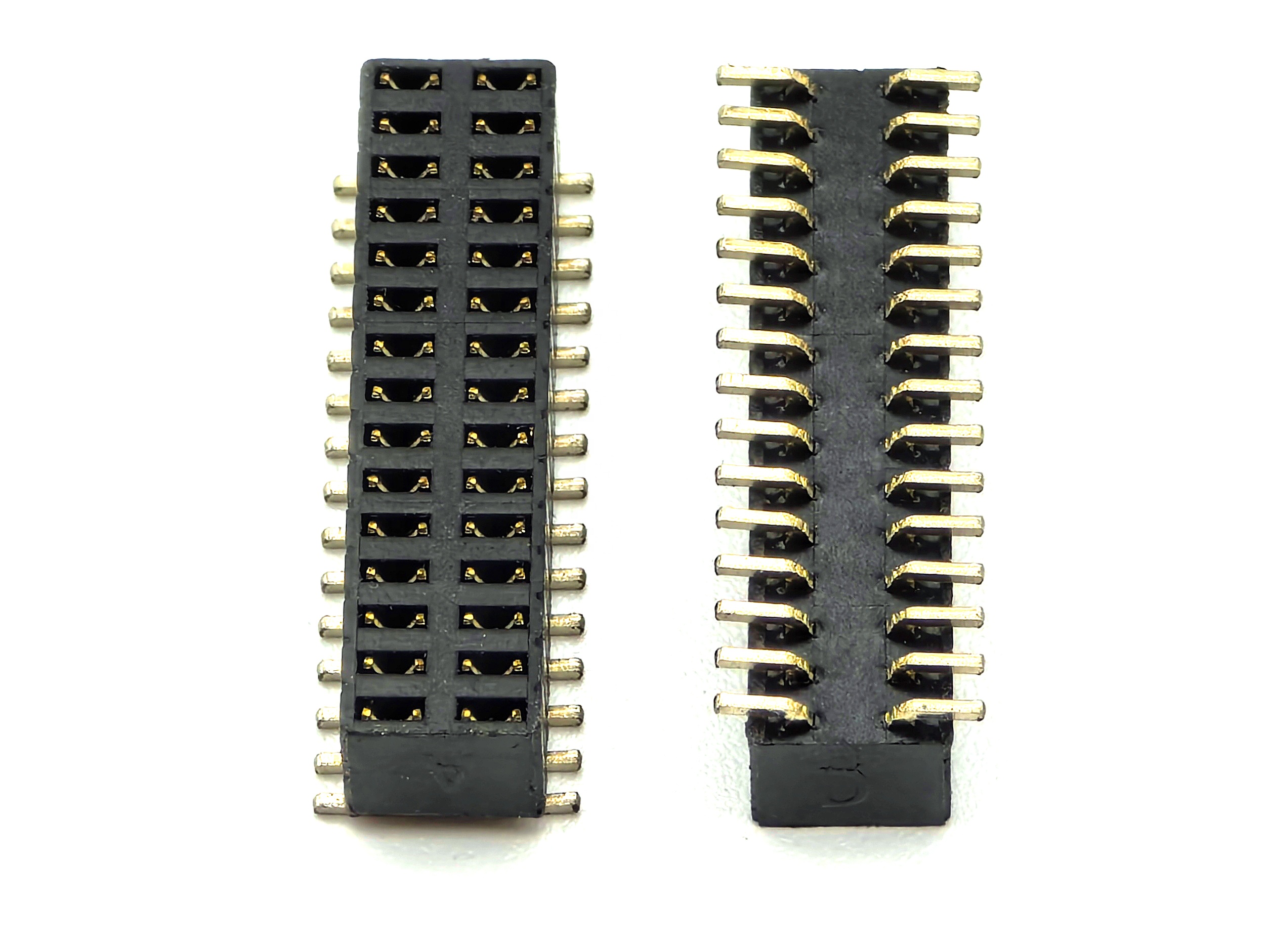

1.27mm*2.54mm Pitch Female Header Connector Dual Row SMT H4.6mm 2*15P
