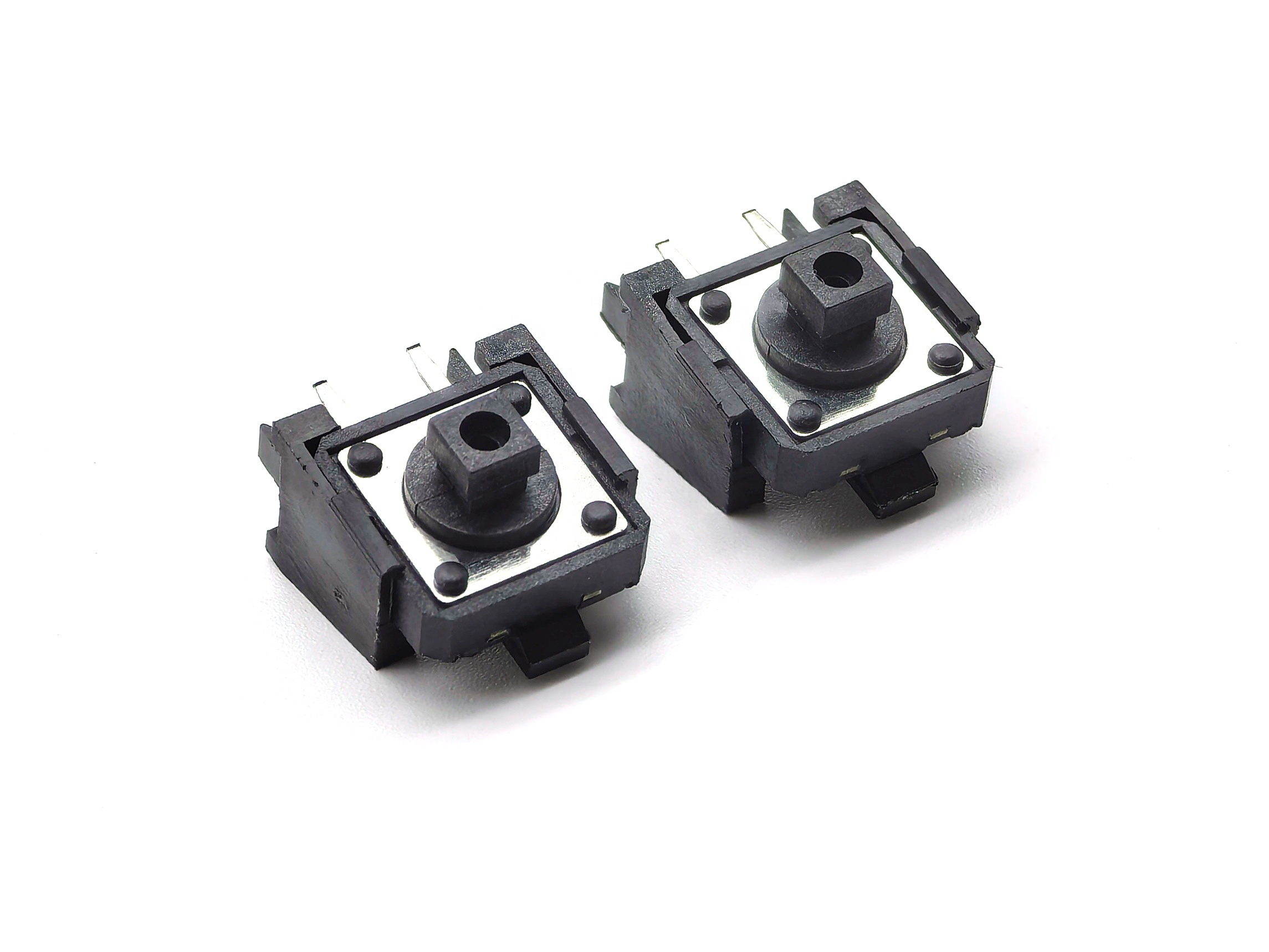

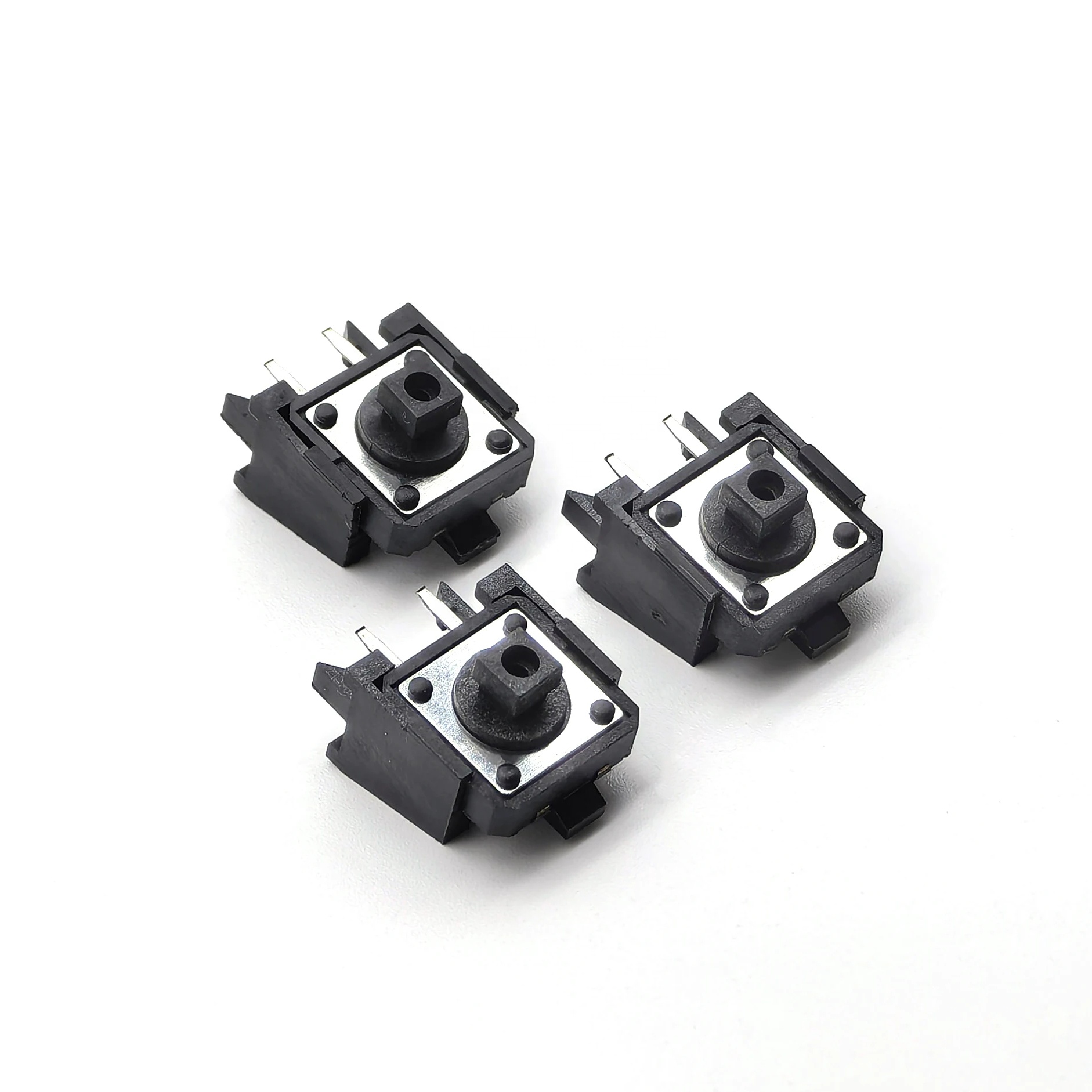

TACT SWITCH 12X12mm 4P Right Angle DIP H5mm Black Handle

2 week ago

1 0

Shenzhen Yangzhan Electronics Co., Ltd.

 6 month year

Product details

Engineered for precise user interface applications, the YZTECH 12×12mm tactile button switch delivers reliable performance through its 4-pin dual-row right angle DIP configuration. This tactile push button features a rectangular design with bending plug termination for secure PCB integration, offering electrical ratings of 50mA/250V and 0.4VA power capacity. The component provides a clearly defined tactile response with an actuation force range of 100-350 grams, creating optimal user feedback that prevents accidental triggering while ensuring comfortable operation. Its standardized footprint makes this tactile button compatible with various panel layouts and PCB designs.

Built for mechanical endurance, the tactile switch demonstrates impressive longevity through optimized internal construction.With insulation resistance exceeding 100MΩ, it maintains excellent signal integrity while preventing current leakage across diverse operating conditions. The component remains fully functional throughout a temperature range of -30℃ to +70℃,accommodating both commercial and industrial applications. Despite its compact dimensions, the switch possesses a substantial 260g weight, reflecting its robust internal mechanism and durable housing engineered to withstand repeated actuations throughout its service life.

Ideal for integration across industrial control systems, automotive electronics, medical devices, and consumer appliances, this tactile push button switch delivers consistent performance in space-constrained applications. The right-angle DIP configuration enables efficient PCB space utilization while facilitating straightforward installation processes.Packaged in protective bags to prevent damage during storage and transportation, these tactile button components arrive ready for automated assembly integration.By incorporating this YZTECH switch, designers enhance human-machine interface reliability while achieving optimized manufacturing efficiency for global market applications.

TACT SWITCH 12X12mm 4P Right Angle DIP H5mm Black Handle
