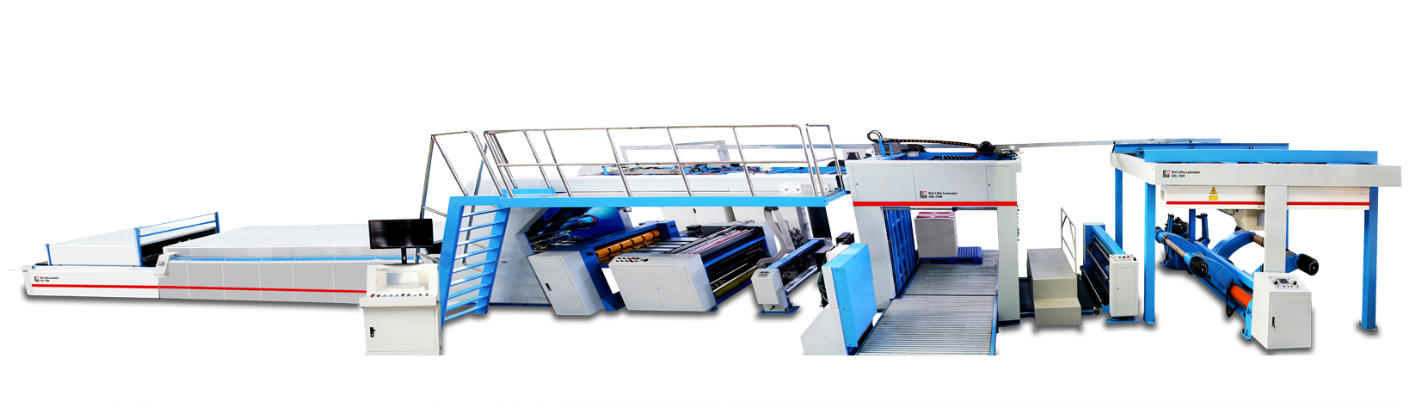

Technical parameter:
|
Model |
1450 |
1650 |
|
Max width |
1450mm |
1650mm |
|
Min width |
450mm |
500mm |
|
Max paper size |
1450*1450mm |
1650*1650mm |
|
Min paper size |
450*450mm |
500*500mm |
|
Laminating accuracy |
±1mm |
±1mm |
|
Max line speed |
150m/min |
150m/min |
|
cross cutting accuracy |
±1mm |
±1mm |
|
Max collection speed |
12000pcs/h(E flute) 10000pcs/h(B flute) |
12000pcs/h(E flute) 10000pcs/h(B flute) |
|
Max collection height |
1800mm(includes pallet) |
1800mm(includes pallet) |

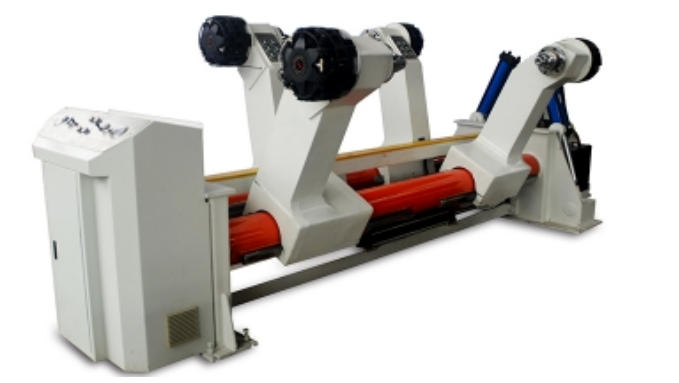

1. Hydraulic mill roll stand:
The maximum paper roll diameter: 1500mm
The maximum paper roll weight: 4500kg
Strong design, full hydraulic driver, ensure stable and reliable work
Use the expansion chip to prevent damage to the paper core
Pneumatic multi -point brake control paper roll tension is constant
Multi -point brakes

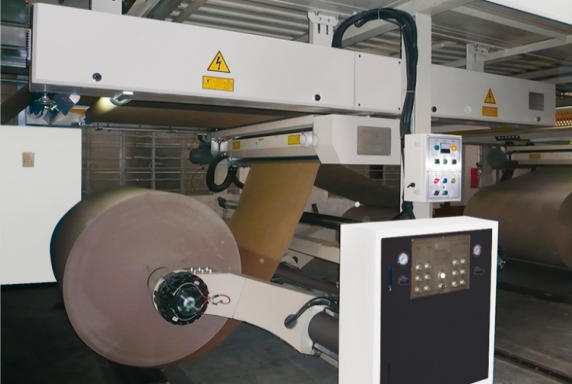

2. Automatic splicer machine:
Maximum paper join width: 1450mm/1650mm
Maximum rolling paper diameter: 1500mm
Minimum resistance: 3n/mm
Scope of tension control: 10-100kgf
Electrical control part, main control PLC control, low failure rate, high machine stability
3. Corrugated traction system
Swing roller can automatically adjust the tension of corrugated
The gap between the pressure roller is free to adjust, suitable for different types of corrugated
Driven from the frequency reduction reducer.
Point control the conveying corrugated for convenience to wear paper.
4. Underground or ground conveyor
It is convenient for the paper head to transport when wearing paper
There are belt running partial devices on both sides of the dynamic roller.
5. Bottom sheet aligner system
Adopt a high -precision aligner system to ensure the fit accuracy
6. Corrugated traction glue machine
Use a circulating glue system to reduce glue loss, stabilize glue adhesion effect
Can use white glue or starch glue
Gluing roller: stainless steel material, dynamic balance correction, surface grinding treatment
7. Servo sheeter
Synchronous servo cutting, color marking detection, positioning and tailoring
Imported servo system
Imported spiral blade
8. Automatic flute laminator
The highest line speed 150m/min
High speed laminating, corrugated does not require secondary positioning
Servo positioning to ensure high accuracy
None stop feeding
None stop for pre-stacking
Intelligent design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).
Adopts top sheet aligner system to ensure side accuracy. Feeding mode is overlap type to avoid paper jam.
9. Automatic flip flop stacker
Easily handle 10000-12000 sheets/hour high-speed lamination;
The color surface is free of contact throughout the whole process, and the color surface is truly non-destructive;
The cardboard is stacked in the center to the center of the tray, and the paper stack moves more stably;
The paper collecting part of the small stack can be moved out laterally, which is convenient for laminating, pressing and transporting;
Automatic stacking, automatic flipping, automatic collection, without manual intervention;
Forward and reverse stacking to prevent cardboard warping;
The stacking is neat and the competitiveness of the enterprise is improved;
Reduce labor and reduce labor intensity;
Single-pallet intelligent multi-stack stacking to reduce site occupation;
The large stacks are automatically unstacked, and the empty pallets are automatically placed.
