Features:
l The specially made pincers can hold the edge of the upper to prevent the upper from shifting when forming.

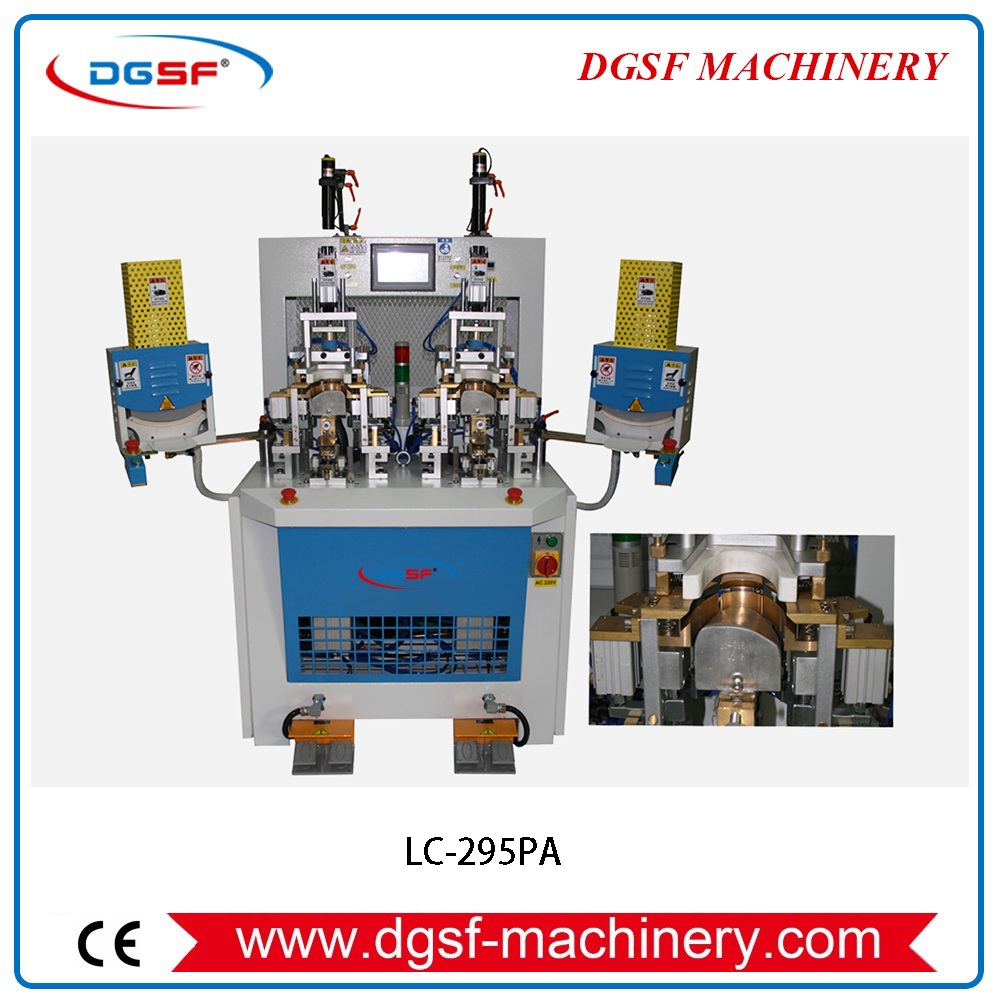

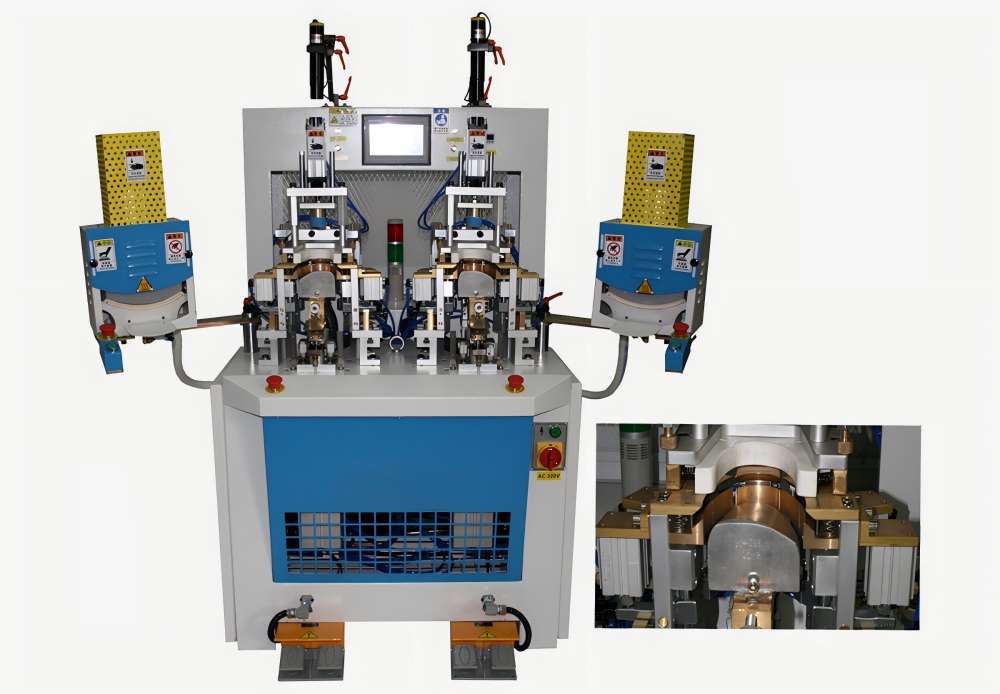

l LC-295PA has a different working mode. The molds and Teflon bands move up while the pincers stay still to hold the edge of the upper. When the molds move up, the side of the upper will be stretched completely without any wrinkles or bubbles. The forming result is much better than the traditional model.
l Equipped with PLC and touch screen for easier operation.
l Suitable for forming of toe made by different materials.
l Top and bottom hot molds can heat and soften the upper simultaneously to ensure a perfect softening result.
l The use of Teflon and pincers in cold molds allows machine to work on uppers with different thickness while keep a perfecting forming result.
l Molds can be customized according to customer's lasts for better forming precision.
l Hot stations are equipped with a steaming system that makes the upper more flexible and lustrous.
l Equipped with environment-friendly and high-speed cooling system with extreme cooling temperature of up to -20℃.
l After forming, the lining, glue sheet and upper are closely jointed without wrinkle, distortion, nor bubble.

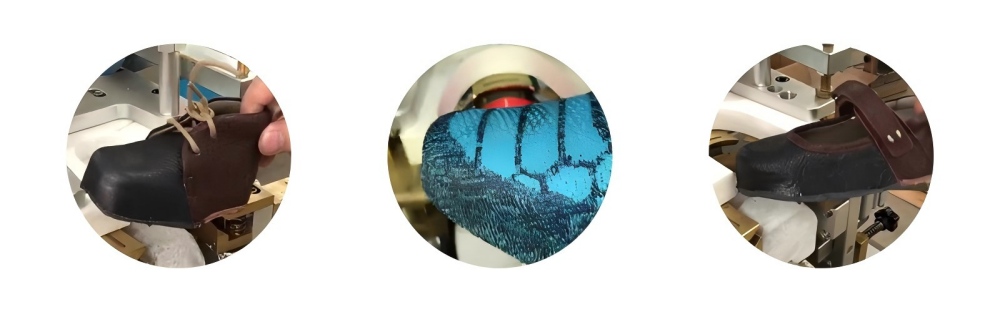

Better molding result and fewer wrinkles with mold moving up while pincers holding and stretch the edge of the upper
|
Dimension |
1540*1060*1820mm |
|
Power |
2.7kW |
|
Voltage |
220V/50Hz |
|
Net weight |
450KG |
|
Gross weight |
500KG |
